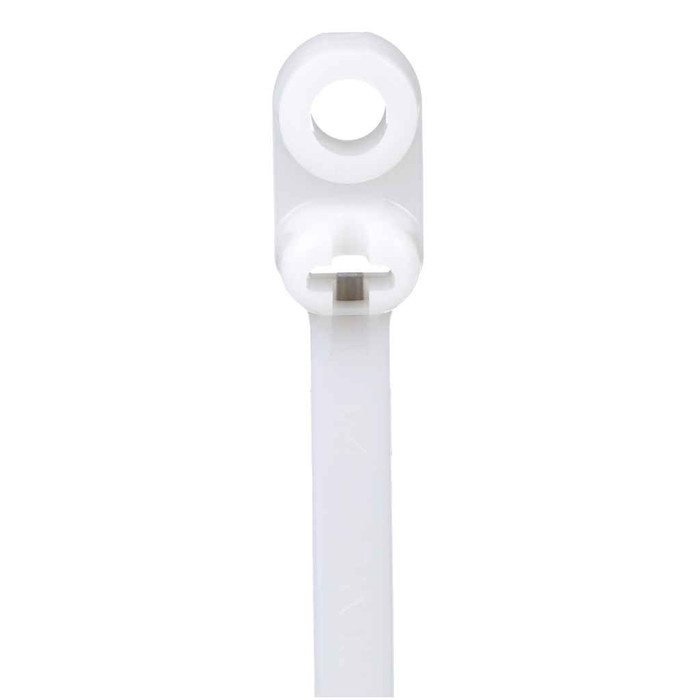

Panduit Dome-Top� Locking Clamp Barb Tie PA6.6 M5 8.5" 50lb Tensile Strength Cable Management System

Panduit Dome-Top� Locking Clamp Barb Tie PA6.6 M5 8.5" 50lb Tensile Strength Cable Management System

Professional Cable Bundle Securing & Management Solution

The Panduit Dome-Top� Locking Clamp Barb Tie delivers reliable cable bundle management with 50lb tensile strength and durable PA6.6 nylon construction. This professional-grade tie features M5 mounting capability and 8.5" overall length, designed to secure cable bundles to control panels, walls, or ceilings with dependable locking clamp performance for indoor applications.

Professional Features & Benefits

• 50lb Tensile Strength: Provides secure holding power for demanding cable management applications with reliable long-term performance.
• PA6.6 Nylon Construction: Delivers exceptional durability and chemical resistance for professional installations in varied environments.
• 8.5" Overall Length: Offers versatile sizing to accommodate cable bundles from 0.06" to 2" diameter with optimal reach and flexibility.
• M5 Mounting System: Features precise 0.2" mounting hole diameter for secure attachment to panels, walls, and ceiling surfaces.
• Wide Temperature Range: Operates reliably from -76�F to 185�F (-60�C to 85�C) for diverse environmental conditions.
• UL Listed Compliance: Meets UL 62275 standards (Type 2, 21) and UL Listed (File #E56854) for professional installation confidence.
• Natural Color Finish: Provides clean, professional appearance that blends with most installation environments.

Technical Specifications

• Any Reason Not To Sell: N
• Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Arra Compliant: Y
• Body Thickness In : 0.052
• Body Thickness Mm : 1.3
• Body Width In : 0.185
• Body Width Mm : 4.7
• California Pro65 Cancer: No
• Country Of Origin: Costa Rica
• Ean: 74983523146
• Environment: Indoor
• For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
• Gtin Carton: 5.0075E+13
• Gtin Package: 74983523146
• Hazardous Material Flag: N
• Lead Content Indicator: N
• Maximum Bundle Diameter In : 2
• Maximum Bundle Diameter Mm : 51
• Maximum Operating Temperature C : 85
• Maximum Operating Temperature F : 185
• Mercury Content Indicator: N
• Min Order Qty: 1,000.00
• Min Order Uom: Piece
• Minimum Bundle Diameter In : 0.06
• Minimum Bundle Diameter Mm : 1.5
• Minimum Installation Temperature C : -20
• Minimum Installation Temperature F : -4
• Minimum Loop Tensile Strength Lb : 50
• Minimum Loop Tensile Strength N : 222
• Minimum Operating Temperature C : -60
• Minimum Operating Temperature F : -76
• Mounting Hole Diameter In : 0.2
• Mounting Hole Diameter Mm : 5.1
• Mounting Hole Width In : 0.4
• Mounting Hole Width Mm : 10.2
• Overall Length In : 8.5
• Overall Length Mm : 216
• Pallet Quantity: 168,000
• Pallet Volume: 53.880653
• Pallet Weight: 740.7456
• Product Color: Natural
• Product Material: Nylon 6.6
• Product Segment: IEI
• Product Type: Locking Clamp Tie
• Reach Status: N
• Restricted Use Of Hazardous Substances: N
• Rohs Compliant: Compliant
• Screw Size: #10
• Standard Carton Volume Ft3: 0.3207
• Standard Carton Weight Pounds: 4.4092
• Standard Package Volume Ft3: 0.0321
• Standard Package Weight Pounds: 0.4409
• Std Carton Height In: 6.25
• Std Carton Height Mm: 158.75
• Std Carton Length In: 10.65
• Std Carton Length Mm: 270.51
• Std Carton Width In: 8.3
• Std Carton Width Mm: 210.82
• Std Ctn Qty: 1000
• Std Package Height In: 1.8
• Std Package Height Mm: 45.72
• Std Package Length In: 11.65
• Std Package Length Mm: 295.91
• Std Package Width In: 5.65
• Std Package Width Mm: 143.51
• Std Pkg Qty : 100
• Std Pkg Uom: Piece
• Sub Brand: Dome-Top�
• Uom Ea Pk: PK

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Control Panel Cable Management
• Industrial Equipment Installations
• Commercial Building Infrastructure
• Telecommunications Equipment Rooms
• Data Center Cable Organization
• Manufacturing Facility Wiring
• Professional Office Systems

Why Choose Panduit Quality?

Panduit Dome-Top� cable ties deliver proven reliability with UL Listed compliance and RoHS compliant construction. The durable PA6.6 nylon material and wide temperature operating range ensure long-term performance in demanding professional installations, backed by comprehensive standards compliance for installation confidence.
