Panduit BT1M-M Dome-Top® Barb ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.08
$0.08
Panduit BT1M-M Dome-Top® BT1M-M Barb Tie, PA6.6, 4"L, 18lb, PK1000

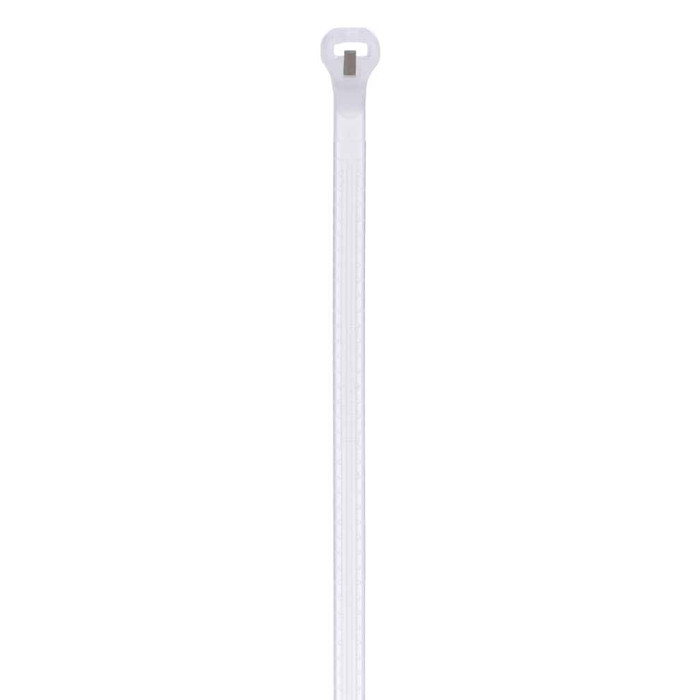

Panduit BT1M-M Dome-Top® Barb Cable Tie, 4" Length, Nylon 6.6, Natural

(No reviews yet) Write a Review

Model: BT1M-M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.08
$0.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit BT1M-M Dome-Top® Barb Cable Tie, 4" Length, Nylon 6.6, Natural

The Panduit BT1M-M Dome-Top® Barb Cable Tie is a 4" length tie built from Nylon 6.6 with an 18lb minimum loop tensile strength, for indoor bundling from 0.06" to 0.9" bundle diameter. The natural finish suits visible installs, and the Dome-Top® barb design improves grip. Backed by UL 62275, CSA-C22.2 No. 62275, and RoHS compliance.

Key Features

  • 4" Overall Length: Sized for versatile cable bundling in a compact profile.
  • Nylon 6.6 Construction: Durable, chemical-resistant material for long-lasting installations.
  • Dome-Top® Barb Design: Enhanced grip helps prevent slippage during installation and service.
  • 18lb Minimum Loop Tensile Strength: Secure bundling that keeps cables organized under stress.
  • Bundle Diameter Range: Accommodates 0.06" to 0.9" bundle diameters.
  • Wide Temperature Range: Rated -76°F to 185°F operating temperature.
  • Indoor Environment Rating: Engineered for panels, cabinets, and equipment racks.
  • Natural Color Finish: Clean appearance suitable for color-coding systems.

Certifications & Compliance

  • UL 62275
  • CSA-C22.2 No. 62275
  • RoHS Compliant

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • Body Thickness Mm : 0.9
  • Body Width Mm : 2.4
  • California Pro65 Cancer: No
  • Hazardous Material Flag: N
  • Lead Content Indicator: N
  • Maximum Bundle Diameter In : 0.9
  • Maximum Bundle Diameter Mm : 23
  • Maximum Operating Temperature C : 85
  • Maximum Operating Temperature F : 185
  • Mercury Content Indicator: N
  • Minimum Bundle Diameter Mm : 1.5
  • Minimum Installation Temperature C : -20
  • Minimum Installation Temperature F : -4
  • Minimum Loop Tensile Strength Lb : 18
  • Minimum Loop Tensile Strength N : 80
  • Minimum Operating Temperature C : -60
  • Minimum Operating Temperature F : -76
  • Overall Length In : 4
  • Overall Length Mm : 102
  • Product Segment: IEI
  • Reach Status: N
  • Restricted Use Of Hazardous Substances: N
  • Std Carton Length In: 22
  • Std Package Width In: 6.2
  • Sub Brand: Dome-Top®
  • Uom Ea Pk: PK

Typical Applications

  • Electrical Panel Cable Management
  • Data Center Wire Organization
  • Industrial Control Cabinet Bundling
  • Telecommunications Equipment Installation
  • Commercial Building Wire Management

Why Panduit?

Panduit Dome-Top® cable ties deliver professional-grade reliability, with UL 62275, CSA-C22.2 No. 62275, and RoHS compliance behind every tie. Nylon 6.6 construction and a -76°F to 185°F operating range ensure consistent performance in demanding indoor installations.

Manufacturer Resources

Product Specs

Any Reason Not to Sell:
N
Arra Compliant:
Y
Body Thickness In:
0.036
Body Thickness Mm:
0.9
Body Width In:
0.095
Body Width Mm:
2.4
California Pro65 Cancer:
No
Ean:
74983413171
Environment:
Indoor
For Use With:
GTS-E, GS2B-E, PTS, PPTS, STS2
GTIN Carton:
5.0075E+13
GTIN Package:
74983413171
Hazardous Material Flag:
N
Lead Content Indicator:
N
Material Description:
Nylon 6.6
Maximum Bundle Diameter In:
0.9
Maximum Bundle Diameter Mm:
23
Maximum Operating Temperature (°C):
85
Maximum Operating Temperature (°F):
185
Mercury Content Indicator:
N
Military Cross Reference Number:
MS3367-4-9
Min Order Qty:
10,000.00
Min. Order UOM:
Piece
Minimum Bundle Diameter In:
0.06
Minimum Bundle Diameter Mm:
1.5
Minimum Installation Temperature C:
-20
Minimum Installation Temperature F:
-4
Minimum Loop Tensile Strength Lb:
18
Minimum Loop Tensile Strength N:
80
Minimum Operating Temperature (°C):
-60
Minimum Operating Temperature (°F):
-76
Overall Length (In.):
4
Overall Length (mm):
102
Pallet Quantity:
600,000
Pallet Volume:
37.611609
Pallet Weight:
396.84
Product Color:
Natural
Product Material:
Nylon 6.6
Product Segment:
IEI
Product Type:
Cable Tie
REACH Status:
N
Restricted Use of Hazardous Substances:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
3.1343
Standard Carton Weight Pounds:
33.07
Standard Package Volume Ft3:
0.0627
Standard Package Weight Pounds:
0.6614
Std Carton Height In:
16.7
Std Carton Height MM:
424.18
Std Carton Length In:
22
Std Carton Length MM:
558.8
Std Carton Width In:
14.65
Std Carton Width MM:
372.11
Std Ctn Qty:
50000
Std Package Height In:
1.65
Std Package Height MM:
41.91
Std Package Length In:
12.3
Std Package Length MM:
312.42
Std Package Width In:
6.2
Std Package Width MM:
157.48
Std. Pkg. Qty.:
1000
Std. Pkg. UOM:
Piece
Sub Brand:
Dome-Top®
UOM EA PK:
PK
Department:
Electrical
Product Group:
Cable Management & Identification
Product Subgroup:
Cable Ties & Mounts

Panduit BT1M-M – Frequently Asked Questions

1) Is an 18 lb cable tie strong enough for control panel wiring?
For panel and cabinet work it is. The BT1M-M carries an 18 lb (80 N) minimum loop tensile strength, which is the light-duty class used for small signal and control bundles, cord sets, and harnessing inside enclosures. For heavier power feeders or anything carrying mechanical load, step up to a heavier tensile tie rather than doubling these.
2) Can I use Panduit BT1M-M ties outdoors or in direct sunlight?
No. The BT1M-M is rated for indoor use, and the natural (undyed) Nylon 6.6 has no UV stabilizer. For outdoor runs, rooftop conduit, or anything sun-exposed, use a weather-resistant black UV-stabilized tie instead.
3) How cold can it be when I install these ties, and how cold can they run afterward?
Two different numbers, and people mix them up. Installation temperature bottoms out at -4 F (-20 C), because nylon gets brittle and the tie can crack as you cinch it. Once installed, the service range runs -76 F to 185 F (-60 C to 85 C). So a tie installed warm will survive a freezer or cold-room environment it could not have been installed in.
4) Does the BT1M-M meet a military spec for cable ties?
Panduit cross-references the BT1M-M to MS3367-4-9. That is the number to quote on a government or defense submittal. The part is also flagged ARRA compliant and RoHS compliant.
5) Which Panduit tools install the BT1M-M barb tie?
It is listed for use with Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 tools. Those cut the tail flush, which matters in a panel where a sharp protruding tail can nick insulation or a hand during service.
6) What does the Dome-Top barb design do differently from a standard pawl tie?
The Dome-Top barb on the BT1M-M uses a metal-free nylon barb locking head rather than a steel pawl. It bites the strap to resist slip under load and back-off during service, and because there is no metal insert the whole tie is one Nylon 6.6 part, which keeps it clean for electronics and panel work.
7) Is the natural color the same as white, and can I use these for color coding?
Natural is undyed nylon, a translucent off-white rather than a pigmented white. It takes well to color-coded systems because it reads as neutral against colored ties, and it stays unobtrusive on visible runs. Keep in mind natural nylon has no UV additive, so it belongs indoors.
8) Where is the Panduit BT1M-M manufactured?
Country of origin on the BT1M-M is Costa Rica. It is also flagged ARRA compliant, which matters on federally funded projects with domestic preference language.
