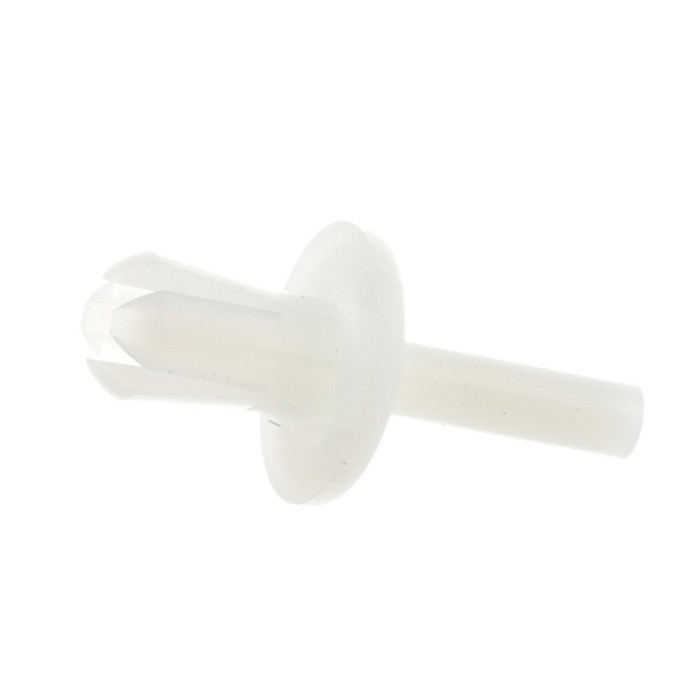

Panduit Panduct® NR1-M Nylon Rivet, PA 6.6
The Panduit Panduct® NR1-M Nylon Rivet is a PA 6.6 (Nylon 6.6) rivet engineered specifically for use with the TNR rivet tool, giving electrical contractors and panel builders a fast, repeatable way to fasten Panduct wire duct and related components. Independent testing shows a mean pull-off force of 90 lbs on PVC duct and 70 lbs on Type NE/Type NNC duct, along with a mean shear force of 139 lbs on PVC duct and 126 lbs on Type NE/Type NNC duct. Supplied 1000 pieces per package, this rivet is RoHS Compliant and manufactured in the United States, making it a dependable choice for high-volume wire duct, panel, and enclosure assembly work.
Key Features
- Durable Construction: Molded from PA 6.6 (Nylon 6.6) engineering-grade material for consistent strength, dimensional stability, and reliable long-term fastening performance.
- Tool Compatibility: Purpose-built for use with the Panduit TNR Rivet Tool, enabling fast, consistent, one-handed installation on the job site or in panel-shop production.
- Pull-Off Force: Delivers a mean pull-off force of 90 lbs when installed in PVC duct and 70 lbs when installed in Type NE/Type NNC duct, supporting secure duct-to-panel retention.
- Shear Force: Provides a mean shear force of 139 lbs on PVC duct and 126 lbs on Type NE/Type NNC duct, helping fastened assemblies resist lateral loading.
- Bulk Packaging: Supplied 1000 pieces per package, reducing per-unit handling time on high-volume wire duct and panel assembly projects.
- Handling Note: This is a hygroscopic material that absorbs ambient moisture; Panduit recommends keeping it sealed in its original packaging until ready for use to preserve fit and performance.
Certifications & Compliance
- RoHS Compliant
- ARRA Compliant
Technical Specifications
- Material: PA 6.6 (Nylon 6.6)
- For Use With: TNR Rivet Tool
- REACH Status: N
- Mercury Content Indicator: N
- ARRA Compliant: Y
- Hazardous Material Flag: N
- Country of Origin: United States
- Std. Pkg. Qty.: 1000 Piece
Typical Applications
- Wire and Cable Duct Assembly
- Panel and Enclosure Fastening
- Commercial and Industrial Electrical Installations
- Data Center and Structured Cabling Systems
- Renovation and New Construction Panel Builds
Why Panduit?
Panduit engineers the Panduct® NR1-M rivet from PA 6.6 nylon to deliver consistent, tested pull-off and shear strength across PVC and Type NE/Type NNC duct applications. Backed by RoHS Compliant, U.S.-manufactured construction and purpose-built compatibility with the TNR rivet tool, this rivet gives electrical professionals a repeatable, code-conscious fastening solution for wire duct, panel, and enclosure assembly work where consistent installation quality matters.
Manufacturer Resources
Product Specs
- Standard Package Volume Ft3:
- 0.0811
- Standard Package Weight Pounds:
- 0.9000
- REACH Status:
- N
- Std. Pkg. UOM:
- Piece
- Std Carton Length In:
- 11
- Std Carton Height In:
- 7.15
- Std Package Length In:
- 9.05
- Country Of Origin:
- United States
- Standard Carton Volume Ft3:
- 0.4055
- Std Package Length MM:
- 229.87
- Mercury Content Indicator:
- N
- Std Carton Width In:
- 9.05
- Sub Brand:
- Panduct®
- Std Ctn Qty:
- 5000
- Product Segment:
- IEI
- Product Type:
- Rivet
- GTIN Carton:
- 50074983252218
- Std Carton Height MM:
- 181.61
- Std Package Width MM:
- 215.9
- Pallet Quantity:
- 480,000
- Std Package Height In:
- 2.05
- Standard Carton Weight Pounds:
- 4.5000
- Std Package Height MM:
- 52.07
- Min Order Qty:
- 5,000.0000
- RoHS Compliant:
- Compliant
- GTIN Package:
- 00074983252213
- Min. Order UOM:
- Piece
- Arra Compliant:
- Y
- Std. Pkg. Qty.:
- 1000
- For Use With:
- TNR Rivet Tool
- Std Carton Length MM:
- 279.4
- Std Carton Width MM:
- 229.87
- UOM EA PK:
- PK
- Pallet Volume:
- 38.927778
- Std Package Width In:
- 8.5
- Hazardous Material Flag:
- N
- Any Reason Not to Sell:
- N
- Pallet Weight:
- 432.0000
- Product Material:
- Nylon 6.6
- Product Color:
- Natural
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Pack size (unit):
- 1000
- Product Subgroup:
- Electrical Fasteners
- Application:
- Nylon Rivet
Panduit NR1-M – Frequently Asked Questions
1) What tool do I need to install the Panduit NR1-M nylon rivet?
The NR1-M is built to be set with the Panduit TNR rivet tool. It is not a hand-press or pop-rivet-gun part, so if your panel shop doesn't already have a TNR on the bench, order one along with the rivets or you won't be able to install them consistently.
2) How many Panduit NR1-M rivets come in a package, and is there a minimum order?
Rivets ship 1000 pieces to a package, with 5000 pieces to a standard carton. The minimum order quantity is 5,000 pieces, which is one full carton. For larger panel-build programs, a pallet runs 480,000 pieces.
3) Do Panduit NR1-M rivets meet RoHS and Buy American requirements for a federally funded job?
The NR1-M is RoHS Compliant and ARRA Compliant, and it is manufactured in the United States. It also carries no hazardous material flag and no mercury content, which keeps the submittal simple on government, healthcare, and education work.
4) Why do my nylon rivets swell or fit tight if they sit open on the shelf?
PA 6.6 nylon is hygroscopic, meaning it pulls moisture out of the air, and that changes the fit and the setting behavior of the rivet. Panduit's guidance on the NR1-M is to leave it sealed in the original bag until you're ready to run it. On a long panel build, pull one 1000-piece bag at a time rather than opening the whole carton.
5) Should I use nylon rivets or screws to mount Panduct wire duct in a control panel?
Rivets like the NR1-M are the production choice: one-handed setting with the TNR tool, no pilot tapping, no loose hardware behind the duct, and nothing metallic to back out and short against conductors. Screws still make sense where you expect to remove and re-mount the duct repeatedly, since a set nylon rivet is a one-time fastener. For high-volume panel and enclosure assembly, the rivet wins on cycle time.
6) What color are Panduit NR1-M rivets?
Natural, which is the undyed off-white of the PA 6.6 nylon. Inside a panel behind duct covers that's rarely a concern, but if you're fastening exposed white or gray duct on a finished wall, know that the head will read as a light natural tone rather than a color match.
