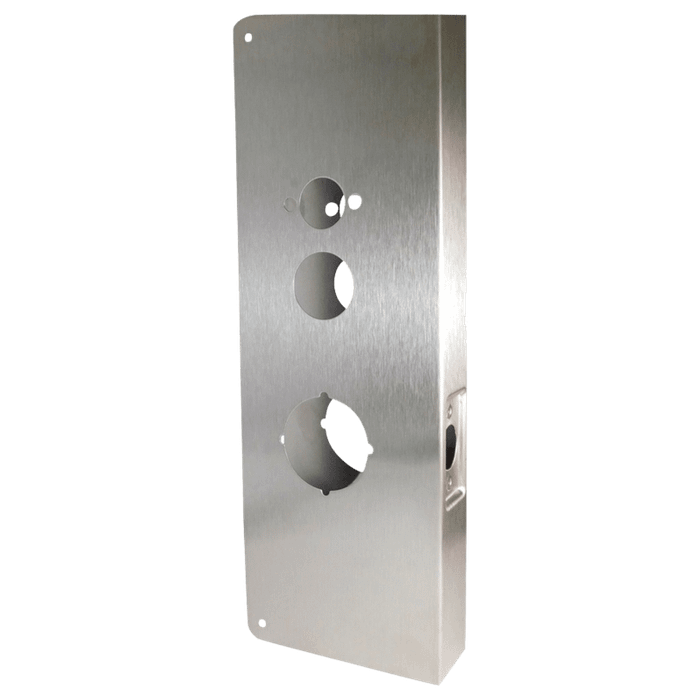

Don-Jo 15-CW Wrap Around Plate 5-1/8" x 15" for Simplex 1000 Series Electronic Locks

Don-Jo 15-CW Wrap Around Plate 5-1/8" x 15" for Simplex 1000 Series Electronic Locks

(No reviews yet) Write a Review

Model: 15-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.40
$15.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 15 CW Wrap Around Plate 5-1/8" x 15" for Simplex 1000 Series Electronic Locks

The Don-Jo 15 CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 15" tall, purpose-built to work with Simplex 1000 Series electronic locks. Constructed from 22-gauge (.032) steel, this wrap around provides a clean, professional finish while reinforcing the door face around the lock prep area. Designed for 1-3/4" doors with a 2-3/4" backset and a latch prep indent, it accommodates the hole configuration required for electronic lock installations.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 15" tall, providing full coverage around the lock prep area on commercial doors.
  • Electronic Lock Compatibility: Specifically designed to work with Simplex 1000 Series electronic locks, featuring the correct hole pattern for seamless integration.
  • Heavy-Gauge Construction: Manufactured from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Door & Backset Specifications: Engineered for 1-3/4" doors with a 2-3/4" backset and latch prep indent for accurate, code-compliant installation.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural aesthetics.
  • Commercial-Grade Application: Rated and designed for commercial use, making it suitable for high-traffic institutional and business environments.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 15 CW?

Don-Jo wrap around plates are engineered to deliver professional-grade door reinforcement using 22-gauge (.032) steel construction, ensuring durability in demanding commercial environments. The 15 CW is purpose-matched to the Simplex 1000 Series, eliminating guesswork and ensuring a precise, finished installation every time. For contractors and facility managers seeking reliable, code-appropriate door trim accessories, Don-Jo delivers consistent quality backed by decades of commercial hardware expertise.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
15 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 15-S-CW – Frequently Asked Questions

1) Will the Don-Jo 15-CW wrap around plate fit a Simplex 1000 Series pushbutton lock?
That is exactly what the 15-CW is cut for. The 5-1/8 x 15 inch plate carries the hole configuration for Simplex 1000 Series electronic locks, including the latch prep indent, so the pushbutton chassis and latch pass through without field drilling. It reinforces and covers the door face around the lock prep, which is what you want on a door that has been previously bored or chewed up by an older lockset.
2) What door thickness and backset does the Don-Jo 15 CW wrap around require?
It is built for 1-3/4 inch doors with a 2-3/4 inch backset. Both matter: a wrap around folds over the edge of the door, so a 1-3/8 inch door leaves the plate loose and standing proud, and a 2-3/8 inch backset puts the lock hole off center in the plate. Commercial openings are almost always 1-3/4 inch with a 2-3/4 backset, which is the case this plate is made for.
3) Can I use a wrap around plate to cover damage around a Simplex lock instead of replacing the door?
That is the usual reason to buy one. The 15 CW wraps the door face around the lock prep area and reinforces it, so splits, oversized bores, and scarring from a previous lockset disappear under a 22-gauge (.032) steel plate. It does not repair structural damage to the door core, but for face damage around a Simplex 1000 prep it is the fix that keeps the door in service.
4) Will a wrap around plate for a Simplex 1000 work under a standard cylindrical lever lock?
Not reliably. The 15 CW hole pattern is cut for Simplex 1000 Series electronic locks, which is a taller prep than a plain 2-1/8 inch cylindrical bore. On a lever lockset the extra openings in the plate would be left exposed. For a standard bored lever you want a wrap around cut for a cylindrical prep at the same 2-3/4 inch backset, not this one.
5) Do I need one wrap around plate per door or one for each side?
One per door leaf. The 15 CW is sold individually and, being a wrap around, it folds over the door edge and covers the lock area on the face. Count your leaves, not your openings: a pair of doors with Simplex 1000 locks on both leaves needs two.
6) How much of the door does a 5-1/8 by 15 inch wrap around cover?
The 15 CW measures 5-1/8 inches wide by 15 inches tall, so it runs well above and below the Simplex chassis and out to roughly the width of a typical lock stile. On a narrow stile aluminum door there may not be 5-1/8 inches of face to land it on, so measure the stile before ordering.
7) What finishes does the Don-Jo 15 CW wrap around come in?
Three: 10B oil rubbed bronze (613), PB polished brass (605), and S satin stainless (630). If you are matching a fleet of doors, 630 satin stainless is the one that lines up with most commercial lever and exit hardware, 605 with older brass trim, and 613 with dark bronze packages.
8) Is 22-gauge steel heavy enough for a school or hospital corridor door?
22-gauge (.032) steel is the standard wrap around weight and the 15 CW is a commercial-grade part, used on office, education, healthcare, retail, government, multi-tenant, and industrial openings. It is trim and reinforcement, not a security plate: it stiffens and covers the lock prep and takes cart and traffic abuse on the face, but it is not rated to resist forced entry.
