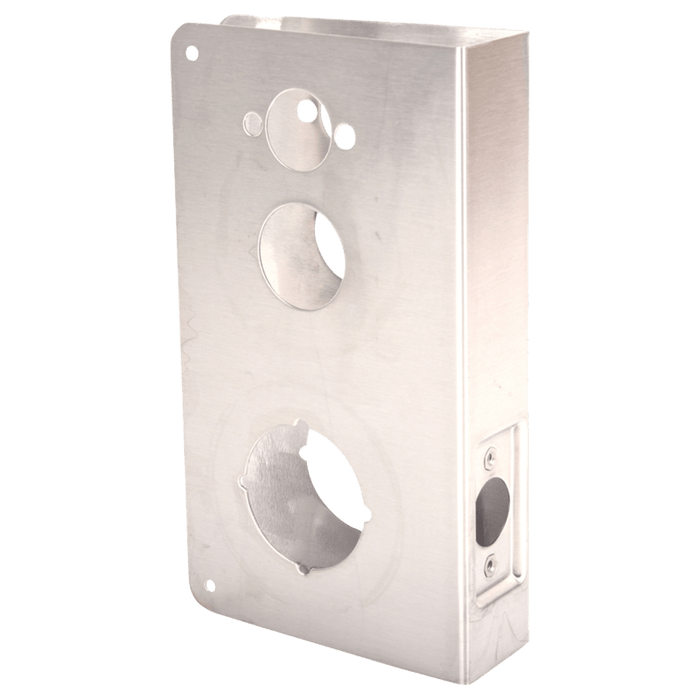

Don-Jo 9-CW Wrap Around Plate 5" x 9" for Electronic Lock — Simplex 1000 Series Compatible

Don-Jo 9-CW Wrap Around Plate 5" x 9" for Electronic Lock — Simplex 1000 Series Compatible

(No reviews yet) Write a Review

Model: 9-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$38.16
$32.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 9-CW Wrap Around Plate 5" x 9" for Electronic Lock — Simplex 1000 Series Compatible

The Don-Jo 9-CW is a commercial-grade wrap around plate measuring 5" wide by 9" tall, engineered specifically for use with electronic lock applications including the Simplex 1000 Series. Constructed from 22-gauge (.032) steel, this wrap around provides a clean, professional finish while reinforcing the door face around the lock prep area. Designed for 1-3/4" doors with a 2-3/4" backset and a latch prep indent, it is available in multiple finishes to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 5" wide by 9" tall, providing ample coverage around the electronic lock cutout for a finished, professional appearance.
  • Electronic Lock Compatibility: Designed with a hole configuration for electronic lock installations, including compatibility with the Simplex 1000 Series keypad lock.
  • Door & Backset Specifications: Engineered for 1-3/4" door thickness with a 2-3/4" backset and latch prep indent for precise, secure fitment.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable reinforcement of the door face in commercial applications.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to match a wide range of door hardware aesthetics.
  • Commercial-Grade Application: Rated for commercial use, making it suitable for high-traffic environments where durability and appearance are essential.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Certifications & Compliance

  • Commercial-Grade Product
  • Electronic Lock Compatible (Simplex 1000 Series)

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 9-CW?

Don-Jo wrap around plates are built to commercial standards, combining 22-gauge (.032) steel construction with a versatile finish selection to deliver both durability and aesthetic flexibility. The 9-CW is purpose-designed for electronic lock applications, ensuring a precise fit on 1-3/4" doors with a 2-3/4" backset — making it a reliable choice for professionals outfitting commercial facilities with Simplex 1000 Series or compatible electronic locking hardware.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Electronic:
Yes
Door Width:
1-3/4"
Product Model:
9 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 9-S-CW – Frequently Asked Questions

1) Will the Don-Jo 9-CW wrap around plate fit a Simplex 1000 Series keypad lock?
Yes. The 9-CW is punched for electronic lock installations and the hole configuration is made for the Simplex 1000 Series keypad lock. It wraps the door face around the lock prep so a chewed-up or oversized cutout is covered and reinforced. If your opening is a 1-3/4 inch door with a 2-3/4 inch backset, the plate lines up with the existing prep.
2) What door thickness and backset does the Don-Jo 9-CW wrap around require?
One combination only: 1-3/4 inch door thickness with a 2-3/4 inch backset, plus a latch prep indent. That is the standard commercial door thickness, so most hollow metal and commercial wood doors work. A 1-3/8 inch door, common on older interior openings, is not what this plate is formed for, and a 2-3/8 inch backset lock will not line up with the cutout.
3) How much of the door face does a 5 x 9 inch wrap around plate actually cover?
The 9-CW measures 5 x 9 inches, which gives coverage around the lock cutout of an electronic lock rather than just a small trim ring. That is the size to reach for when the old prep was larger than the new lock, when there are leftover holes from a previous cylindrical lockset, or when the face is dented around the lock. It reinforces the face at the same time it hides the damage.
4) Do I need a wrap around plate or a filler plate to cover an old lock cutout?
Different jobs. A filler plate blanks off a hole where no hardware is going back in. The Don-Jo 9-CW is a wrap around: it is punched for an electronic lock, so hardware still mounts through it while the plate covers and stiffens the surrounding face. If you are installing a Simplex 1000 Series keypad over a beat-up prep, the wrap around is the right part. If the opening is being retired and nothing is going back on it, a filler plate is what you want.
5) Will a wrap around plate work on a door that is not prepped for the electronic lock yet?
The 9-CW is formed with a latch prep indent and a hole pattern for an electronic lock at a 2-3/4 inch backset, so it goes over an existing prep rather than replacing the need for one. On a blank door you still have to bore the door for the lock at 2-3/4 inch backset before the plate has anything to line up with. On a door already prepped at that backset and 1-3/4 inches thick, it wraps straight over the face.
6) Is 22-gauge steel heavy enough for a wrap around plate on a high-traffic commercial door?
The 9-CW is fabricated from 22-gauge (.032) steel and is rated for commercial use. Wrap arounds are face reinforcement and cover, not a security plate, so the gauge is there to stiffen the door face around the lock prep and take daily abuse in schools, healthcare, retail, offices and multi-tenant residential. For a fleet of openings it holds up where a thin decorative escutcheon would dish or dent.
7) What finishes does the Don-Jo 9-CW wrap around come in?
Four to choose from: 10B oil rubbed bronze, AB antique brass, PB polished brass, and S satin stainless. Satin stainless is the one that blends with most commercial lever and exit hardware already hanging in an institutional building, and the brass options are there when you are matching older brass trim on the rest of the doors. Pick the finish that matches the lock going on the door, not the door itself.
8) Can I order the Don-Jo 9-CW as a single piece for one door?
Yes, it ships as a shelf pack of one, so a single door repair does not mean buying a box. Property managers doing one keypad conversion at a time can order per opening, and anyone standardizing a floor of doors just orders the count they need in a single finish.
