Don-Jo 5000 CW Wrap Around Plate 5-1/8" x 15" for Kaba 5000 Series Electronic Locks

Don-Jo 5000 CW Wrap Around Plate 5-1/8" x 15" for Kaba 5000 Series Electronic Locks

(No reviews yet) Write a Review

Model: 5000-S-CW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.40
$53.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 5000 CW Wrap Around Plate 5-1/8" x 15" for Kaba 5000 Series Electronic Locks

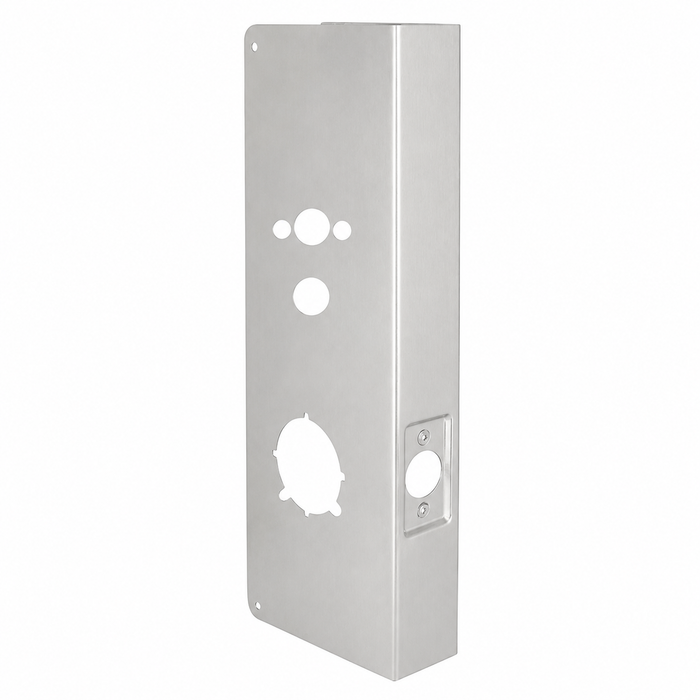

The Don-Jo 5000 CW Wrap Around is a commercial-grade door reinforcement plate engineered specifically for compatibility with Kaba 5000 Series electronic locks. Measuring 5-1/8" wide by 15" tall and featuring a 2-3/4" backset, this wrap around is designed for 1-3/4" door thickness and includes an electronic lock hole prep and latch prep indent for precise, clean installation. Constructed from 22-gauge (.032) steel and finished in Satin Stainless (630), it delivers lasting durability and a professional appearance in demanding commercial environments.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide x 15" tall, providing full coverage and reinforcement for the lock area on compatible doors.
  • Door & Backset Compatibility: Designed for 1-3/4" door thickness with a 2-3/4" backset to ensure proper alignment with Kaba 5000 Series electronic lock hardware.
  • Electronic Lock Hole Prep: Pre-cut hole configuration accommodates electronic lock installations, simplifying the upgrade or replacement process.
  • Latch Prep Indent: Integrated latch prep indent ensures accurate positioning and a clean, finished appearance at the latch point.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for robust door reinforcement suited to high-traffic commercial applications.
  • Satin Stainless Finish (630): Corrosion-resistant 630 satin stainless finish provides a professional aesthetic and long-term durability in commercial settings.
  • Kaba 5000 Series Compatibility: Specifically engineered to work with Kaba 5000 Series locks, ensuring a precise fit without modification.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 5000 CW?

Don-Jo wrap around plates are purpose-built for commercial door hardware applications, combining heavy 22-gauge (.032) steel construction with a corrosion-resistant 630 satin stainless finish. The 5000 CW is precisely engineered for Kaba 5000 Series electronic locks, delivering a reliable, professional-grade reinforcement solution for doors requiring electronic access control upgrades or replacements.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
5000 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 5000-S-CW – Frequently Asked Questions

1) Will the Don-Jo 5000 CW wrap around plate fit a Kaba 5000 Series electronic lock?
That's exactly what the 5000 CW is cut for. The plate carries an electronic lock hole prep matched to the Kaba 5000 Series along with a latch prep indent, so the lock body and latch drop in without field cutting. It's a 2-3/4 inch backset prep, so the existing lock prep in the door has to be 2-3/4 inch as well. If your door is bored 2-3/8 inch backset, this plate will not line up.
2) What door thickness does the Don-Jo 5000 CW wrap around plate work on?
1-3/4 inch doors only. A wrap around wraps the edge of the door, so the fold is sized to one thickness and won't sit flat on a 1-3/8 inch door. 1-3/4 inch is the standard commercial door thickness, so on most commercial openings this is the right one; on an older 1-3/8 inch interior door it isn't.
3) Can I use a wrap around plate to cover damage around an old lock prep on a commercial door?
Yes, that's the main reason these get bought. A wrap around wraps over the lock edge of the door and reinforces the whole lock area, covering torn or oversized prep from a previous lock. The catch with the 5000 CW is that its holes are cut for a Kaba 5000 Series electronic lock at a 2-3/4 inch backset, so it only hides damage on that specific prep. If you're covering damage under a different lock, you want a wrap around cut for that lock instead.
4) Do I need to drill the door when installing the Don-Jo 5000 CW wrap around?
Not for the lock openings. The plate comes with the electronic lock hole prep and the latch prep indent already formed, so it goes over an existing Kaba 5000 Series prep and the lock reinstalls through it. Plan on the plate adding 22-gauge (.032 inch) of steel between the lock and the door face, so any through-bolts or screws need to reach that much further.
5) Is the Don-Jo 5000 CW wrap around plate durable enough for a high traffic door?
It's built for commercial use: 22-gauge (.032 inch) steel with a 630 satin stainless finish. 630 is the standard commercial finish code for satin stainless, so it matches the finish on most commercial lever trim, push plates and hinges already hanging in an office, school or healthcare corridor. The stainless finish also holds up in wet or cleaned-down areas better than a plated brass finish.
6) Does the Don-Jo 5000 CW wrap around plate come handed?
No handing to specify. The 5000 CW is ordered as one configuration, 5000-S-CW, with the lock and latch preps cut for the Kaba 5000 Series at a 2-3/4 inch backset. What you do need to confirm is which face of the door you're covering and that the door is 1-3/4 inch thick, since the wrap is formed for that one thickness.
