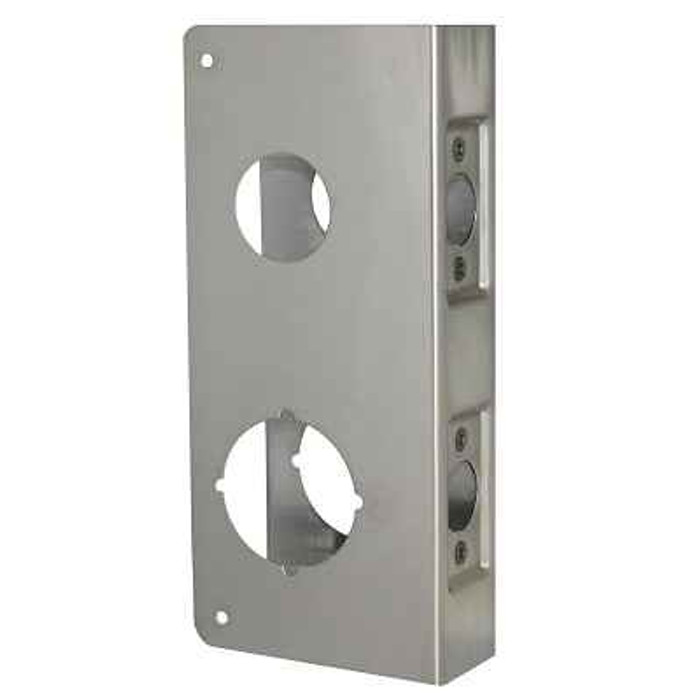

Don-Jo 154 Wrap Around Plate 4" x 9" with 4" CTC for Double Lock Combination Locksets

Don-Jo 154 Wrap Around Plate 4" x 9" with 4" CTC for Double Lock Combination Locksets

(No reviews yet) Write a Review

Model: 154-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$29.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

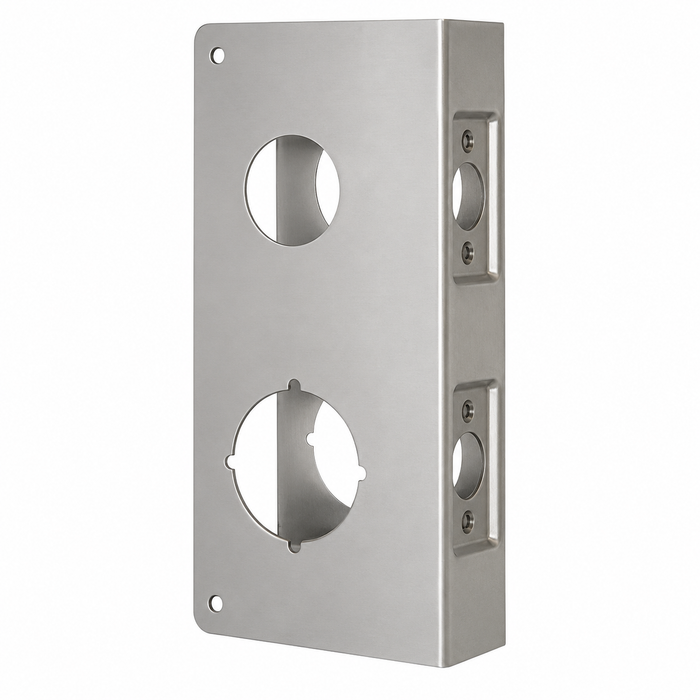

Don-Jo 154 Wrap Around Plate 4" x 9" with 4" CTC for Double Lock Combination Locksets

The Don-Jo 154 CW Wrap Around Plate is a commercial-grade door trim accessory engineered specifically for double lock combination locksets requiring a 1-1/2" hole on top and a 2-1/8" hole on bottom with 4" center-to-center spacing. Measuring 4" wide by 9" tall and constructed from 22-gauge (.032) steel, this wrap around plate provides a clean, professional finish while reinforcing the door face around the lock prep area. Designed for 1-3/8" doors with a 2-3/8" backset, it features a latch prep indent for precise, flush installation. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: 4" width by 9" height provides full coverage around double lock combination lockset preparations on standard commercial doors.
  • 4" Center-to-Center Spacing: Designed with 4" CTC to align perfectly with double lock combination locksets featuring a 1-1/2" top hole and 2-1/8" bottom hole.
  • Door Compatibility: Engineered for 1-3/8" doors with a 2-3/8" backset, ensuring a proper fit on standard residential and light commercial door preparations.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door hardware applications.
  • Latch Prep Indent: Integrated latch prep indent allows for flush, professional installation without interference with latch bolt operation.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide range of door hardware aesthetics.
  • Display Package Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • (CTC) Center-to-Center: 4"
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Educational Facilities
  • Healthcare Institutions
  • Light Industrial Facilities
  • Government and Municipal Buildings

Why Don-Jo 154?

Don-Jo wrap around plates are built to commercial standards, with 22-gauge (.032) steel construction and precise hole configurations that ensure compatibility with double lock combination locksets. The 154 CW delivers a clean, finished appearance while reinforcing the door face, making it a reliable choice for professional door hardware installations where fit, finish, and durability are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/8"
Cross Bore:
2-1/8"
Product Model:
154 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
(CTC) Center-to-Center:
4"
Department:
Door Hardware

Don-Jo 154-S-CW – Frequently Asked Questions

1) What hole pattern does the Don-Jo 154 wrap plate have, and will it line up with my lockset?
Two holes, 4 inches center to center: 1-1/2 inch on top and a 2-1/8 inch cross bore on the bottom. That's the double lock combination pattern, a knob or lever bore below with a separate deadbolt or auxiliary lock above. If your door has a single 2-1/8 inch bore, or the two bores measure something other than 4 inches apart center to center, this plate won't register over the prep.
2) Can a wrap around plate cover up damage around a lockset without replacing the door?
That is the job it does. The 154 measures 4 by 9 inches and wraps the door face around the lock prep, covering torn or oversized holes and stiffening the area at the same time. It's a common fix on multi-tenant units after a kick-in or a lockset swap that left the old prep exposed. You do need the underlying bores to match the plate: 1-1/2 inch top, 2-1/8 inch bottom, 4 inch centers.
3) I have a single-bore door with just a knob, no deadbolt. Is the 154 the right wrap around plate?
No. The 154 is drilled for two holes at 4 inch centers, a 1-1/2 inch above and a 2-1/8 inch cross bore below, so a door with only one bore would leave the second hole open to daylight. For a single knob or lever prep you want a single-hole wrap around sized to your 2-1/8 inch bore instead.
4) Does a wrap around plate mount on one side of the door or both?
A wrap around wraps the edge of the door and returns onto both faces, which is what separates it from a flat filler plate that only dresses one side. On the 154 that wrap is what carries the latch prep indent at the door edge, and it's why the 1-3/8 inch door thickness matters so much: the bend is formed for that leaf and won't seat on a thicker door.
5) Does the Don-Jo 154 wrap plate interfere with the latch when the door closes?
No. The plate has a latch prep indent formed into it at the latch face, so the wrap sits flush and the latch bolt operates without the steel getting in its way. That indent is cut for a 2-3/8 inch backset, which is what puts the relief in line with the latch on a 1-3/8 inch door.
6) How thick is the steel on the Don-Jo 154 wrap around plate?
22-gauge, .032 inch steel. That's a trim-weight wrap, heavy enough to hold its shape across the door face and hide a damaged prep, but it isn't a security reinforcer. If the goal is resisting a forced entry rather than dressing up the opening, you want a heavier gauge wrap or a dedicated latch protector.
7) Can I standardize the Don-Jo 154 wrap plate across a building of apartment entry doors?
Where the doors are consistent, yes. The requirement is a 1-3/8 inch door leaf, a 2-3/8 inch backset, and a double lock prep on 4 inch centers with a 1-1/2 inch top hole and 2-1/8 inch bottom bore. Walk a sample of units and measure center to center between the two bores first, because mixed-vintage buildings often run both 4 inch and other spacings, and one plate size will not cover both. Pick one finish across the fleet and the doors read as a set.
8) What is the difference between the CW and V versions of the Don-Jo 154?
Packaging only, not the plate. CW is the standard pack; substitute V for CW after the item number and you get the same wrap in display packaging for retail shelf or counter sale. Contractors and property managers buying for a job want the CW.
