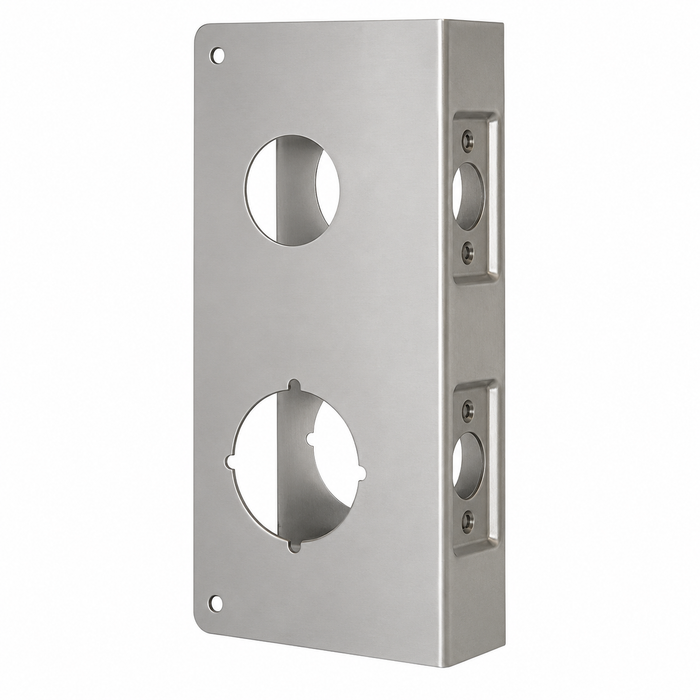

Don-Jo 486 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

Don-Jo 486 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

(No reviews yet) Write a Review

Model: 486-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.50
$36.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 486 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

The Don-Jo 486 CW is a commercial-grade wrap around plate measuring 4-1/2" wide by 12" tall, engineered specifically for double lock combination locksets with 6" center-to-center spacing. Designed for 1-3/4" doors with a 2-3/4" backset, this wrap around features a double indent latch prep and accommodates a 1-1/2" hole on top and a 2-1/8" hole on bottom. Constructed from 22-gauge (.032) steel, it provides a clean, professional finish while reinforcing the door face around the lock preparation area. Available in three finishes — 10B (613), PB (605), and S (630) — to complement a variety of door hardware configurations.

Key Features

  • Precise Dimensions: Measures 4-1/2" wide by 12" tall, sized to cover and reinforce the lock preparation area on commercial doors.
  • Double Lock Combination Lockset Compatibility: Designed for double lock combination locksets with 6" center-to-center (CTC) spacing for a secure, accurate fit.
  • Dual Hole Configuration: Features a 1-1/2" hole on top and a 2-1/8" hole on bottom to match standard double lock combination lockset preparations.
  • Correct Backset and Door Size: Engineered for a 2-3/4" backset and 1-3/4" door thickness, ensuring proper alignment with existing lock hardware.
  • Double Indent Latch Prep: Includes a double indent latch prep for precise, factory-ready installation without additional door modification.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with a wide range of door hardware and aesthetic requirements.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • (CTC) Center-to-Center: 6"
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 486 CW?

Don-Jo wrap around plates are built to commercial standards, with 22-gauge (.032) steel construction that delivers reliable reinforcement and a clean appearance around double lock combination lockset preparations. The 486 CW is precisely engineered with a double indent latch prep, dual hole configuration, and exact dimensional specifications — making it a dependable choice for professional door hardware installations where accuracy and durability are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
486 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
(CTC) Center-to-Center:
6"
Department:
Door Hardware

Don-Jo 486-S-CW – Frequently Asked Questions

1) Can a wrap around plate cover up a chewed or over-bored door around the lock?
Covering damage is the main reason these go on. The 486 CW is a 4-1/2 by 12 inch face of 22-gauge (.032) steel that wraps the door edge and hides splintering, old strike-side gouging, or a sloppy bore around a double lock prep, while stiffening the door face at the same time. What it will not do is fill a hole larger than its own openings, so the existing bores need to be at or under 1-1/2 inch on top and 2-1/8 inch on the bottom.
2) Do I need to cut the door to install a Don-Jo 486 CW wrap around?
No new machining on a door that already has the matching prep. The 486 CW comes with a double indent latch prep, so it drops over the existing bores and latch cutout and the lock hardware is reinstalled through it. Hollow metal or wood, the plate wraps the edge and picks up the same holes the lockset already uses.
3) Is a wrap around plate or a flat door reinforcer better for a damaged commercial door?
A wrap around like the 486 CW folds around the lock edge of the door and reinforces both faces plus the edge, which is what you want when the damage is at the edge or the door is racking at the lock. A flat filler or scar plate only covers one face and is the choice when the leaf is intact and you are just hiding an unused bore. The 486 CW is a commercial part built to cover a live double lock prep, not to blank one off.
4) What finishes does the Don-Jo 486 CW wrap around plate come in?
Three: 10B oil rubbed bronze (613), PB polished brass (605), and S satin stainless (630). For a building being standardized, 630 satin stainless is the usual match for commercial lever and mortise trim, 605 polished brass pairs with older brass hardware, and 613 suits dark bronze openings. All three are the same 4-1/2 by 12 inch plate.
5) Is the Don-Jo 486 CW handed, and do I need to specify left or right?
Handing is not an ordering choice on the 486 CW. The wrap is symmetrical top to bottom about its two bores and slips over the lock edge either way, so the only thing to specify is finish. What does have to match is the side the prep is on: the plate wraps the lock stile, and the 2-3/4 inch backset sets where the latch indent falls.
6) How thick is the steel on the Don-Jo 486 CW, and will it hold up in a high traffic building?
22-gauge, .032 inch steel. That is reinforcement and cover-up gauge, not a security plate: it stiffens the lock area and takes the abuse of a corridor door in an office, school, or apartment building, and it hides the wear underneath. If your problem is someone actively kicking the door, the fix is at the strike and frame, not the door face.
