Don-Jo 256 CW Wrap Around Plate 4-5/16" x 12" for Double Lock Combination Locksets, 2-3/8" Backset, 1-3/4" Door

Don-Jo 256 CW Wrap Around Plate 4-5/16" x 12" for Double Lock Combination Locksets, 2-3/8" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 256-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.50
$29.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 256 CW Wrap Around Plate 4-5/16" x 12" for Double Lock Combination Locksets, 2-3/8" Backset, 1-3/4" Door

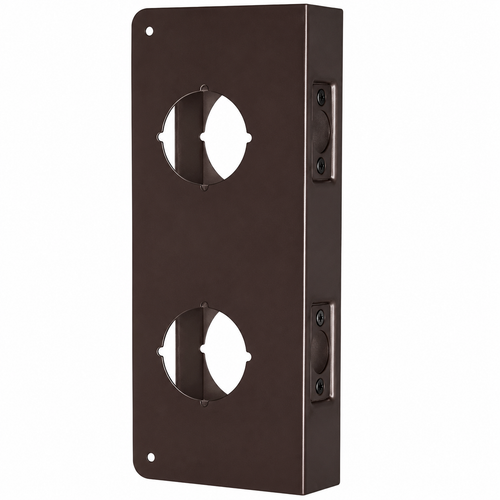

The Don-Jo 256 CW is a commercial-grade wrap around plate engineered specifically for double lock combination locksets with 2-1/8" holes on 5-1/2" centers. Measuring 4-5/16" wide by 12" in height and constructed from 22-gauge (.032) steel, this wrap around is designed for 1-3/4" door thickness with a 2-3/8" backset, featuring a double indent latch prep for a precise, professional fit. Available in multiple finishes to complement a wide range of commercial door hardware installations.

Key Features

  • Precise Dimensions: 4-5/16" width by 12" height with a 4" nominal width, providing full coverage and protection around the lock area on commercial doors.
  • Double Lock Combination Lockset Compatibility: Designed specifically for double lock combination locksets with two 2-1/8" holes on 5-1/2" center-to-center spacing for a secure, accurate fit.
  • Correct Backset & Door Sizing: Engineered for a 2-3/8" backset and 1-3/4" door thickness, ensuring proper alignment and installation on standard commercial doors.
  • Heavy-Duty 22-Gauge Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in demanding commercial environments.
  • Double Indent Latch Prep: Features a double indent latch preparation for clean, professional integration with compatible lockset hardware.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural aesthetics.
  • Commercial-Grade Application: Rated for commercial use, making it suitable for high-traffic doors in offices, institutions, and commercial facilities.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 256 CW?

Don-Jo wrap around plates like the 256 CW deliver professional-grade reliability through heavy-duty 22-gauge (.032) steel construction and precise dimensional engineering for double lock combination locksets. Designed for commercial applications where proper lockset coverage and a clean, finished appearance are essential, the 256 CW provides a dependable solution for installers and facility managers seeking quality door trim accessories.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
256 CW
(CTC) Center-to-Center:
5-1/2"
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
Department:
Door Hardware

Don-Jo 256-S-CW – Frequently Asked Questions

1) Will the Don-Jo 256 CW wrap around plate fit my door if the lock has two 2-1/8 inch holes?
That's exactly the prep it's cut for. The 256 CW is bored for double lock combination locksets with two 2-1/8 inch cross bores spaced 5-1/2 inches center to center, on a 2-3/8 inch backset. If your lock uses a single bore, or the two holes measure something other than 5-1/2 inches apart, the plate won't line up and you need a different wrap.
2) How do I check my backset before ordering a 256 CW wrap around?
Measure from the edge of the door to the center of the lock bore. The 256 CW is punched for a 2-3/8 inch backset, the shorter of the two standard backsets. If yours measures 2-3/4 inches, the bores in this plate will sit off center against your lock holes and it will not install. Backset and the 5-1/2 inch hole spacing both have to match.
3) I have a knob with a separate deadbolt above it. Is the 256 CW the right wrap?
Only if the two holes are 5-1/2 inches apart center to center and both are 2-1/8 inches. That is the double lock combination prep the 256 CW is cut for. Plenty of knob-plus-deadbolt openings run 5-1/2 inch centers, but others use different spacing, and a wrap with the wrong centers is unusable. Pull the lock and measure hole center to hole center before ordering.
4) What does a wrap around plate actually do, and do I still need to replace the door?
A wrap around plate is a formed steel skin that wraps the lock edge of the door and covers damage, splitting, or oversized and chewed out bores around the lockset, so you can rehang the existing lock instead of replacing the leaf. The 256 CW covers a 4-5/16 by 12 inch area around the lock area. It reinforces and conceals; it is not the lock itself and does not add a locking function.
5) How much of the door does the Don-Jo 256 CW cover?
Coverage is 4-5/16 inches by 12 inches, with a 4 inch nominal width. That 12 inch height gives you room above and below the two bores to hide kick damage or old filled holes, and the 4-5/16 inch dimension is the flat plus the wrap, so on a 1-3/4 inch door the face coverage is narrower than 4-5/16. Measure your damaged area against 12 inches before you commit.
6) Does the 256 CW wrap around handle left or right hand doors?
Handing isn't a factor on this plate. A wrap around slides over the lock edge and the bores are symmetrical about the backset line, so the same 256 CW works on a left or right hand door. What does have to match is the 2-3/8 inch backset, the 2-1/8 inch bores at 5-1/2 inch centers, and 1-3/4 inch thickness. The plate does carry a double indent latch prep, so it seats around the existing latch face.
7) Is 22-gauge steel heavy enough for a wrap around on a high traffic door?
The 256 CW is 22-gauge (.032) steel and is rated for commercial use. That is a cover and reinforcement gauge, not a ballistic or forced entry plate: it stiffens a chewed out lock area and takes daily abuse in offices, schools, and multi-tenant buildings. If the door edge itself has been pried and deformed, the wrap hides it but does not restore the strike side of the frame.
8) What finishes does the Don-Jo 256 CW wrap around plate come in?
Five: 10B oil rubbed bronze, AB antique brass, BZ satin bronze, PB polished brass, and S satin stainless. For a fleet of openings where the levers are already US26D or 630 satin chrome or stainless, S is the one that reads as a match. PB (605) and AB (609) suit older brass trim.
9) Does the Don-Jo 256 CW come with screws or do I need to order fasteners separately?
Mounting hardware isn't itemized in the 256 CW spec data, so plan the job around the plate itself. What the wrap needs to work is the lockset coming back off and going back through the plate's 2-1/8 inch bores, so budget time for pulling and reinstalling the lock rather than for extra parts.
