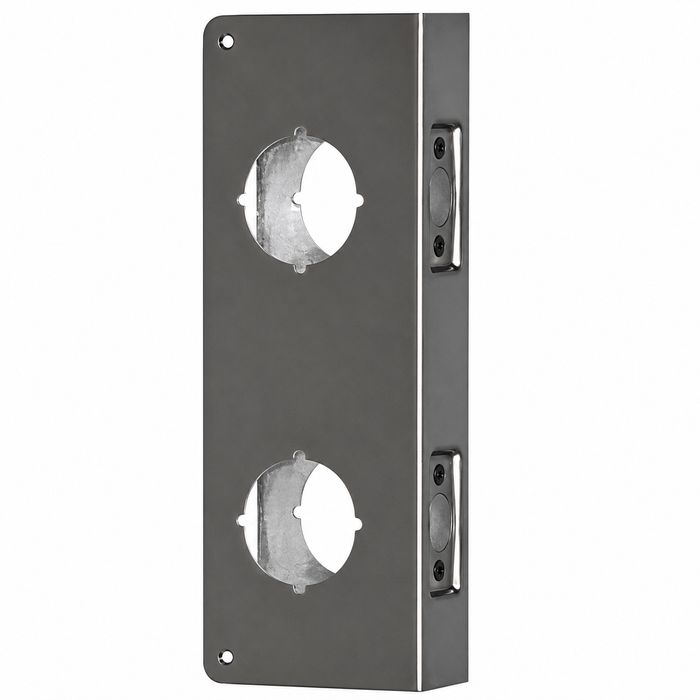

Don-Jo 942 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets, 2-3/8" Backset, 1-3/4" Door

Don-Jo 942 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets, 2-3/8" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 942-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$29.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 942 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets — 2-3/8" Backset, 1-3/4" Door

The Don-Jo 942 Wrap Around is a commercial-grade door reinforcement plate measuring 4" wide by 9" tall, engineered specifically for double lock combination locksets with 2-1/8" holes on 4" centers. Constructed from 22-gauge (.032) steel, this wrap around accommodates a 2-3/8" backset and is sized for 1-3/4" door thickness, featuring a double indent latch prep for precise, secure installation. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to complement a wide range of commercial door hardware.

Key Features

  • Precise Dimensions: Measures 4" wide x 9" tall with a 4" center-to-center (CTC) hole spacing, designed to align perfectly with double lock combination locksets.
  • Dual 2-1/8" Hole Configuration: Features two 2-1/8" holes on 4" centers to accommodate standard double lock combination lockset preparations.
  • 2-3/8" Backset Compatibility: Engineered for a 2-3/8" backset, ensuring proper alignment with standard commercial door locksets.
  • 1-3/4" Door Thickness: Specifically sized for 1-3/4" door applications common in commercial construction.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting door reinforcement in high-traffic commercial environments.
  • Double Indent Latch Prep: Includes a double indent latch preparation for a clean, professional fit around the latch mechanism.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to match existing door hardware aesthetics.
  • Display Package Option: Also available in display packaging — when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • (CTC) Center-to-Center: 4"
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 942?

Don-Jo 942 Wrap Around plates deliver professional-grade door reinforcement with 22-gauge (.032) steel construction engineered to withstand the demands of commercial applications. Designed for precise compatibility with double lock combination locksets featuring 2-1/8" holes on 4" centers, the 942 provides a reliable, finished appearance while protecting door prep areas in high-traffic environments.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
942 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
(CTC) Center-to-Center:
4"
Department:
Door Hardware

Don-Jo 942-S-CW – Frequently Asked Questions

1) Will the Don-Jo 942 wrap around plate cover the holes from a double lock combination lockset?
That is exactly what the 942 is cut for. It has two 2-1/8 inch cross bore holes spaced 4 inches center to center, which is the standard prep for a double lock combination lockset (knob or lever plus deadbolt in one trim). If the door you're covering has a single 2-1/8 inch bore and no second hole, this plate will leave an open hole in the face, so you want a single-hole wrap around instead.
2) What backset and door thickness does the Don-Jo 942 wrap around fit?
The 942 is built for a 2-3/8 inch backset on a 1-3/4 inch thick door. Those two numbers are fixed on this plate, not adjustable. Most commercial doors are 1-3/4 inch, but 2-3/8 backset is the shorter of the two common backsets, so measure from the door edge to the center of the bore before ordering. If yours measures 2-3/4 inches, this plate's holes will not line up with your lockset.
3) Can a wrap around plate hide damage around a chewed up lockset hole on a commercial door?
That's the main reason property managers buy them. The Don-Jo 942 wraps the edge of the door and covers a 4 by 9 inch area of the face around the lock prep, hiding splintered or oversized holes and reinforcing the area so the lockset seats against steel rather than damaged door skin. It's 22-gauge (.032) steel. It covers cosmetic and prep damage around the bores; it does not rebuild a door edge that has been split apart by a pry attack.
4) Will the Don-Jo 942 work with a separate knob and deadbolt that are not on 4 inch centers?
No. The 942's two 2-1/8 inch holes are fixed at 4 inches center to center, which matches a double lock combination lockset. A separate knob and deadbolt installed independently are usually spaced much farther apart, commonly 5-1/2 inches or more, and those holes will not land on this plate. Measure center of the lower bore to center of the upper bore first; if it isn't 4 inches, you need a wrap around cut for that spacing.
5) Does the Don-Jo 942 wrap around plate need to be handed left or right?
The 942 wraps around the lock edge of the door, so it goes on with the latch prep facing the strike side regardless of swing. It has a double indent latch prep formed into the wrap, which is what seats around the latch on either handing. What you do need to match is the face you want it on: the plate is installed on the side you're covering, so order one per side if both faces of the door are damaged.
6) What finishes does the Don-Jo 942 wrap around come in, and which matches my existing lever?
Five finishes: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). If you're matching typical commercial lever trim, 630 satin stainless is the one that lines up with most institutional hardware; 605 polished brass and 613 oil rubbed bronze are the common matches on older office and multi-family doors. Match the BHMA number on your existing trim rather than the name, since bronze finishes vary between makers.
7) Is 22-gauge steel heavy enough for a wrap around on a high traffic door?
22-gauge (.032) steel is the standard weight for a cosmetic and reinforcement wrap around, and the 942 is specified as commercial rather than residential. It holds its shape under daily traffic in offices, schools, healthcare, retail, and multi-tenant buildings and gives the lockset a solid bearing surface. It is a reinforcement and cover plate, not a security plate, so if you're addressing forced entry at the latch you want a latch protector or strike reinforcement in addition.
8) Can I standardize one wrap around plate across an apartment building's entry doors?
You can, as long as the doors share the prep. The 942 fits 1-3/4 inch doors with a 2-3/8 inch backset and a double lock combination lockset bored 2-1/8 inch on 4 inch centers. Buildings done in one construction phase usually run one prep throughout, so a single finish and part number covers the whole fleet. Spot check a few doors on each floor, especially any that have been replaced individually, since a swapped door often brings a different backset with it.
9) What is the difference between the CW and V versions of the Don-Jo 942?
Same plate, different packaging. The CW is the standard trade pack; substituting V for CW after the item number gets you the display-packaged version for retail shelf sale. Locksmiths and contractors ordering for jobs generally want CW.
