Don-Jo 481 Wrap Around Plate 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$33.60
$29.54

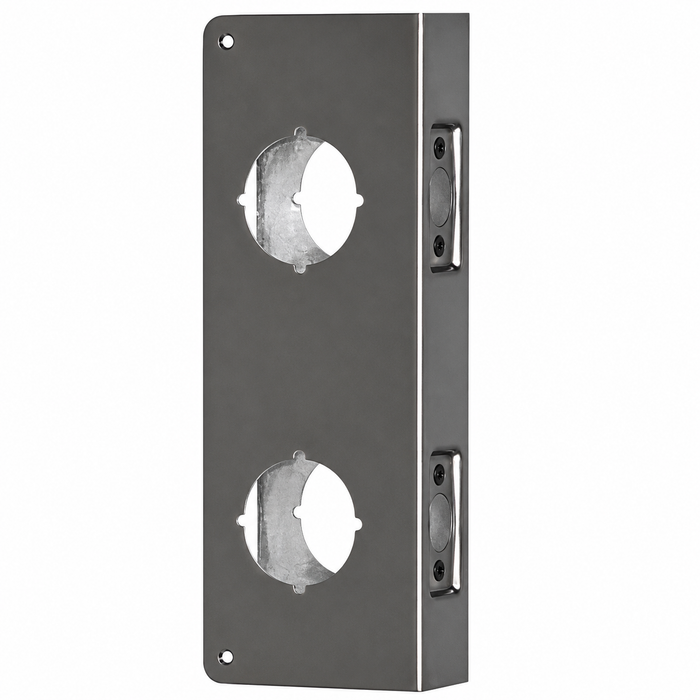

Don-Jo 481 Wrap Around Plate 4-1/4" x 9" for Double Lock Combination Locksets, 2-3/4" Backset, 1-3/4" Door

Don-Jo 481 Wrap Around Plate 4-1/4" x 9" for Double Lock Combination Locksets, 2-3/4" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 481-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$29.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 481 Wrap Around Plate 4-1/4" x 9" for Double Lock Combination Locksets, 2-3/4" Backset, 1-3/4" Door

The Don-Jo 481 Wrap Around Plate is a commercial-grade door trim accessory measuring 4-1/4" x 9", engineered specifically for double lock combination locksets with 2-1/8" holes on 3-5/8" centers. Constructed from 22-gauge (.032) steel, this wrap around accommodates a 2-3/4" backset and is designed for 1-3/4" door thickness, featuring a double indent latch prep for a precise, professional fit. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to complement a wide range of door hardware.

Key Features

  • Precise Dimensions: Measures 4-1/4" wide x 9" tall, providing reliable coverage and reinforcement for double lock combination lockset installations.
  • Double Lock Combination Lockset Compatibility: Designed specifically for double lock combination locksets with two 2-1/8" holes on 3-5/8" center-to-center spacing for accurate alignment.
  • Correct Backset and Door Sizing: Accommodates a 2-3/4" backset and is sized for 1-3/4" door thickness, ensuring a proper fit in standard commercial door applications.
  • Double Indent Latch Prep: Features a double indent latch preparation for a clean, flush installation that integrates seamlessly with compatible locksets.
  • Heavy-Duty 22-Gauge Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial environments.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match existing door hardware and aesthetic requirements.
  • Display Package Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 481?

Don-Jo 481 Wrap Around Plates deliver professional-grade reliability through 22-gauge (.032) steel construction and precise dimensional engineering for double lock combination lockset applications. Engineered for demanding commercial environments, the 481 provides a clean, reinforced finish that meets the standards of professional door hardware installers and contractors.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
481 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
(CTC) Center-to-Center:
3-5/8"
Department:
Door Hardware

Don-Jo 481-S-CW – Frequently Asked Questions

1) Will the Don-Jo 481 wrap around plate cover the holes left by a double lock combination lockset?
That's exactly what the 481 is cut for. It's prepped with two 2-1/8 inch cross bores on 3-5/8 inch center-to-center spacing, which is the hole pattern a double lock combination lockset (knob or lever plus deadbolt in one trim) leaves in the door. If your door has two bores at any other spacing, or a single bore, the plate won't line up and you need a different wrap.
2) How do I hide the damage around a lockset without replacing the door?
A wrap around plate is the usual fix. The Don-Jo 481 wraps the edge of the door and covers the face around the lock bores with a 4-1/4 x 9 inch piece of 22-gauge (.032) steel, so torn-out or oversized holes and old paint lines disappear under it and the lock still mounts through the plate. It reinforces the area at the same time. For it to work, your door has to be 1-3/4 inches thick with a 2-3/4 inch backset and two 2-1/8 inch bores on 3-5/8 inch centers.
3) Does the Don-Jo 481 wrap around plate need to be handed?
No handing to specify. The 481 wraps the door edge and is prepped with a double indent latch prep, so the same plate works on a left or right hand door. What you do have to get right is the bore pattern, the 2-3/4 inch backset, and the 1-3/4 inch door thickness.
4) What finishes does the Don-Jo 481 wrap around come in, and how do I match my existing hardware?
Five finishes: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). If you're matching a fleet of commercial openings, 630 satin stainless is the one that lines up with most commercial lever and exit hardware; 605 polished brass and 613 oil rubbed bronze match older brass and dark bronze trim.
5) Is 22-gauge steel heavy enough for a high traffic commercial door?
The 481 is 22-gauge (.032) steel and is a commercial product, so it holds up in office, school, healthcare, retail, and multi-tenant traffic. Understand what it is doing though: a wrap around is cover and reinforcement over the lock area, not a security strike or a latch guard. If the door was kicked and the frame or latch prep itself is compromised, you need a latch protector or strike reinforcement in addition to this plate.
6) How much of the door face does the Don-Jo 481 plate actually cover?
It measures 4-1/4 x 9 inches. That is enough face coverage to bridge both 2-1/8 inch bores at 3-5/8 inch centers with material around them, and it wraps the door edge over the latch prep. Before ordering, check the damage on your door stays inside that 4-1/4 x 9 inch footprint; anything wider than 4-1/4 inches will still show past the plate.
7) Can I order the Don-Jo 481 in retail display packaging?
Yes. The 481 CW is the standard pack; for the display-packaged version, substitute V for CW after the item number when ordering. Same plate either way, just the packaging changes, which matters if you're a distributor stocking it on a pegboard rather than a contractor buying it for a job.
