Don-Jo 261 Wrap Around Plate 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$40.76
$35.69

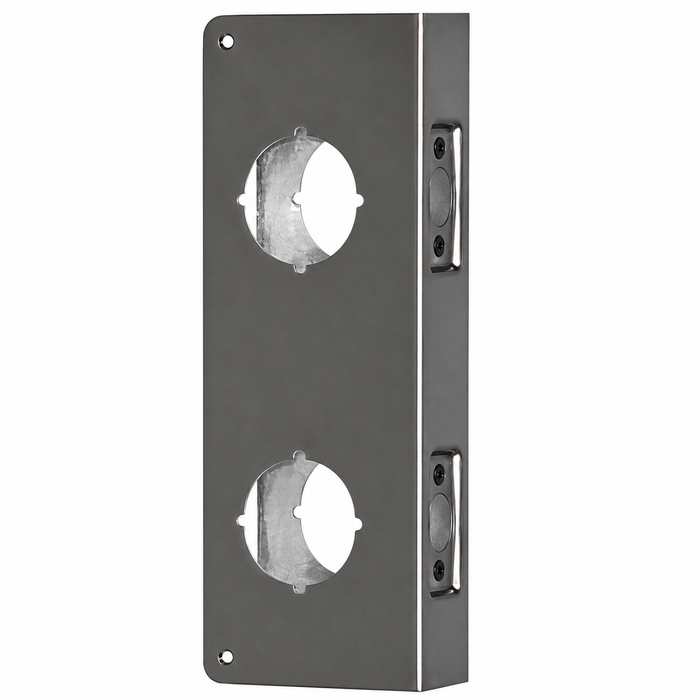

Don-Jo 261 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets with 2-3/8" Backset and 1-3/4" Door

Don-Jo 261 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets with 2-3/8" Backset and 1-3/4" Door

(No reviews yet) Write a Review

Model: 261-PB-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.76
$35.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 261 Wrap Around Plate 4" x 9" for Double Lock Combination Locksets — 2-3/8" Backset, 1-3/4" Door

The Don-Jo 261 CW Wrap Around is a commercial-grade door reinforcement plate measuring 4" wide by 9" tall, engineered specifically for double lock combination locksets with 2-1/8" holes and 3-5/8" centers. Constructed from 22-gauge (.032) steel, this wrap around plate accommodates a 2-3/8" backset and is sized for 1-3/4" doors, featuring a double indent latch prep for precise, secure installation. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Plate Dimensions: 4" width by 9" height provides ample coverage and reinforcement around the lockset area on the door face.
  • Double Lock Combination Lockset Compatibility: Designed specifically for double lock combination locksets with two 2-1/8" holes set at 3-5/8" centers for a precise, secure fit.
  • Backset Specification: Accommodates a 2-3/8" backset, ensuring proper alignment with standard door lock preparations.
  • Door Size Compatibility: Sized for 1-3/4" door thickness, the most common commercial door specification.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting reinforcement in commercial applications.
  • Double Indent Latch Prep: Features a double indent latch preparation for clean, accurate lockset installation and a professional finished appearance.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to match a wide range of door hardware styles.
  • Display Package Option: Also available in display packaging — when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 261?

Don-Jo 261 Wrap Around Plates deliver professional-grade door reinforcement with 22-gauge (.032) steel construction engineered to withstand the demands of commercial environments. With precise dimensional specifications — including a 4" x 9" plate size, 3-5/8" hole centers, and double indent latch prep — the 261 series ensures a clean, code-compliant installation for double lock combination locksets in high-traffic commercial settings.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
261 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
(CTC) Center-to-Center:
3-5/8"
Department:
Door Hardware

Don-Jo 261-PB-CW – Frequently Asked Questions

1) Will the Don-Jo 261 wrap around plate fit my door if the lockset has two 2-1/8 inch holes?
That is exactly the prep the 261 is cut for. It has two 2-1/8 inch cross bores at 3-5/8 inch centers, which is the standard double lock combination lockset layout (knob or lever plus deadbolt in one trim). Measure center of the knob hole to center of the deadbolt hole on your door: if that comes out at 3-5/8 inches and the backset is 2-3/8 inches, the plate drops right over the existing prep. A single-bore door or one with a different center spacing needs a different wrap.
2) What door thickness does the Don-Jo 261 wrap around plate cover?
Sized for 1-3/4 inch doors, which is the standard commercial thickness. A wrap around folds over the door edge, so thickness is not a soft dimension here, the return has to match. On a 1-3/8 inch interior door the plate will stand proud of the face and will not sit flat.
3) Can a wrap around plate cover up damage around a lockset instead of replacing the whole door?
That is the job it does. The 261 is a 4 x 9 inch wrap that folds over the door edge and covers the face around the lockset area, hiding splintering, old filled holes, or wear from a prior lockset. It reinforces the bore area at the same time. What it will not do is repair a door that is broken through the core, and it only covers a 4 by 9 inch footprint, so damage outside that area stays visible.
4) What gauge steel is the Don-Jo 261 wrap around, and is it heavy enough for a high traffic entry?
22-gauge (.032) steel, and it is built for commercial use. That gauge is a reinforcement and cover plate weight, not a security strike plate, so it stiffens the bore area and takes daily abuse in an office, school, or apartment corridor. If your concern is resisting a kick-in at the latch, that job belongs to a strike reinforcer or an edge guard, not to this face wrap.
5) What finishes does the Don-Jo 261 wrap around plate come in?
Five: 10B oil rubbed bronze, AB antique brass, BZ satin bronze, PB polished brass, and S satin stainless. For a building where you are standardizing, satin stainless (630) is the usual match for commercial lever hardware and polished brass (605) for older brass trim. Pick the one that matches the lockset already on the door, since the wrap sits directly around it and any mismatch shows.
6) What is the double indent latch prep on the Don-Jo 261 for?
The double indent is a formed recess at the door edge that clears the latch face and the deadbolt face so the wrap sits flush against the edge without you having to mortise anything extra. Practically, it means you can pull the lockset, slip the wrap on over the existing latch and deadbolt preps, and reinstall, rather than shimming the plate or filing it to clear the faceplates.
7) Is there a display packaged version of the Don-Jo 261 wrap around for retail shelves?
Yes. The 261 comes bulk packaged as the 261 CW, and for a display package you order the same plate with V in place of CW after the item number. Same plate either way, only the packaging changes, so distributors stocking a peg display and contractors buying by the case are ordering the identical part.
