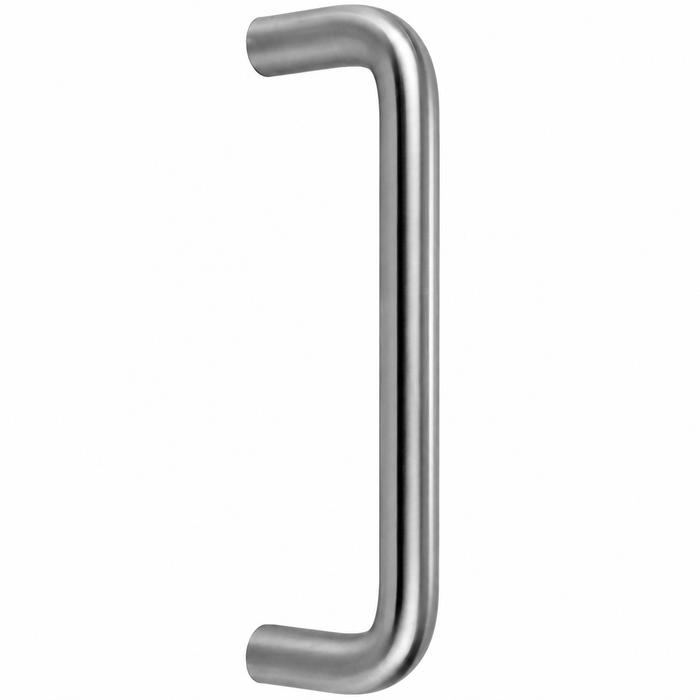

Don-Jo 16 Cast Door Pull — 8" CTC, 8-3/4" Overall, 2-1/4" Projection, 1-1/2" Clearance

Don-Jo 16 Cast Door Pull — 8" CTC, 8-3/4" Overall, 2-1/4" Projection, 1-1/2" Clearance

(No reviews yet) Write a Review

Model: 16-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$46.06
$38.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 16 Cast Door Pull — 8" CTC, 8-3/4" Overall, 2-1/4" Projection, 1-1/2" Clearance

The Don-Jo 16 is a cast door pull engineered for commercial applications, offering an 8" center-to-center (CTC) spacing and an 8-3/4" overall length for a confident, ergonomic grip. With a 2-1/4" projection and 1-1/2" clearance, this pull provides comfortable hand clearance from the door surface. The 3/4" diameter bar and cast construction deliver the durability expected in high-traffic commercial environments. Available in multiple finishes including 605, 606, 613, 628, 629, and 630 to coordinate with a wide range of door hardware.

Key Features

  • Center-to-Center Spacing: 8" CTC measurement ensures standard mounting compatibility for commercial door applications.
  • Overall Length: 8-3/4" overall length provides a full, comfortable gripping surface for everyday use.
  • Projection & Clearance: 2-1/4" projection and 1-1/2" clearance offer ergonomic hand room between the pull and the door face.
  • Bar Diameter: 3/4" diameter bar delivers a solid, comfortable grip suited to commercial-grade use.
  • Cast Construction: Cast manufacturing process provides consistent quality and robust durability for demanding door hardware applications.
  • Multiple Finish Options: Available in finishes 605, 606, 613, 628, 629, and 630 to match existing door hardware and architectural aesthetics.
  • Commercial Grade: Designed and rated for commercial use across a wide range of building types and door configurations.

Certifications & Compliance

  • ANSI J401 Compliant

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Subcategory: Pulls and Push Plates
  • Commercial/Residential: Commercial
  • Product Model: 16
  • (CTC) Center-to-Center: 8"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 16?

Don-Jo 16 door pulls are built to commercial standards with cast construction and a 3/4" diameter bar, ensuring consistent performance and long-term durability in high-traffic settings. Compliant with ANSI J401 and available in six finish options, the Don-Jo 16 is a reliable, versatile choice for architects, contractors, and facility managers seeking professional-grade door trim hardware.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Subcategory:
Pulls and Push Plates
Commercial/Residential:
Commercial
Clearance:
1-1/2"
ANSI/BHMA:
J401
Product Model:
16
(CTC) Center-to-Center:
8"
Product Size:
8-3/4"
Product Diameter:
3/4"
Product Projection:
2-1/4"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 16-630 – Frequently Asked Questions

1) Is there enough hand room behind the Don-Jo 16 pull for a gloved grip?
Clearance between the bar and the door face is 1-1/2 inches, with a 2-1/4 inch total projection off the door. That is enough space for a gloved hand or a full-fist grip, which is what you want on a warehouse or service door where crews are carrying loads. The bar itself is 3/4 inch diameter round stock.
2) Does the Don-Jo 16 pull meet the ANSI J401 spec called out on my drawing?
The Don-Jo 16 cast pull is ANSI/BHMA J401. If the hardware schedule specifies J401 for door pulls, this one answers that line directly.
3) What is the closest equivalent to the Don-Jo 16 door pull with a 3/4 inch bar and 1-1/2 inch clearance?
The Ives 8102HD heavy duty straight door pull is built around the same 3/4 inch round bar and 1-1/2 inch clearance as the Don-Jo 16, which also uses a 3/4 inch diameter bar and 1-1/2 inch clearance. Both are straight-bar commercial pulls, so a door already drilled for one pull pattern gives a locksmith or contractor a direct like-for-like grip profile to work from. Confirm the center-to-center spacing against the 8 inch CTC of the Don-Jo 16 before reusing existing holes.
4) What door pull should I use instead of the Don-Jo 16 if I want a thicker one inch grip bar?
Step up to the Ives 8103HD heavy duty straight door pull, which uses a 1 inch round bar with through bolt mounting, or the ABH AB3300 straight flat end pull handle, which is a 1.00 inch diameter commercial door pull. The Don-Jo 16 is a 3/4 inch diameter bar. The larger bar changes the hand feel and the fastener approach; through bolting on the 8103HD ties the pull through the door leaf rather than to the face alone.
5) Which pull meets an ADA requirement if the Don-Jo 16 does not fit the accessible opening?
The Ives 8145 45 degree offset door pull is an ADA compliant EZ series pull supplied with heavy duty mounting hardware. The Don-Jo 16 is a commercial cast pull compliant with ANSI J401 and carries a 1-1/2 inch clearance for hand room. Institutional and MRO buyers standardizing an accessible route usually specify the 45 degree offset because the angled grip is reachable without a tight wrist turn.
6) Is the Trimco 1001-1 push plate a substitute for the Don-Jo 16 door pull?
No. The Trimco 1001-1 is a heavy duty push plate measuring 3 inches by 12 inches, a flat plate for the push side of an opening with nothing to grip. The Don-Jo 16 is a cast pull with an 8 inch center-to-center bar, 8-3/4 inch overall length, and 2-1/4 inch projection standing off the door face. On a typical pair they work together rather than in place of each other: the plate on the push side, the pull on the pull side. If you want both functions on one piece of trim, the Trimco 1070 series classic push/pull plates measure 3-1/2 inches by 15 inches.
7) What is the difference between the Don-Jo 16 and the Cal-Royal PUL-175 night latch pull?
The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches in height, in stainless steel construction; it carries a cylinder and is meant for a night latch application. The Don-Jo 16 is a plain cast grip pull, 8 inch center-to-center with an 8-3/4 inch overall length, with no cylinder provision. A locksmith replacing a cylinder pull on a storefront needs the PUL-175 style prep, not the two-hole pattern the Don-Jo 16 uses.
8) What finishes does the Don-Jo 16 cast pull come in, and which one matches stainless lever hardware?
Five finishes are orderable: 605 polished brass, 613 oil rubbed bronze, 628 satin aluminum, 629 bright stainless, and 630 satin stainless. For a building already standardized on satin stainless levers and push plates, 630 is the match; 629 is the bright polished stainless if the rest of the openings are polished. 628 satin aluminum is the usual pick against aluminum storefront framing.
9) What is the closest substitute for a Don-Jo 16 pull if I want to stay with 3/4 inch round bar and 1-1/2 inch clearance?
The Ives 8102HD heavy duty straight pull carries the same 3/4 inch round bar and 1-1/2 inch clearance, so it is the nearest straight-bar equivalent. If you want a heavier grip, the Ives 8103HD and the ABH AB3300 are 1 inch diameter straight pulls, and the ABH AB7200 is a 7/8 inch solid stainless straight pull with through-bolt mounting. Going up in diameter changes the feel and the hole pattern you should verify, not the function.
10) Is the Don-Jo 16 pull heavy enough for a school or hospital corridor door?
Cast construction with a 3/4 inch bar, rated commercial rather than residential, and built to ANSI/BHMA J401. That is the class of pull used on office, school, healthcare, retail, warehouse and municipal openings where the door gets pulled hundreds of times a day.
11) I need a pull on one side and a push plate on the other. Does the Don-Jo 16 cover both?
The 16 is the pull half only, an 8 inch CTC cast bar. Pair it with a push plate on the swing side: the Trimco 1001-1 heavy duty push plate is 3 x 12 inches, the 1070 Series classic push/pull plates are 3-1/2 x 15 inches, and the Trimco 1041 half-round plate is 8 x 16 inches for wider stiles. Order the plate in the same finish family you pick for the pull.
12) Will one Don-Jo 16 order give me a back-to-back pull set for both sides of the door?
No. The 16 is specified as a single pull with 8 inch centers and a 2-1/4 inch projection, so a door needing a grip on each face takes two. If you specifically want a factory back-to-back set, the Deltana OHP620 off-set handle pull ships as a back-to-back set for 1-1/8 to 1-3/8 inch doors, and the Deltana SSPOBB24 and SSPORBB24 are 24 inch back-to-back pairs.
13) Does the Don-Jo 16 work as a restroom door pull or a night latch pull?
As a plain corridor or restroom door grip, yes, the 8 inch cast bar does that job. It is not a specialty pull though. If you want the sanitary-style restroom pull that lets someone open the door with a forearm or a towel, that is the Trimco 1035 Ultimate Restroom Pull. If you need a pull with a cylinder cutout for a night latch on a storefront, the Cal-Royal PUL-175 night latch cylinder pull, 3-1/2 inch height in stainless, is the part for that.
14) The Don-Jo 16 is a straight pull. What is the offset alternative for the same commercial door?
For an offset grip, the ABH AB3310 offset flat end door pull handle is a commercial grade surface mount option, the ABH AB3330 series offset round end pull comes with custom length choices, and the Ives 8169 is a C style offset solid door pull in 1 inch diameter with heavy duty mounting. The Don-Jo 16 is a straight cast pull with a 2-1/4 inch projection and 1-1/2 inch clearance. Offset pulls angle the grip away from the door face, which suits openings where a straight bar crowds an adjacent frame or mullion.
15) I need a much longer pull than the Don-Jo 16 for a glass or entry door. What are the options?
For a long grip, the Deltana SSP1210 is a 12 inch contemporary pull in a single side configuration, and for full-height entry work the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull while the SSPORBB24 is a 24 inch back-to-back round offset pull. The Don-Jo 16 is 8-3/4 inches overall on 8 inch centers. Back-to-back sets mount a pull on each face through the same fasteners, which is the usual arrangement on a glass front entry; the Don-Jo 16 covers a single side.
16) What pull should I specify instead of the Don-Jo 16 for a restroom door?
The Trimco 1035 Ultimate Restroom Pull is a heavy duty pull made for restroom doors. The Don-Jo 16 is a general commercial cast pull with an 8 inch center-to-center bar and 1-1/2 inch clearance, suited to offices, schools, healthcare, retail, and multi-tenant residential openings. Facility buyers standardizing restroom trim across a building usually pick the purpose-built restroom pull and keep the Don-Jo 16 for the remaining doors.
17) Is there a stainless steel through-bolted alternative to the Don-Jo 16?
The ABH AB7200 is a solid stainless steel flat end pull handle with a 7/8 inch diameter and through-bolt mounting. The Don-Jo 16 is cast, uses a 3/4 inch bar, and is offered in 629 bright stainless steel and 630 satin stainless steel finishes among its options. Through-bolting carries the pull load through the door leaf, which contractors often want on high-traffic exterior entrances.
18) I need a custom length pull rather than the fixed 8 inch centers of the Don-Jo 16. What should I look at?
The ABH AB3330 series offset round end pull is offered with custom length options. The Don-Jo 16 is a fixed 8 inch center-to-center pull at 8-3/4 inches overall. Where an existing door is drilled on a spacing that is not 8 inches and you would rather not plug and redrill, a custom length series lets the pull meet the holes already in the door.
19) Can I use the Don-Jo 16 as a decorative entry pull on a residential front door?
It will function, but the 16 is a plain cast commercial bar in a 3/4 inch round profile, sized at 8 inches on center. For a residential entry where appearance drives the choice, the Emtek 8 inch pulls cover the decorative side at the same 8 inch size: Art Nouveau (lost wax cast bronze, select handing), Arts and Crafts, Baden, and Brisbane. Deltana's SSP1210 12 inch contemporary pull is the option if you want a longer, modern single-side bar.
