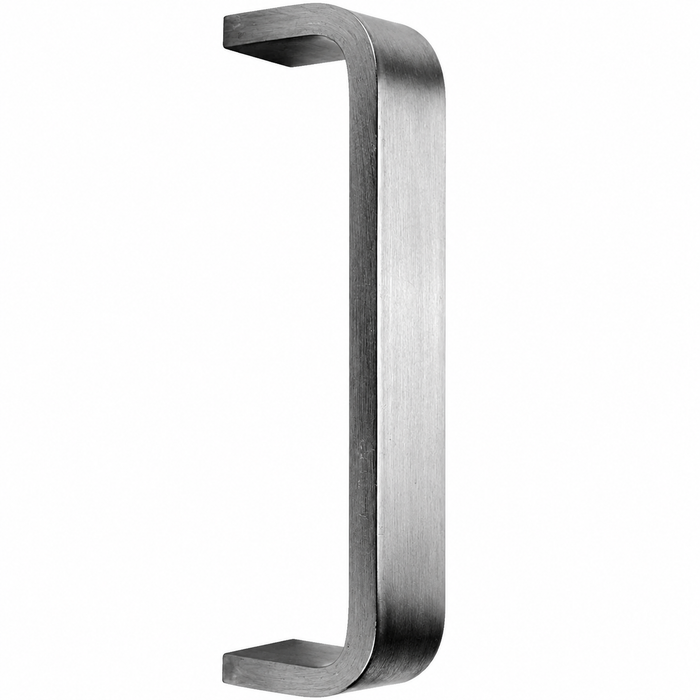

Don-Jo 32 Cast Door Pull — 10" CTC, 10-3/8" Overall, 2" Projection

The Don-Jo 32 is a commercial-grade cast door pull engineered for durability and professional performance in demanding applications. Featuring a 10" center-to-center (CTC) spacing, 10-3/8" overall length, 2" projection, and 1-5/8" clearance, this pull is designed to meet ANSI J401 standards. With a 3/8" x 1-1/4" diameter grip and availability in multiple finishes — 605, 613, 628, and 630 — the Don-Jo 32 delivers both functional reliability and aesthetic versatility for commercial door applications.

Key Features

  • Precise Dimensions: 10" center-to-center (CTC) spacing and 10-3/8" overall length provide a comfortable, ergonomic grip suited for commercial door installations.
  • Optimal Projection & Clearance: 2" projection and 1-5/8" clearance ensure comfortable hand access and smooth operation for users in high-traffic environments.
  • Grip Diameter: 3/8" x 1-1/4" diameter bar offers a secure, comfortable hold for consistent daily use.
  • Cast Construction: Manufactured using a cast process for superior strength, dimensional consistency, and long-term durability in commercial settings.
  • Multiple Finish Options: Available in finishes 605, 613, 628, and 630 to coordinate with a wide range of door hardware and architectural styles.
  • ANSI J401 Compliant: Meets ANSI J401 standards, ensuring compatibility and performance in commercial door hardware applications.
  • Commercial-Grade Application: Designed specifically for commercial use, providing the robustness required for high-traffic doors in professional environments.

Certifications & Compliance

  • ANSI J401 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Commercial/Residential: Commercial
  • Product Model: 32
  • (CTC) Center-to-Center: 10"
  • Product Size: 10 3/8"
  • Product Projection: 2"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 32?

The Don-Jo 32 cast door pull is built to deliver professional-grade performance with its cast construction, ANSI J401 compliance, and precise dimensional specifications including a 10" CTC, 10-3/8" overall length, and 2" projection. Engineered for demanding commercial applications, this pull provides the reliability and finish versatility that facility managers and door hardware professionals require.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Commercial/Residential:
Commercial
Clearance:
1-5/8"
ANSI/BHMA:
J401
Product Model:
32
(CTC) Center-to-Center:
10"
Product Size:
10 3/8"
Product Diameter:
3/8" x 1-1/4"
Product Projection:
2"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 32-628 – Frequently Asked Questions

1) Does the Don-Jo 32 pull meet ANSI J401?
The Don-Jo 32 is built to ANSI/BHMA J401, which is the door pull designation under the A156.6 architectural trim family. If your spec sheet calls out J401 pulls, this one answers it directly, and it's a commercial-duty part rather than a residential pull.
2) I'm standardizing pulls across a building. Will the Don-Jo 32 match what's already on my other doors?
Match on two things: hole spacing and finish. The 32 is 10 inch CTC, which is the most common commercial pull spacing, so it will usually drop onto the existing prep without redrilling. On finish, order 630 satin stainless or 628 satin aluminum to line up with typical commercial trim, or 605 polished brass and 613 oil rubbed bronze if the building runs those. All four finishes carry the same dimensions, 10-3/8 inches overall with a 2 inch projection.
3) What is a straight equivalent to the Don-Jo 32 cast door pull in a heavy duty round bar style?
The Ives 8102HD is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance, and the Ives 8103HD is a heavy duty straight pull with a 1 inch round bar and through bolt mounting. The Don-Jo 32 is a cast pull with a 3/8 inch by 1-1/4 inch grip, 10 inch center-to-center, 10-3/8 inch overall length, 2 inch projection and 1-5/8 inch clearance. If the grip diameter and clearance are what the opening was specified around, the two Ives pulls state theirs directly; if the 10 inch CTC hole pattern has to be matched, the Don-Jo 32 states that spacing.
4) The door pull has to clear a knuckle with gloves on - what offers more clearance than the Don-Jo 32?
The Don-Jo 32 gives 1-5/8 inch clearance behind a 2 inch projection. For an offset geometry instead of a straight pull, the Ives 8145 is a 45 degree offset door pull with heavy duty mounting hardware in the ADA compliant EZ series, and the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting. Offset pulls carry the grip away from the door face rather than parallel to it, which is the usual answer when a gloved hand or a mitt is the deciding factor.
5) What door pull should be used instead of the Don-Jo 32 on a glass or storefront door where the pull mounts back to back?
The Don-Jo 32 is a single side commercial pull with a 10 inch center-to-center pattern. For a back to back set, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset door pull and the Deltana SSPORBB24 is a 24 inch back-to-back round offset pull. The Deltana OHP620 is an off-set handle pull sold as a back-to-back set for doors 1-1/8 inch to 1-3/8 inch thick. Back to back sets put a matching pull on both faces through one set of holes, which is what a glass or narrow stile door usually calls for.
6) The Don-Jo 32 is a fixed 10 inch center-to-center - what if the hole pattern in the door does not match?
The Don-Jo 32 is made to a single 10 inch center-to-center spacing with a 10-3/8 inch overall length, so an existing pattern either lines up or it does not. The ABH AB3330 series offset round end pull is offered with custom length options, which is the route when the holes in the door set the spacing rather than the other way around. The ABH AB3310 offset flat end pull is a commercial grade surface mount version of the same offset shape.
7) Is the Don-Jo 32 pull big enough to grab with a gloved hand?
Clearance behind the grip is 1-5/8 inches and total projection off the door face is 2 inches, which leaves room for a gloved hand or a full fist wrap. The grip bar itself is 3/8 inch by 1-1/4 inch, so it's a flattened bar rather than a round rod. That's the profile you want on a door people pull hard on all day.
8) What finishes does the Don-Jo 32 cast pull come in, and which one holds up in a school or hospital?
Four finishes: 605 polished brass, 613 oil rubbed bronze, 628 satin aluminum, and 630 satin stainless steel. For high-traffic institutional openings, 630 satin stainless is the one that hides fingerprints and wear, and 628 satin aluminum is the usual match to aluminum storefront and existing 628 exit hardware. Polished 605 shows every handprint on a busy door.
9) Is the Don-Jo 32 a straight pull or an offset pull?
The 32 is a straight cast pull, 10 inch CTC with a 10-3/8 inch overall body, mounted parallel to the door edge. If you need the grip kicked away from the frame, for example on a narrow stile door or where a closer arm crowds the pull, an offset pull is the better shape. The Ives 8145 45 degree offset and the Ives 8169 C style offset both cover that.
10) Does the Don-Jo 32 pull have a handing, and can I mount it horizontally?
No handing on the 32. It's a symmetrical straight pull with a 10 inch hole pattern, so it mounts the same on a left or right hand door and can run horizontally as a cross bar if the opening calls for it. Only the two mounting hole locations matter, at 10 inches apart.
11) Is a push plate a substitute for the Don-Jo 32 door pull?
No. The Don-Jo 32 is a pull with a 3/8 inch by 1-1/4 inch grip bar and 2 inch projection, meant for the side a person pulls. A push plate is a flat plate with no grip: the Trimco 1001-1 is a heavy duty push plate at 3 inch by 12 inch and the Trimco 1041 is a half-round push plate at 8 inch by 16 inch. They pair with a pull on a push/pull opening rather than replace one. The Trimco 1070 series classic push/pull plates at 3-1/2 inch by 15 inch cover both halves of that pairing.
12) Will a Cal-Royal PUL-175 cylinder pull do the same job as a Don-Jo 32?
They are different parts. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height, stainless steel construction - it mounts around a rim cylinder on a night latch application. The Don-Jo 32 is a general purpose commercial door pull with a 10 inch center-to-center pattern, 10-3/8 inch overall length and 1-5/8 inch clearance, drilled to its own two hole pattern with no cylinder involved. A door needing a grip beside a rim cylinder is the PUL-175 case; a door needing a full length pull is the 32.
13) What alternative to the Don-Jo 32 has a thicker grip bar for a high traffic entrance?
The Don-Jo 32 uses a 3/8 inch by 1-1/4 inch grip. For a larger diameter bar, the ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter, and the ABH AB7200 is a solid stainless steel flat end pull handle at 7/8 inch diameter with through-bolt mounting. Through-bolt mounting carries the load to both faces of the door, which is the detail to check on a heavily used entrance.
14) What is a longer pull than the Don-Jo 32 for a tall or oversized door?
The Don-Jo 32 runs 10-3/8 inch overall on a 10 inch center-to-center pattern. For a longer grip, the Deltana SSP1210 is a 12 inch contemporary pull for single side mounting, and the Deltana SSPOBB24 and SSPORBB24 are 24 inch back-to-back offset pulls in modern and round profiles. Length changes the reach a hand has on a tall leaf and also changes the hole pattern to be drilled, so confirm the spacing against the door before switching.
15) Can I use the Don-Jo 32 on a restroom door where people don't want to touch the handle?
The 32 is a conventional grip pull, so it's a hand-on-the-bar part. If the goal is a foot or forearm pull for a restroom exit, the Trimco 1035 Ultimate Restroom Pull is the heavy duty part made for that. Use the 32 where a standard commercial grip is what the opening calls for.
16) What pull matches the Don-Jo 32 for a restroom door?
The Don-Jo 32 is an ANSI J401 commercial pull in 605 polished brass, 613 oil rubbed bronze, 628 satin aluminum and 630 satin stainless steel. The Trimco 1035 Ultimate Restroom Pull is a heavy duty pull built specifically for restroom doors. The choice comes down to whether the opening wants a standard commercial pull carried through the rest of the building's hardware or a purpose-built restroom pull.
