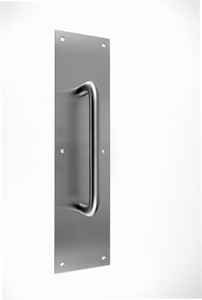

Don-Jo 7017 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

Don-Jo 7017 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

(No reviews yet) Write a Review

Model: 7017-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$70.46
$55.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7017 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

The Don-Jo 7017 Pull Plate with Round Pull is a commercial-grade door trim accessory designed to provide a clean, professional appearance and reliable functionality for high-traffic entryways. Model 7017 features a 15" length by 3-1/2" width plate with a 3/4" diameter round pull, a 2-1/4" projection, a 10" center-to-center (CTC) spacing, and 1-1/2" clearance, meeting ANSI J405 standards. Available in six finishes — 605, 606, 613, 628, 629, and 630 — this pull plate integrates seamlessly into a wide range of commercial door hardware configurations.

Key Features

  • Plate Dimensions: 15" length x 3-1/2" width provides a substantial mounting surface suited for commercial door applications.
  • Round Pull Specifications: 3/4" diameter round pull with a 2-1/4" projection and 1-1/2" clearance for comfortable, ergonomic grip.
  • Center-to-Center Spacing: 10" CTC mounting configuration (Model 7017) for precise, code-compliant installation on standard commercial doors.
  • Multiple Finish Options: Available in finishes 605, 606, 613, 628, 629, and 630 to coordinate with existing door hardware and architectural aesthetics.
  • ANSI J405 Compliant: Meets ANSI J405 standards, ensuring compatibility and performance in commercial door hardware applications.
  • Commercial-Grade Construction: Engineered for demanding commercial environments including offices, schools, healthcare facilities, and retail establishments.
  • Shelf Pack Quantity: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial Application Rated

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Don-Jo 7017?

Don-Jo pull plates are engineered to meet ANSI J405 standards, delivering consistent performance and a professional finish across a broad range of commercial door applications. The 7017 model's 15" x 3-1/2" plate with a 3/4" diameter round pull and 10" CTC spacing reflects Don-Jo's commitment to precise dimensional accuracy and durable construction for high-traffic environments. With six available finishes and a commercial-grade build, the Don-Jo 7017 is a reliable choice for architects, contractors, and facility managers seeking dependable door trim solutions.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7017-630 – Frequently Asked Questions

1) Is the Don-Jo 7017 heavy duty enough for a high traffic entrance, or should I look at something else?
The 7017 is a commercial-rated pull plate meant for offices, schools, healthcare and retail openings. If your spec calls out heavy duty specifically, or you want through-bolt mounting so the pull load goes through the door rather than into screws, look at the Ives 8302 heavy duty pull plate with through bolt mounting, or the Ives 8303 heavy duty pull plate, which is offered in 8 inch or 10 inch center-to-center and so matches the same 10 inch prep as the 7017.
2) What should I use if 10 inch center-to-center is too long for my door stile?
Several cast pull plates use shorter grip spacing than the 10 inch CTC of the Don-Jo 7017. The Trimco 1010 Series cast pull plate has a 5 inch CTC, the Trimco 1012 cast tapered pull plate and the Trimco 1013 round pull plate both use a 5.5 inch CTC pull, and the Trimco 1014 Series half-round pull plate uses a 6 inch CTC pull. All four put the fasteners closer together on a narrow stile.
3) I only need a push plate on the pull side opposite door, not a pull. What should I order instead?
A push plate has no grip, just a flat plate. The Delaney 3-1/2 inch x 15 inch push plate matches the 15 inch x 3-1/2 inch footprint of the Don-Jo 7017 without the round pull, so the two sides of a door read the same size. Delaney also makes a 4 inch x 16 inch push plate if you want a larger plate on the push side.
4) Is there a pull plate with the same plate size as the Don-Jo 7017 from another brand?
Yes. The Delaney 3-1/2 inch x 15 inch door pull plate uses the same plate footprint as the Don-Jo 7017, which is a 15 inch length by 3-1/2 inch width plate. If the door already has a 15 x 3-1/2 cutout or screw pattern from a prior plate, either one covers the same area.
5) Is the Don-Jo 7017 a substitute for the pull plate on a Detex exit device?
No. The Detex P/PN Series pull plate is made for Detex Value Series exit devices and is matched to that device, while the Don-Jo 7017 is a standalone 15 inch x 3-1/2 inch commercial door trim plate with a 3/4 inch round pull on 10 inch CTC. For a Value Series device opening, order the Detex P/PN part rather than the 7017.
6) For a high abuse door, is there a through bolted alternative to the Don-Jo 7017?
The Ives 8302 is a heavy duty pull plate with through bolt mounting, which carries the pull load through the door rather than into screws in one face. The Don-Jo 7017 is a commercial-grade 15 inch x 3-1/2 inch plate with a 3/4 inch round pull meeting ANSI J405. On doors taking heavy abuse, through bolting is the mounting method many specifiers call out.
7) Is a 3-1/2 inch wide pull plate narrow enough for an aluminum storefront stile?
At 3-1/2 inches wide the 7017 is a standard commercial door plate width, and it will sit on most narrow stile aluminum doors, but you need to measure your stile first. Anything under about 3-1/2 inches of flat stile face and the plate will overhang onto the glass stop. Wood and hollow metal doors take it without question.
8) How much hand clearance does the Don-Jo 7017 round pull give?
The round pull is 3/4 inch diameter with a 2-1/4 inch projection off the door face, leaving 1-1/2 inches of clearance between the grip and the plate. That is enough for a gloved hand, which matters on schools, hospitals and warehouse openings where the door gets pulled hundreds of times a day.
9) What does ANSI J405 mean on a pull plate, and does the 7017 meet it?
The Don-Jo 7017 is built to ANSI J405, which is the standard designation for this class of door pull trim. For a spec writer or an institutional buyer, that is the line you match against the hardware schedule when the drawing calls out a J405 pull.
10) Do I need a push plate on the other side, and does Don-Jo make a matching one?
On a single-acting door you normally pair a pull plate on the pull side with a push plate on the push side. The 7017 covers the pull side only; the round pull and plate come as one assembly. If you want a matched pair in one size from a single brand, Delaney lists a 3-1/2 x 15 inch pull plate and a 3-1/2 x 15 inch push plate in the same dimensions, and also a 4 x 16 inch set.
11) Can I use the Don-Jo 7017 as the pull trim on a door with an exit device?
The 7017 is general door trim, not device trim. If you are putting a pull on the outside of a door that has a Detex Value Series exit device, use the Detex P/PN Series pull plate made for those devices, since it is built to that device's mounting. For a plain pull-side door with no exit hardware, the 7017 is the straightforward choice.
12) My opening needs a wider plate than the Don-Jo 7017. What are my options?
The Don-Jo 7017 plate is 3-1/2 inches wide by 15 inches long. If the door stile or the marks left by the old hardware call for more coverage, the Delaney 4 inch x 16 inch door pull plate is a larger footprint, and Delaney makes a matching 4 inch x 16 inch push plate for the opposite face.
13) Does the Don-Jo 7017 have a round pull like the Trimco 1013, and how do they differ?
Both use a round grip. The Don-Jo 7017 has a 3/4 inch diameter round pull with a 2-1/4 inch projection, 1-1/2 inch clearance and 10 inch CTC on a 15 inch x 3-1/2 inch plate. The Trimco 1013 is a round heavy duty pull plate with a 5.5 inch CTC pull, so the grip spans a much shorter span. The Trimco 1014 Series is half-round rather than fully round, with a 6 inch CTC pull.
14) What finishes does the Don-Jo 7017 pull plate come in?
Six finishes: 605 polished brass, 606 satin brass, 613 oil rubbed bronze, 628 satin aluminum, 629 bright stainless, and 630 satin stainless steel. For matching a building where the rest of the trim is brushed stainless, 630 is the usual pick; 613 is the one that blends with dark bronze storefront and lever sets.
15) Is the Don-Jo 7017 sold as a pair or one at a time?
One at a time. The 7017 ships in a shelf pack of one, so if you are doing a pair of doors or both leaves of a vestibule, order the count you need per leaf rather than assuming a two-pack.
