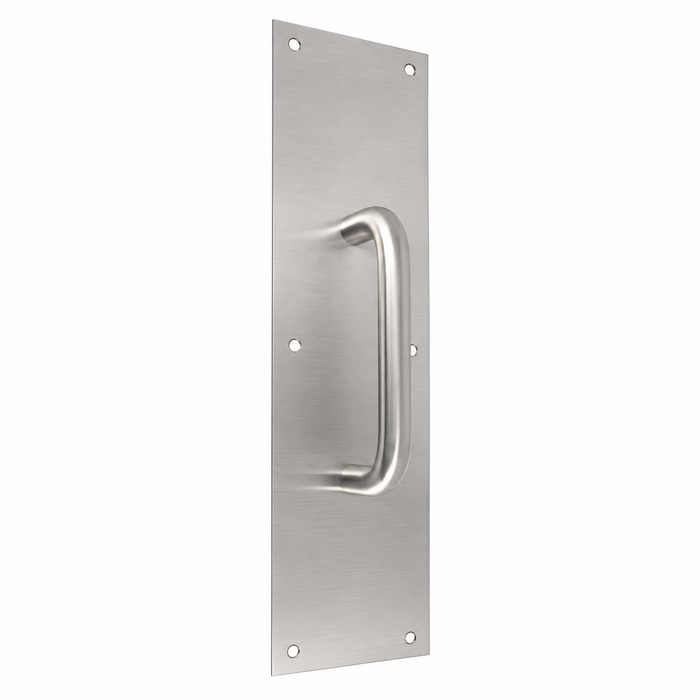

Don-Jo 7015 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

Don-Jo 7015 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

(No reviews yet) Write a Review

Model: 7015-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.30
$49.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7015 Pull Plate with Round Pull — 15" x 3-1/2" Commercial Door Trim

The Don-Jo 7015 Pull Plate with Round Pull is a commercial-grade door trim accessory engineered for professional installations requiring a clean, durable, and functional pull solution. Measuring 15" in length and 3-1/2" in width, the 7015 features a 3/4" diameter round pull with a 2-1/4" projection, 6" center-to-center (CTC) spacing, and 1-1/2" clearance, making it well-suited for high-traffic commercial door applications. Compliant with ANSI J405 standards, this pull plate is available in six finishes — 605, 606, 613, 628, 629, and 630 — to coordinate with a wide range of architectural hardware specifications.

Key Features

  • Plate Dimensions: 15" length x 3-1/2" width provides a substantial mounting surface for secure attachment to commercial doors.
  • Round Pull Specifications: 3/4" diameter pull with 2-1/4" projection and 1-1/2" clearance for a comfortable, ergonomic grip in demanding environments.
  • Center-to-Center Spacing: 6" CTC mounting configuration (model 7015) for precise, code-compliant installation alignment.
  • Multiple Finish Options: Available in finishes 605, 606, 613, 628, 629, and 630 to match existing architectural hardware and design requirements.
  • ANSI J405 Compliance: Meets ANSI J405 standards, ensuring compatibility and performance in commercial door hardware applications.
  • Commercial-Grade Construction: Designed for commercial use in high-traffic facilities where durability and consistent performance are essential.
  • Family Model Range: Part of a broader pull plate family (models 7011–7120) offering varied lengths (15" and 16"), widths (3-1/2" and 4"), diameters (5/8", 3/4", and 1"), and CTC options (5-1/2", 6", 8", and 10") for flexible specification across projects.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial Application Rated

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Offices
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 7015?

Don-Jo pull plates are engineered to meet the rigorous demands of commercial door hardware applications, with the 7015 model delivering ANSI J405-compliant performance in a versatile 15" x 3-1/2" form factor. With six available finishes and a precisely dimensioned 3/4" round pull at 6" CTC, this product offers the specification flexibility and consistent quality that architects, contractors, and facility managers rely on for professional-grade installations.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7015-628 – Frequently Asked Questions

1) What is the center-to-center on the Don-Jo 7015 pull, and will it line up with the pulls already on my other doors?
6 inch center to center on the 7015. If the pulls on your other openings are drilled at 5-1/2, 8, or 10 inches, the 7015 will not land on the existing holes. Don-Jo makes those spacings in the same 7011 to 7120 pull plate family, so match the CTC first and the plate size second. Among other brands, the Trimco 1014 half-round pull plate also runs 6 inch CTC, and the Trimco 1013 round pull plate is 5.5 inch CTC.
2) How far does the Don-Jo 7015 pull stick out from the door, and is there room for a gloved hand?
The round pull projects 2-1/4 inches off the plate with 1-1/2 inches of clearance behind the bar, and the bar itself is 3/4 inch diameter. That 1-1/2 inch clearance is the number that matters for a gloved or full-fist grip. It also matters on a door swinging into a corridor or beside a wall return, because 2-1/4 inches is what the pull adds to the door face.
3) Do I need a push plate on the other side, and is the Don-Jo 7015 sold as a pair?
The 7015 is a pull plate only, with the round pull on it. On a swing door you pull from one side and push from the other, so a push plate for the opposite face is a separate line item. Delaney sells a matching-size 3-1/2 inch by 15 inch push plate, and Emtek's Knoxville, Modern, and Petal lines come as push and pull plate sets if you want both faces from one series.
4) I have an exit device on the pull side of the door. Can I still use the Don-Jo 7015 pull plate?
Not usually. The 7015 is a standalone 15 inch pull plate that mounts to the door face, not trim that mounts to an exit device chassis. Where you need a pull working with a rim exit device, you want pull trim made for that device, such as the Detex P/PN Series pull plate for Value Series exit devices. Fitting a standalone plate over device trim is how you end up with fasteners landing in the wrong place.
5) Can I use the Don-Jo 7015 pull plate on a narrow stile aluminum storefront door?
Check your stile before ordering. The plate is 3-1/2 inches wide, and a typical narrow stile aluminum door has a lock stile around 2-1/8 to 2-1/2 inches, so a 3-1/2 inch plate will overhang onto the glass stop. On medium and wide stile aluminum doors, and on hollow metal or wood doors, 3-1/2 inches sits inside the stile with room. Where the stile is narrow, a plate is the wrong approach and an offset or straight pull without a backing plate is what fits.
6) What is the closest equivalent to a Don-Jo 7015 pull plate in a 3-1/2 inch by 15 inch size from another brand?
The Delaney 3-1/2" x 15" Door Pull Plate is built on the same 3-1/2 inch by 15 inch plate footprint as the Don-Jo 7015, so it covers the same area of the door face and lands in the same plate outline. The Don-Jo 7015 carries a 3/4 inch diameter round pull at 6 inch center-to-center with a 2-1/4 inch projection and 1-1/2 inch clearance. If a maintenance crew is standardizing a run of openings on one plate size, both brands are offered in that footprint.
7) I need a 6 inch center-to-center pull plate but not from Don-Jo. What else uses 6 inch CTC?
The Trimco 1014 Series is a half-round pull plate with a 6 inch center-to-center pull, matching the 6 inch CTC of the Don-Jo 7015. The pull profiles differ: the Trimco 1014 pull is half-round, while the 7015 pull is a 3/4 inch diameter round bar with a 2-1/4 inch projection. If existing holes in the door are drilled on 6 inch centers, both share that hole pattern.
8) For a heavy traffic entrance, what is a heavier duty alternative to the Don-Jo 7015 pull plate?
The Ives 8302 is a heavy duty pull plate with through bolt mounting, which anchors the pull through the door rather than into the face only. The Ives 8303 is also heavy duty and is offered with 8 inch or 10 inch center-to-center mounting, a wider grip spread than the 6 inch CTC on the Don-Jo 7015. Trimco also builds cast heavy duty plates in the 1010, 1012, and 1013 Series. For a stairwell or dock door that gets pulled hundreds of times a day, the through bolt option is the detail to look at.
9) Is a push plate the same as the Don-Jo 7015 pull plate?
No. The Don-Jo 7015 is a plate with a 3/4 inch diameter round pull handle attached, projecting 2-1/4 inches off the face with 1-1/2 inch clearance for the hand. A push plate such as the Delaney 3-1/2" x 15" Push Plate is a flat plate with no handle, meant for the swing side where the door is pushed open. On a single door you typically order one of each, the pull on the pull side and the push on the push side. Ordering two push plates leaves the pull side with nothing to grab.
10) My door has an existing pull drilled at 5 inch or 5-1/2 inch centers. What fits that instead of the Don-Jo 7015?
The Don-Jo 7015 pull is set at 6 inch center-to-center, so it will not land on 5 inch or 5-1/2 inch holes. The Trimco 1010 Series is a cast pull plate with a 5 inch CTC pull. For 5-1/2 inch centers, the Trimco 1012 is a cast tapered heavy duty plate with a 5.5 inch CTC pull and the Trimco 1013 is a round heavy duty plate with a 5.5 inch CTC pull. Confirm the existing hole spacing on the door before ordering, since the plate hides the old holes only if the new pull lands on them or the plate covers them.
11) What does ANSI J405 mean on a pull plate, and does the Don-Jo 7015 meet it?
The 7015 is ANSI J405 compliant. J405 is the ANSI/BHMA A156.6 designation for a pull plate of this configuration, which is what a spec writer puts on the door hardware schedule instead of a brand part number. If your drawing calls out J405, the 7015 answers it, and you then pick finish and CTC to suit the rest of the opening.
12) What finishes does the Don-Jo 7015 pull plate come in for matching existing building hardware?
Six finishes across the 7015: 605 polished brass, 606 satin brass, 613 oil rubbed bronze, 628 satin aluminum, 629 bright stainless steel, and 630 satin stainless steel. For a mixed commercial building, 630 satin stainless is the usual match to lever and exit device hardware, and 628 satin aluminum is what pairs with clear anodized aluminum storefront.
13) Is a pull plate like the Don-Jo 7015 heavy duty enough for a school or hospital corridor door?
The 7015 is a commercial-rated pull plate meeting ANSI J405, and Don-Jo lists it for schools, healthcare, government, retail, and industrial openings. On a truly abusive opening, through-bolt mounting is the thing to ask about rather than plate size, because screws into a hollow metal face are what fail first on a pulled door. The Ives 8302 heavy duty pull plate is specified with through bolt mounting if that is your concern, and the Trimco 1010, 1012, and 1013 cast plates are heavy duty as well.
14) What is the difference between the Don-Jo 7015 and the other pull plates in the 7011 to 7120 range?
They differ on four things: plate length (15 or 16 inches), plate width (3-1/2 or 4 inches), pull bar diameter (5/8, 3/4, or 1 inch), and center to center (5-1/2, 6, 8, or 10 inches). The 7015 is the 15 by 3-1/2 inch plate with a 3/4 inch bar at 6 inch CTC. Pick by the CTC your door is already drilled for, then by whether the wider 4 inch plate is needed to cover existing marks.
15) What pull plate should I use on a wider 4 inch by 16 inch door stile instead of the Don-Jo 7015?
The Don-Jo 7015 plate is 15 inches long and 3-1/2 inches wide. Where the stile or the existing plate outline calls for a larger footprint, the Delaney 4" x 16" Door Pull Plate covers that size. That matters when you are replacing an older plate and need to hide the existing screw holes and wear ring behind the new plate.
16) Can I use the Detex P/PN Series pull plate in place of a Don-Jo 7015?
They serve different openings. The Detex P/PN Series pull plate is made for Detex Value Series exit devices, so it belongs on a door already carrying that exit device. The Don-Jo 7015 is a standalone 15 inch by 3-1/2 inch pull plate with a 3/4 inch round pull at 6 inch CTC, mounted to the door face on its own. On a plain office or classroom door with no exit device, the 7015 is the applicable part.
17) What are the options if I want a decorative pull plate rather than the plain commercial look of the Don-Jo 7015?
Emtek builds push and pull plates in the Knoxville, Modern, and Petal series, the Petal being lost wax cast bronze. Those carry styled plate profiles for a designed entry. The Don-Jo 7015 is a commercial door trim part in a plain 15 inch by 3-1/2 inch rectangle with six finishes: 605, 606, 613, 628, 629, and 630. For a boutique hotel or a leasing office entry, the Emtek families give a decorative face; for a back-of-house or classroom run, the 7015 profile is what matches the rest of the building.
18) Which pull plate gives a wider hand spread than the Don-Jo 7015 for a heavy door that needs a two-handed pull?
The Ives 8303 heavy duty pull plate is offered with 8 inch or 10 inch center-to-center mounting, a wider spread than the 6 inch CTC pull on the Don-Jo 7015. A wider grip spread suits a heavy leaf where an operator wants more leverage or room for a gloved hand. The 7015 pull is a 3/4 inch diameter round bar with 1-1/2 inch clearance behind it.
19) Do I need matching push and pull plates from the same brand on a pair of doors?
Not mechanically, but the plate footprint and finish drive the look. The Don-Jo 7015 is a 15 inch by 3-1/2 inch pull plate in six finishes: 605, 606, 613, 628, 629, and 630. Delaney offers a 3-1/2" x 15" Push Plate and a 3-1/2" x 15" Door Pull Plate on the same footprint, and also a 4" x 16" Push Plate and 4" x 16" Door Pull Plate as a matched larger pair. If a facility is standardizing a corridor, pick one footprint and one finish code across all leaves so the openings read as a set.
