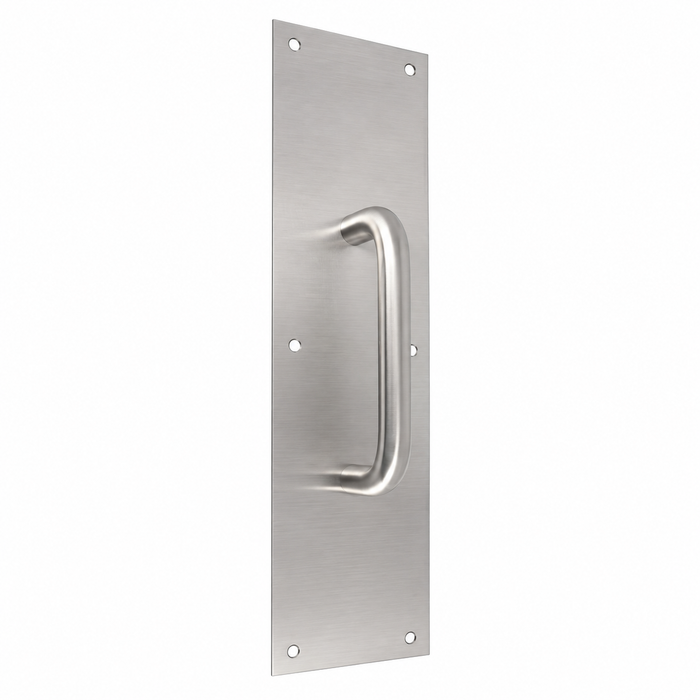

Don-Jo 7119 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

Don-Jo 7119 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

(No reviews yet) Write a Review

Model: 7119-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.10
$94.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7119 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

The Don-Jo 7119 Pull Plate with Round Pull is a commercial-grade door trim accessory designed to provide a clean, professional appearance and reliable functionality on high-traffic doors. Measuring 16" in length and 4" in width, the 7119 features a 1" diameter round pull with a 2-1/4" projection, 8" center-to-center spacing, and 2" clearance, making it well-suited for demanding commercial environments. Compliant with ANSI J405, this pull plate is available in six finishes — 605, 606, 613, 628, 629, and 630 — to coordinate with a wide range of door hardware installations.

Key Features

  • Plate Dimensions: 16" length x 4" width provides a substantial, professional-grade mounting surface for commercial door applications.
  • Round Pull Specifications: Features a 1" diameter round pull with a 2-1/4" projection and 2" clearance for a comfortable, ergonomic grip.
  • Center-to-Center Spacing: 8" center-to-center (CTC) pull spacing ensures compatibility with standard commercial door preparations.
  • Multiple Finish Options: Available in six finishes — 605, 606, 613, 628, 629, and 630 — to match existing door hardware and architectural requirements.
  • ANSI J405 Compliance: Meets ANSI J405 standards, confirming suitability for commercial door hardware applications.
  • Commercial-Grade Construction: Engineered for use in commercial settings where durability and consistent performance are essential.
  • Broad Model Family: Part of an extensive pull plate family (models 7011–7120) offering a range of plate sizes, pull diameters, projections, and CTC dimensions to suit varied door configurations.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial Application Rated

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 7119?

Don-Jo pull plate products are engineered to meet the rigorous demands of commercial door hardware applications, with the 7119 delivering a 16" x 4" plate profile, a 1" diameter round pull, and ANSI J405 compliance for verified performance standards. With six available finishes and a broad family of compatible models, Don-Jo provides the flexibility and reliability that commercial installers and facility managers depend on for consistent, long-lasting results.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7119-630 – Frequently Asked Questions

1) Will the Don-Jo 7119 pull plate line up with my existing 8 inch center-to-center pull holes?
Yes. The 7119 uses 8 inch center-to-center pull spacing, which is the common commercial pull prep, so it drops onto doors already bored at 8 inch CTC. If your existing prep is 5 or 5-1/2 inch CTC, this plate will not line up: the Trimco 1010 Series is a 5 inch CTC cast pull plate and the Trimco 1013 is a 5-1/2 inch CTC round pull.
2) What size is the Don-Jo 7119 plate, and will it cover the marks left by my old pull plate?
The plate measures 16 inches by 4 inches. That is the standard commercial pull plate footprint, so it covers wear rings and old fastener marks from most 4 x 16 plates. A Delaney 4 x 16 pull plate is the same footprint if you need to match an opening on another door; a 3-1/2 x 15 plate like the Delaney 3-1/2 x 15 is smaller and will not hide a 4 x 16 shadow.
3) Is the Don-Jo 7119 pull plate ANSI compliant for a spec job?
It is ANSI J405 compliant, which is the pull plate designation architects call out on commercial door hardware schedules. That plus the 16 x 4 plate size and 8 inch CTC is normally all a hardware schedule asks for on a pull plate line item.
4) What is the closest equivalent to the Don-Jo 7119 pull plate in another brand?
The Don-Jo 7119 is a 16" x 4" pull plate with a 1" diameter round pull on 8" centers. The Delaney 4" x 16" Door Pull Plate matches the same plate footprint, and the Ives 8303 heavy duty pull plate is offered with 8" or 10" center-to-center pull mounting, so it can be set to the same 8" CTC prep the 7119 uses.
5) What should I order for the push side of the door if the pull side gets a Don-Jo 7119?
The 7119 is a pull plate only — it carries a 1" diameter round pull with a 2-1/4" projection. A flat push plate handles the opposite face: Delaney offers a 4" x 16" Push Plate that matches the 7119 plate footprint, and a 3-1/2" x 15" Push Plate for a smaller profile.
6) How much hand clearance does the Don-Jo 7119 round pull give behind the grip?
The round pull is 1 inch in diameter with a 2-1/4 inch projection off the plate face and 2 inches of clearance between the grip and the door. That is enough room for a gloved hand, which is why it holds up in warehouse and healthcare traffic.
7) Which finishes can I actually order the Don-Jo 7119 in?
Three finishes are orderable: polished brass (605), satin aluminum (628), and satin stainless steel (630). The 7119 is catalogued across six finish numbers (605, 606, 613, 628, 629, 630), but the stocked combinations are those three.
8) Do I need a matching push plate on the opposite side of the door?
The 7119 is the pull side only, a plate with a round pull. For the push side of the same opening you order a flat push plate separately. If you want them dimensionally matched, Delaney sells a 4 x 16 push plate and a 3-1/2 x 15 push plate in the same footprints as its pull plates.
9) I need pull plates standardized across a building. Can I get other sizes and pull spacings in the same family?
Yes. The 7119 sits in the Don-Jo 7011 through 7120 pull plate family, which spans different plate sizes, pull diameters, projections, and center-to-center dimensions. That lets you keep one brand and one finish across openings that have different existing preps.
10) Is this pull plate heavy enough for a school or hospital entrance, or should I look at something else?
The 7119 is rated for commercial use and is used in schools, healthcare, retail, warehouses, and government buildings. If your spec calls for a heavy duty pull plate or through-bolt mounting specifically, the Ives 8302 is a heavy duty pull plate with through bolt mounting and the Ives 8303 is heavy duty with 8 or 10 inch center-to-center, which keeps you on the same 8 inch prep.
11) Will a Detex P Series pull plate work in place of a Don-Jo 7119?
Not interchangeably. The Don-Jo 7119 is a general-purpose 16" x 4" commercial pull plate on 8" centers, while the Detex P/PN Series pull plate is made to mount with Detex Value Series exit devices. Use the Detex part where it is paired with that exit device, and the 7119 on standard commercial door prep.
12) Is the Don-Jo 7119 a through-bolted pull plate?
The Don-Jo 7119 is specified as a 16" x 4" commercial pull plate with a 1" diameter round pull on 8" centers and ANSI J405 compliance. If through-bolt mounting is a requirement on the drawing, the Ives 8302 heavy duty pull plate is built specifically with through bolt mounting.
13) What pull plate should I use on a decorative or residential-style entry instead of the Don-Jo 7119?
The Don-Jo 7119 is a commercial-rated pull plate in finishes such as polished brass, satin aluminum and satin stainless steel. For decorative openings, Emtek offers push and pull plate sets in the Modern and Knoxville series, plus a lost wax cast bronze Petal series.
14) My existing pull plate is 3-1/2" x 15" — will the Don-Jo 7119 cover the same area?
The Don-Jo 7119 plate is 16" long and 4" wide, so it is slightly larger in both directions than a 3-1/2" x 15" plate such as the Delaney 3-1/2" x 15" Door Pull Plate. It will cover the older plate's footprint, but the 8" center-to-center pull holes must line up with the door prep.
15) I want a decorative pull plate for a storefront or upscale entry, not a plain commercial one. What else is there?
The Don-Jo 7119 is a plain commercial profile, a rectangular plate with a straight round pull. For a decorative look, Emtek offers Knoxville, Modern, and lost wax cast bronze Petal push and pull plates. Trimco also makes cast profiles, including the 1012 tapered and the 1014 half-round pull.
16) Which pull plates offer a shaped rather than round pull?
The Don-Jo 7119 carries a 1" diameter round pull with a 2-1/4" projection and 2" clearance. For a different grip profile, the Trimco 1012 is a cast tapered pull plate and the Trimco 1014 uses a half-round pull, while the Trimco 1013 stays with a round pull.
