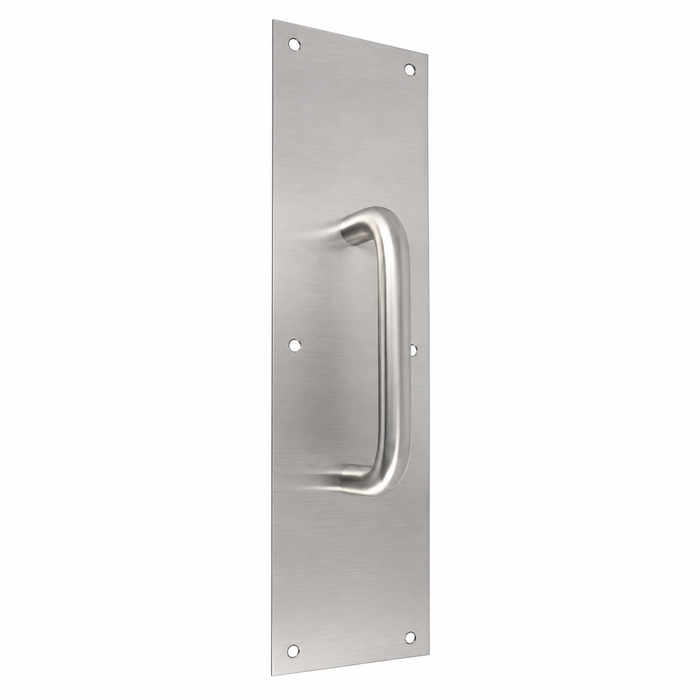

Don-Jo 7111 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

Don-Jo 7111 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

(No reviews yet) Write a Review

Model: 7111-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.86
$44.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7111 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

The Don-Jo 7111 Pull Plate with Round Pull is a commercial-grade door trim accessory designed for professional installations requiring a clean, durable, and functional pull solution. Measuring 16" in length and 4" in width, the 7111 features a 2" projection, a 5-1/2" center-to-center (CTC) spacing, a 5/8" diameter round pull, and 1-3/8" of clearance. Available in six finishes — 605, 606, 613, 628, 629, and 630 — and compliant with ANSI J405, this pull plate is engineered to meet the demands of high-traffic commercial environments.

Key Features

  • Plate Dimensions: 16" length x 4" width provides a substantial mounting surface suited for commercial door applications.
  • Round Pull Specifications: Features a 5/8" diameter round pull with a 2" projection and 1-3/8" clearance for comfortable, ergonomic grip.
  • Center-to-Center Spacing: 5-1/2" CTC spacing ensures compatibility with standard commercial door preparations.
  • Multiple Finish Options: Available in finishes 605, 606, 613, 628, 629, and 630 to coordinate with a wide range of door hardware and architectural styles.
  • ANSI J405 Compliant: Meets ANSI J405 standards, confirming suitability for professional commercial installations.
  • Broad Model Family: Part of an extensive pull plate family (models 7011–7120) offering varied lengths, widths, projections, CTC spacings, diameters, and clearances to suit diverse door configurations.
  • Commercial-Grade Construction: Designed and rated for commercial use, delivering long-term durability in demanding, high-traffic settings.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial-Grade Product

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 7111?

Don-Jo pull plate products are engineered for professional-grade performance, combining ANSI J405 compliance with a versatile range of finish options and precise dimensional specifications. The 7111 model's 16" x 4" plate and 5/8" round pull deliver a reliable, polished solution for commercial door hardware installations where consistent quality and long-term durability are essential.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7111-630 – Frequently Asked Questions

1) Will the Don-Jo 7111 pull plate mount to an existing pull prep with 5-1/2 inch hole spacing?
Yes. The 7111 uses 5-1/2 inch center-to-center spacing between the pull mounting points, which is the common commercial pull prep. If your door is drilled at 5-1/2 CTC, the pull lines up. The plate itself covers 16 inches by 4 inches, so it will hide an older plate footprint of the same size or smaller.
2) How far does the Don-Jo 7111 round pull stick out from the door, and is there enough hand clearance?
The pull projects 2 inches from the plate face with 1-3/8 inches of clearance behind the grip, on a 5/8 inch diameter round bar. That clearance is what decides whether a gloved hand fits, and it matters on openings near a wall return or a second leaf where a 2 inch projection could catch.
3) Does the Don-Jo 7111 meet the ANSI spec our door schedule calls out?
The 7111 is built to ANSI J405, the designation for pull plates, and Don-Jo lists it as a commercial-grade product. If your hardware schedule calls for a J405 pull plate at 16 x 4 with a 5-1/2 CTC pull, this is the match.
4) My doors are drilled for 8 inch center-to-center pulls. Can I still use the Don-Jo 7111?
No. The 7111 is fixed at 5-1/2 inch CTC and will not reach an 8 inch prep. For that spacing, look at the Ives 8303 heavy duty pull plate, which is offered with 8 inch or 10 inch center-to-center mounting.
5) My door only needs a push side - is there a plate without the pull?
No. The Don-Jo 7111 is a pull plate with a 5/8 inch diameter round pull mounted on a 16 inch by 4 inch plate, so it is meant for the pull side of the opening. For the push side, Delaney offers a 4 inch x 16 inch Push Plate in the same plate size, and a 3-1/2 inch x 15 inch Push Plate for narrower stiles. Emtek's Knoxville, Modern and Petal series are sold as push and pull plate sets if you want both faces from one design family.
6) What is the closest equivalent to the Don-Jo 7111 pull plate if I need a heavy duty cast pull at the same 5-1/2 inch center-to-center?
The Trimco 1013 is a round heavy duty pull plate with a 5.5 inch center-to-center pull, matching the 5-1/2 inch CTC of the Don-Jo 7111 and keeping the round pull profile. The Trimco 1012 also uses a 5.5 inch CTC pull, but its plate is a cast tapered design rather than a flat plate with a round pull. Both Trimco models are rated heavy duty, while the Don-Jo 7111 is a commercial-grade 16 inch by 4 inch plate with a 5/8 inch diameter round pull, 2 inch projection and 1-3/8 inch clearance.
7) I need a pull plate the same size as the Don-Jo 7111 but from a different manufacturer - what matches 16 by 4?
The Delaney 4 inch x 16 inch Door Pull Plate (DLY-490xx0) is built in the same 4 by 16 plate size as the Don-Jo 7111, which measures 16 inches long by 4 inches wide. If the opening needs a narrower plate, Delaney also builds a 3-1/2 inch x 15 inch pull plate. The Don-Jo 7111 carries ANSI J405 compliance and comes in 605, 606, 613, 628, 629 and 630 finishes.
8) The 5-1/2 inch center-to-center on the Don-Jo 7111 does not match my existing door prep - what else can I use?
If the existing bolt holes are wider than the 5-1/2 inch CTC of the Don-Jo 7111, the Ives 8303 heavy duty pull plate is offered in 8 inch or 10 inch center-to-center mounting. For a 5 inch spread, the Trimco 1010 Series cast pull plate uses a 5 inch CTC, and the Trimco 1014 Series half-round pull plate uses a 6 inch CTC. The Don-Jo 7111 family also spans models 7011 through 7120 in varied lengths, widths, projections and CTC spacings.
9) What finishes does the Don-Jo 7111 pull plate come in?
Four are orderable: Polished Brass, Oil Rubbed Bronze, Satin Aluminum, and Satin Stainless Steel. The 7111 is specified across ANSI finish codes 605, 606, 613, 628, 629 and 630, so match your existing trim by code if you are standardizing a building on one look.
10) Will the Don-Jo 7111 hold up on a high traffic entrance like a school or hospital corridor?
It is a commercial-grade pull plate built to ANSI J405 and specified for offices, schools, healthcare, retail, warehouses, multi-tenant residential and government buildings. If your opening is abused enough that you are replacing pulls yearly, a heavy duty cast alternative like the Ives 8302 with through bolt mounting is worth pricing against it.
11) If the 7111 is not the right size, does Don-Jo make other pull plates in the same style?
Yes. The 7111 sits in a Don-Jo pull plate family running from model 7011 through 7120, with different plate lengths and widths, pull projections, center-to-center spacings, bar diameters and clearances. If you need the same round pull look but a different plate size or CTC, pick the sibling model that matches your door prep.
12) For a high-abuse opening where the pull gets yanked hard, is there something more robust than the Don-Jo 7111?
The Ives 8302 is a heavy duty pull plate with through bolt mounting, which carries the pull load through the door rather than into the plate fasteners alone. The Ives 8303 is also heavy duty, with 8 inch or 10 inch center-to-center mounting. Trimco's 1010, 1012 and 1013 cast pull plates are likewise rated heavy duty. The Don-Jo 7111 is a commercial-grade plate meeting ANSI J405, built for high-traffic commercial environments.
13) Will the Don-Jo 7111 work as the pull trim on an exit device?
The Don-Jo 7111 is a standalone 16 inch by 4 inch pull plate with a 5/8 inch round pull for commercial door trim, not exit device trim. If you are trimming an exit device, the Detex P/PN Series pull plate is built specifically for Detex Value Series exit devices and will match that device's prep. Use the 7111 where you are pulling a door that has no device on the opposite face.
14) What is the difference between the Don-Jo 7111 and the Trimco 1014?
The Don-Jo 7111 uses a 5/8 inch diameter round pull on a 16 inch by 4 inch plate at 5-1/2 inch center-to-center, with a 2 inch projection and 1-3/8 inch clearance. The Trimco 1014 Series is a half-round pull plate with a 6 inch center-to-center pull, so the grip profile and the bolt spread both differ. If you are standardizing a building on one hand feel, pick one profile and carry it across the openings.
15) I want a decorative pull plate for a boutique or hospitality entry rather than the plain commercial look - what are my options?
Emtek offers push and pull plates in the Knoxville and Modern series, and a Lost Wax Cast Bronze Petal series, for openings where the trim is part of the design. The Don-Jo 7111 takes the opposite approach: a plain 16 inch by 4 inch plate with a 5/8 inch diameter round pull, ANSI J405 compliant, offered in 605, 606, 613, 628, 629 and 630 finishes to coordinate with existing commercial hardware.
