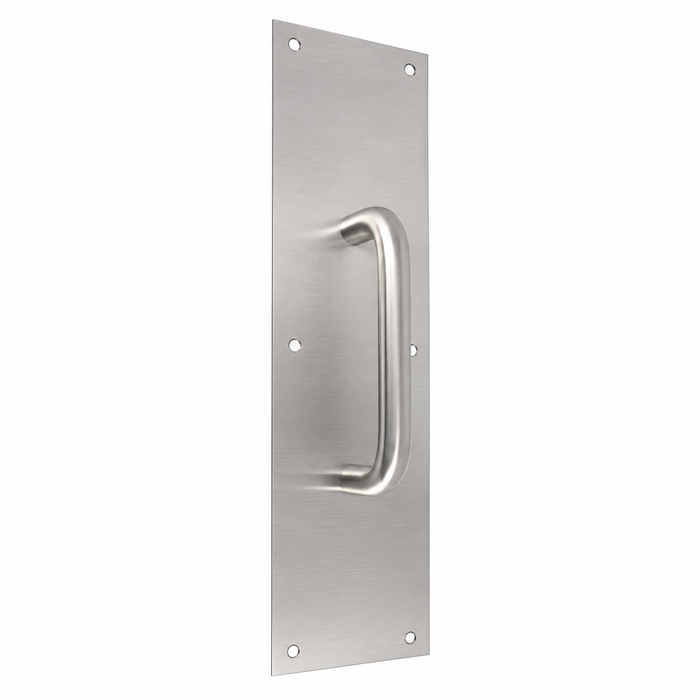

Don-Jo 7115 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

Don-Jo 7115 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

(No reviews yet) Write a Review

Model: 7115-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.60
$51.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7115 Pull Plate with Round Pull — 16" x 4" Commercial Door Trim

The Don-Jo 7115 Pull Plate with Round Pull is a commercial-grade door trim accessory designed to provide a clean, professional appearance and reliable functionality on high-traffic doors. Measuring 16" in length and 4" in width, the 7115 features a 3/4" diameter round pull with a 2-1/4" projection, 6" center-to-center (CTC) spacing, and 1-1/2" clearance. Compliant with ANSI J405, this pull plate is available in six finishes — 605, 606, 613, 628, 629, and 630 — to coordinate with a wide range of commercial door hardware installations.

Key Features

  • Plate Dimensions: 16" length x 4" width provides a substantial, professional-grade mounting surface suited for commercial door applications.
  • Round Pull Specifications: 3/4" diameter round pull with 2-1/4" projection and 1-1/2" clearance for a comfortable, ergonomic grip.
  • Center-to-Center Spacing: 6" CTC pull mounting distance ensures proper alignment and compatibility with standard commercial door preparations.
  • Multiple Finish Options: Available in six finishes — 605, 606, 613, 628, 629, and 630 — to match existing door hardware and architectural requirements.
  • ANSI J405 Compliance: Meets ANSI J405 standards, confirming suitability for commercial door hardware applications.
  • Commercial-Grade Construction: Engineered for demanding commercial environments including offices, schools, healthcare facilities, and retail establishments.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Certifications & Compliance

  • ANSI J405 Compliant

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 7115?

Don-Jo pull plates are engineered to meet the demands of commercial door hardware applications, with the 7115 delivering precise dimensional consistency — 16" x 4" plate, 3/4" diameter pull, 2-1/4" projection, and 6" CTC — backed by ANSI J405 compliance. With six available finishes and a robust commercial-grade build, the Don-Jo 7115 is a dependable choice for architects, contractors, and facility managers seeking professional-quality door trim solutions.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7115-628 – Frequently Asked Questions

1) Will the Don-Jo 7115 pull plate cover the old prep holes from the pull I'm replacing?
Coverage depends on the pull's hole spacing, not the plate. The 7115 plate is 16 inches long by 4 inches wide, and the round pull mounts on 6 inch centers. If the pull you are removing was also 6 inch CTC, the new pull sits over the same two holes. If it was a different spacing, the 16 x 4 plate is large enough to hide old holes as long as they fall inside that footprint, and you drill fresh 6 inch centers.
2) Does the Don-Jo 7115 meet the ANSI trim designation my architect specified?
The 7115 is built to ANSI J405, the designation for a pull plate with an attached pull. If the hardware schedule calls out J405 trim at 16 x 4 with a 6 inch CTC pull, this is the part that answers it.
3) Will a 4 inch wide pull plate fit on a narrow stile aluminum door?
Measure the stile first. The 7115 plate is 4 inches wide, and a typical narrow stile aluminum entrance runs about 2 to 2-1/2 inches of stile face, so this plate will overhang onto the glass stop. It suits wide stile aluminum, hollow metal, and wood doors. On a narrow stile opening you want a narrower plate, such as the Delaney 3-1/2 x 15 pull plate, or a plain offset pull with no plate behind it.
4) What is the closest match to a Don-Jo 7115 pull plate if I need the same 6 inch center-to-center pull spacing from another manufacturer?
The Trimco 1014 Series is the direct counterpart on spacing - it is a half-round pull plate built with a 6 inch CTC pull, the same center-to-center dimension as the Don-Jo 7115. The difference is pull shape: the 7115 uses a 3/4 inch diameter round pull with a 2-1/4 inch projection and 1-1/2 inch clearance, while the 1014 uses a half-round pull profile. If the door is already drilled for 6 inch CTC, either will land on the existing holes.
5) I need a 4 inch by 16 inch pull plate but not the Don-Jo - what else comes in that plate size?
The Delaney 4 inch x 16 inch Door Pull Plate (DLY-490xx0) is sized to the same plate footprint as the Don-Jo 7115, which measures 16 inches long by 4 inches wide. Delaney also builds a 4 inch x 16 inch Push Plate (DLY-490xxx) if you are doing a push/pull pair on a swinging door and want the trim to match on both faces.
6) Will a Trimco 1010 or 1012 drop into the same holes as a Don-Jo 7115?
No. The Don-Jo 7115 uses 6 inch center-to-center pull spacing. The Trimco 1010 Series cast pull plate is built at 5 inch CTC and the Trimco 1012 cast tapered pull plate at 5.5 inch CTC, so neither reuses the 7115 hole pattern. If you are replacing a 7115 and want to avoid re-drilling, stay with a 6 inch CTC plate such as the Trimco 1014 Series.
7) Is a 6 inch CTC pull big enough for a hand in a glove, or do I need a bigger grip?
The 7115's round pull is 3/4 inch in diameter with 1-1/2 inch clearance behind it and a 2-1/4 inch projection off the plate face. That 1-1/2 inch clearance is the gap your fingers wrap into, which is enough for a gloved hand on a standard commercial door. If you want a longer grab on a heavy or oversized door, look at a pull plate with wider centers, such as the Ives 8303 offered in 8 inch or 10 inch center-to-center.
8) What finishes does the Don-Jo 7115 pull plate come in, and which one matches my existing aluminum storefront hardware?
Six finishes are offered on the 7115: 605 polished brass, 606 satin brass, 613 oil rubbed bronze, 628 satin aluminum, 629 bright stainless, and 630 satin stainless. For an aluminum storefront with clear anodized hardware, 628 satin aluminum is the match. If the rest of the openings are stainless lever trim or push bars, go 630 satin stainless.
9) Do I need a push plate on the other side of the door with this pull plate?
Typically yes. The 7115 goes on the pull side of a swinging commercial door; the push side normally gets a plain push plate in the matching finish so palms are not hitting bare door face. ZenSupply carries push plates sized to pair with it, including the Delaney 4 x 16 push plate, which matches the 7115's plate footprint. Order both in the same finish code.
10) How is the Don-Jo 7115 different from a heavy duty cast pull plate like the Trimco 1013?
Both are pull plates with a round pull, but they are not the same class of part. The 7115 is a commercial-grade 16 x 4 plate with a 3/4 inch round pull on 6 inch centers, built to ANSI J405. The Trimco 1013 is a cast heavy duty pull plate with a 5-1/2 inch CTC pull, and the Ives 8302 is a heavy duty plate using through-bolt mounting. If your spec calls for through-bolting into an abused opening, those are the direction to go; for standard office, school, retail, and healthcare openings the 7115 is the straightforward choice.
11) I want a round pull profile like the Don-Jo 7115 but in a cast heavy duty plate - what is the equivalent?
The Trimco 1013 is a round heavy duty pull plate, matching the 7115 on pull shape - the Don-Jo 7115 uses a 3/4 inch diameter round pull. The mounting differs: the Trimco 1013 is built with a 5.5 inch CTC pull against the 7115's 6 inch CTC, so plan the hole layout accordingly rather than assuming a swap.
12) Is an Emtek push and pull plate an alternative to the Don-Jo 7115 for a commercial lobby?
They serve different design briefs. The Don-Jo 7115 is a commercial-grade plate meeting ANSI J405, offered in finishes 605, 606, 613, 628, 629 and 630 to coordinate with standard commercial hardware. Emtek's Knoxville, Modern, and Lost Wax Cast Bronze Petal push and pull plates are decorative architectural series - the Petal is lost wax cast bronze. Choose the Emtek lines when the appearance drives the spec and the Don-Jo 7115 when you are matching a commercial finish schedule.
13) What do I pair with the Don-Jo 7115 on the push side of the door?
The 7115 is a pull plate - a 16 inch x 4 inch plate with a 3/4 inch round pull - so it only handles the pull side. For the push face, Delaney's 4 inch x 16 inch Push Plate (DLY-490xxx) carries the same plate footprint, or the 3-1/2 inch x 15 inch Push Plate (DLY-4905xx) if the stile is narrow. Emtek's Knoxville and Modern series are sold as push and pull plate sets if you want both faces from one decorative line.
14) Can I use the Don-Jo 7115 on a door with a rim exit device?
On the pull side, yes, provided the plate does not collide with the exit trim. The 7115 is a 16 x 4 plate and mounts on the door face, so it goes where dummy pull trim would sit on an exit-device opening. If you are outfitting a Detex Value Series exit device, the Detex P/PN Series pull plate is made specifically to mount to that device rather than as general door trim.
15) Is the Don-Jo 7115 sold in pairs or individually?
Each 7115 order is a single pull plate, shelf pack of 1. For a double door you need two, and for a pull-and-push set you order the push plate separately.
16) I need decorative pull plates for a boutique hotel entry, not plain commercial trim. What else is there?
The 7115 is straight commercial door trim, plain plate and round pull, meant for offices, schools, healthcare, and retail. For a decorative look, ZenSupply carries the Emtek push and pull plate lines: the Knoxville and Modern series, and the Petal series in lost wax cast bronze.
