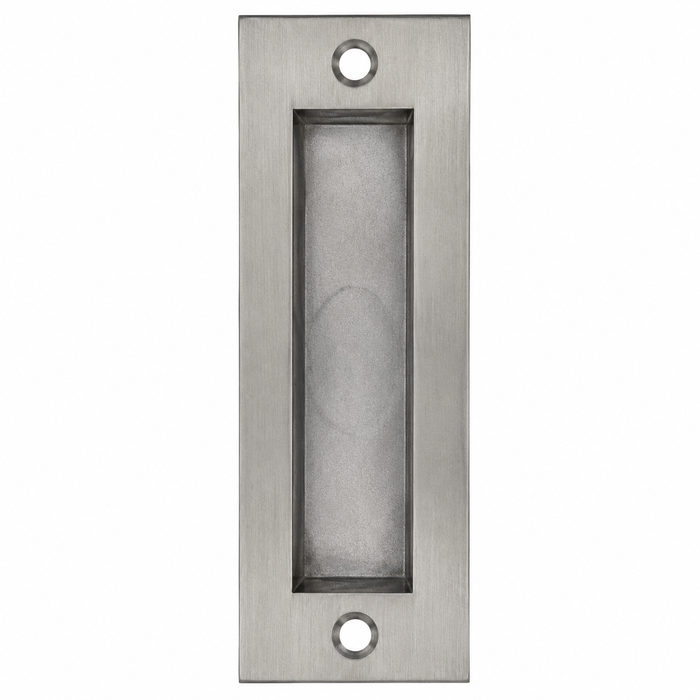

Don-Jo BD18 Flush Cup Pull for Sliding and Barn Doors, 7" Length x 2.485" Width, 5" x 1.245" Cutout

Don-Jo BD18 Flush Cup Pull for Sliding and Barn Doors, 7" Length x 2.485" Width, 5" x 1.245" Cutout

(No reviews yet) Write a Review

Model: BD18-622
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.90
$32.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo BD18 Flush Cup Pull for Sliding and Barn Doors, 7" Length x 2.485" Width, 5" x 1.245" Cutout

The Don-Jo BD18 Flush Cup Pull is a commercial-grade sliding door and barn door hardware solution engineered for clean, low-profile operation. Measuring 7" in overall length and 2.485" in width, this flush cup pull features a 5" x 1.245" cutout opening, allowing it to sit flush within the door surface for a streamlined appearance. Available in multiple finishes including DU, 622, and 630, the BD18 is designed to complement a wide range of commercial door applications where a recessed pull is required.

Key Features

  • Precise Dimensions: Overall length of 7" and width of 2.485" provide a substantial, comfortable grip surface suited for commercial sliding and barn door applications.
  • Accurate Cutout Sizing: Requires a 5" x 1.245" door cutout for a flush, recessed installation that keeps the pull surface-level with the door face.
  • Flush Cup Design: Recessed cup pull profile eliminates protruding hardware, reducing snag hazards and maintaining a clean door aesthetic in high-traffic environments.
  • Multiple Finish Options: Available in DU, 622, and 630 finishes to coordinate with existing door hardware and interior design requirements.
  • Commercial-Grade Construction: Rated for commercial use, making it suitable for demanding sliding door and barn door installations in professional settings.
  • Sliding Door and Barn Door Compatibility: Specifically designed for sliding door and barn door hardware applications, ensuring proper fit and function in these door types.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Sliding Door and Barn Door Hardware
  • Product Subgroup: Sliding Door Pulls
  • Product Type: Flush Cup Pulls
  • Commercial/Residential: Commercial
  • Product Category: Sliding Door and Barn Door Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Sliding Interior Doors
  • Barn Door Installations in Retail and Hospitality Environments
  • Healthcare Facilities Requiring Flush, Snag-Free Hardware
  • Educational Institutions with Sliding Classroom or Corridor Doors
  • Industrial and Warehouse Facilities with Sliding Partition Doors
  • Multi-Tenant Residential Properties with Barn Door Configurations
  • Government and Municipal Buildings with Sliding Door Systems

Why Don-Jo BD18?

Don-Jo BD18 Flush Cup Pull products deliver professional-grade reliability with a commercial-rated flush cup design built for sliding door and barn door hardware applications. The precise 7" x 2.485" form factor and 5" x 1.245" cutout specification ensure accurate installation and consistent performance in demanding commercial environments where dependable, low-profile door hardware is essential.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Sliding Door Pulls
Product Type:
Flush Cup Pulls
Commercial/Residential:
Commercial
Product Model:
BD18
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware

Don-Jo BD18-622 – Frequently Asked Questions

1) What is a smaller alternative to the BD18 if my barn door stile is narrow?
Look at the Emtek 2201 rectangular brass flush pull or the Emtek 220304 modern rectangular, both 1-3/4 x 4 inches, which is well under the BD18's 7 x 2.485 inch footprint and fits a stile the BD18 would overhang. The Emtek 2205 brass #8 at 1-7/8 x 5 inches splits the difference. All three are brass rather than the BD18's commercial finish set, so they read as a decorative pull on a residential or hospitality door.
2) I want a flush pull with a ring or spindle so I can pull the door out of a pocket. Does the BD18 do that?
No. The BD18 is a plain recessed cup, nothing folds out of it, so it works for sliding a door along a track but not for dragging a leaf back out of a fully closed pocket. For that, the Baldwin 0397 SOL from the Estate series combines a flush cup handle with a solid spindle ring pull, which is the piece that gives you something to grab when the door is recessed.
3) What is the closest flush cup pull to the Don-Jo BD18 if I need a smaller pocket cutout?
The Emtek 2205 Brass #8 flush pull measures 1-7/8 inches by 5 inches, so it takes a noticeably shorter and narrower recess than the BD18, which is 7 inches long by 2.485 inches wide and requires a 5 inch by 1.245 inch cutout. On a narrow stile or a thin barn door where a 7 inch mortise runs out of material, the 2205 puts the same recessed grip into less door. The BD18 gives a longer grip surface for the same flush, snag-free profile.
4) Is the Emtek 2201 rectangular flush pull a direct replacement for a Don-Jo BD18?
No. The Emtek 2201 is a rectangular brass flush pull at 1-3/4 inches by 4 inches, while the BD18 is 7 inches long by 2.485 inches wide with a 5 inch by 1.245 inch cutout. Dropping a 2201 into a pocket cut for a BD18 leaves the mortise exposed on all four sides. Both are recessed pulls for sliding doors, but the door prep is not shared, so treat the 2201 as a new-prep choice rather than a retrofit into an existing BD18 cutout.
5) The Baldwin 0397 SOL comes up when I search flush cup pulls. Is it the same kind of hardware as the Don-Jo BD18?
Not quite. The Baldwin 0397 SOL from the Estate series is a flush cup handle with a solid spindle ring pull, so it combines a recessed cup with a ring element that swings out of the recess to be grasped. The Don-Jo BD18 is a plain flush cup pull, 7 inches by 2.485 inches, with nothing that protrudes or moves. If the requirement is a completely snag-free door face in a corridor or a healthcare opening, the BD18 profile stays flush; the 0397 SOL is the choice when a pivoting ring is wanted for pulling the door out of a pocket.
6) Why use a recessed cup pull instead of a surface-mounted barn door handle?
A flush cup pull sits level with the door face, so nothing protrudes to catch a cart, a gurney, or a sleeve, and the door can pass a wall pocket or slide behind an adjacent panel without the hardware hitting anything. A surface pull is easier to install (screws to the face, no routing) and gives a bigger grip for a heavy door. The BD18 is the recessed option: you trade a rout for a door face with no projection.
7) Is the Don-Jo BD18 rated for commercial use or is it a residential pull?
Commercial. Don-Jo classes the BD18 as commercial-grade sliding and barn door hardware, which is why it shows up on healthcare corridor doors, classroom sliders, and warehouse partition doors rather than as a closet-door part. If you are specifying for a residential build, it will still work, but you are buying to a commercial spec.
8) How many BD18 pulls do I need per door, and are they sold in pairs?
The BD18 is sold individually, one pull per unit. Most sliding and barn door installs take two per leaf, one on each face, so the door can be moved from either side. Order accordingly: a single pass door that gets used from both sides is a quantity of two, not one.
9) Can I swap a rustic bronze flush pull for the Don-Jo BD18 on the same door?
Not without repairing the rout. The Emtek 220404 rustic modern rectangular sandcast bronze pull is 2 x 4 inches, far shorter than the BD18's 7 inch length, so it will not cover a cutout prepped for the BD18. Going the other direction works better: a door already cut for a small 2 x 4 pull can often be enlarged to the BD18's 5 x 1.245 inch cutout, since the BD18's 2.485 inch wide flange covers more material than it removes on the width.
10) I need a flush pull with a bronze or rustic look instead of the Don-Jo BD18 finishes. What else works?
The Emtek 220404 Rustic Modern Rectangular is a sandcast bronze flush pull measuring 2 inches by 4 inches, which suits openings where the hardware is meant to read as cast bronze. The Don-Jo BD18 comes in DU Duronodic brown coated, 622 matte black, and 630 satin stainless steel, which are the finishes that match commercial door hardware already hung on adjacent openings. Choose the 220404 for a decorative bronze program and the BD18 where the pull has to coordinate with a commercial finish schedule.
11) What finishes does the Don-Jo BD18 flush pull come in?
Three: 622 matte black, 630 satin stainless steel, and DU duronodic brown coated. On a fleet of openings, 630 is the one that matches most commercial lever and push plate hardware already on site; 622 and DU are the darker options for storefront or wood-tone door packages.
12) Is the Don-Jo BD18 flush pull a good choice for a healthcare or high-traffic corridor door?
That is what the recessed profile is for. With nothing standing off the door face, there is no projection for a gurney, laundry cart, or IV pole to snag, and the flat face wipes down without a lip collecting soil. In 630 satin stainless it also matches most institutional door hardware already in a healthcare or education corridor.
13) What is the difference between the Emtek 2201 and the Emtek 220304 if I am shopping flush pulls alongside the Don-Jo BD18?
Both Emtek pulls are brass flush pulls at 1-3/4 inches by 4 inches. The 2201 is the Rectangular series and the 220304 is the Modern Rectangular series, so the split between them is the profile styling rather than the size or the door prep. Either one is a smaller footprint than the Don-Jo BD18 at 7 inches by 2.485 inches, so the choice between the two Emteks is aesthetic while the choice against the BD18 is a prep and grip-length decision.
