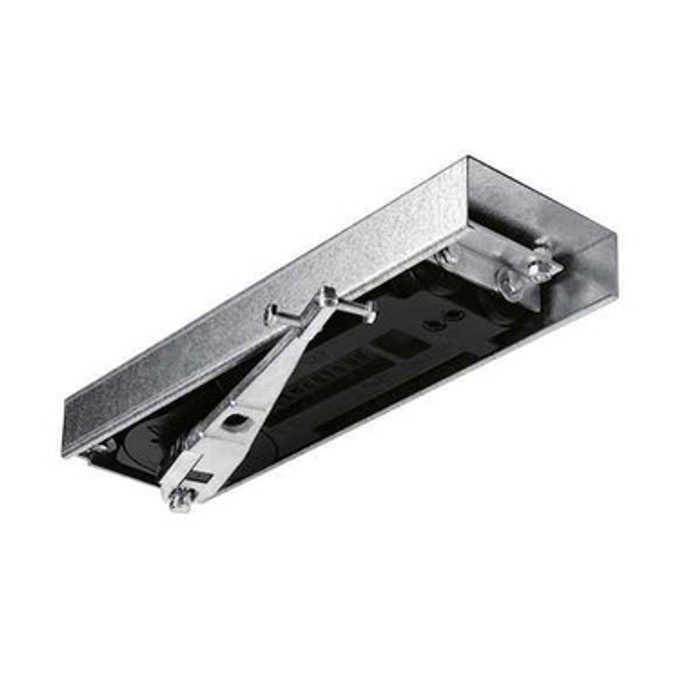

Dorma RTS88 Series - RTS12 Overhead Concealed Door Closer, Center Hung End Load, Double or Single Acting, Aluminum Door and Frame Application (Non-Handed)

Dorma RTS88 Series - RTS12 Overhead Concealed Door Closer, Center Hung End Load, Double or Single Acting, Aluminum Door and Frame Application (Non-Handed)

(No reviews yet) Write a Review

Model: RTS12 105 NHO SZ3
$949.00
$545.93
Selected Finish (Including 8653 Cover Frame) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$949.00
$545.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

DORMA RTS88 Series Overhead Concealed Door Closer

The RTS88 is designed to give lasting, dependable service where surface applied units and other types of closers are not suitable, or would interfere with the architectural design. It can be easily installed in wood, aluminum, or hollow metal doors and frames, for single and double-acting doors.

  • Concealed installation
  • For single and double-acting doors
  • Dependable and easy to Install

Aesthetic advantages

Architects are often challenged to design buildings that are both beautiful and functional, down to the last detail. The DORMA RTS88 overhead concealed door closer offers the perfect solution for those who prefer the aesthetic advantages of a concealed door closer.

Vandalism protection

The RTS88 is an excellent replacement closer for problem entrances encountering vandalism of surface applied closers.

Benefits for the contractor

Contractors appreciate the RTS88 closer, because the majority of door and frame preparation is done prior to installation of the unit, resulting in less on-site machining.

Resources:
RTS88 Series Catalog

Manufacturer Resources

Product Specs

Product Group:
Door Controls
Series:
RTS Series
Product Subgroup:
Door Closers - Overhead Concealed
Product Type:
Overhead Concealed Door Closers
Subcategory:
Concealed Door Closers
Door Weight:
250 lbs
Door Swing:
Single or Double Acting
Commercial/Residential:
Commercial
Package Features:
CH End; Aluminum Door and Frame
Product Model:
RTS12
Door Hand Direction:
Non-Handed
Product Category:
Door Controls
Department:
Door Hardware

Dormakaba RTS12 105 NHO SZ3 – Frequently Asked Questions

1) How heavy a door will the Dorma RTS12 concealed closer handle?
The RTS12 is rated for doors up to 250 lbs. That covers most aluminum entrance leaves and heavier glass or hollow metal doors. If your leaf is lighter and around 200 lbs, the Norton Rixson 608 Series center hung concealed closer is another center hung option we carry.
2) Is the RTS12 handed, or can one unit work on either a left or right hand door?
Non-handed. One RTS12 works on a left or right swinging leaf, and it handles single acting or double acting doors, so you can stock one unit for a range of openings instead of keeping both hands on the shelf.
3) Will the RTS12 fit a center hung aluminum storefront door?
That is exactly the configuration it is built for: center hung, end load, for aluminum door and frame applications. End load means the closer body drops into the header from the end of the frame, so the header has to be accessible. For offset hung aluminum doors you need an offset hung unit instead, such as the Norton Rixson 0608 Series.
4) Which spring size should I order for a 3'-0" exterior aluminum entrance?
For a 2'-6" to 3'-0" exterior door, SZ3 is the standard closing force. Go to SZ4 for 3'-0" to 3'-6" exterior or 3'-6" to 4'-0" interior leaves. If you need reduced opening force, BFE is the barrier free spring for exterior doors at 3'-0" width and BFI is the barrier free spring for interior doors at that width; SZ2 is also a light opening force option.
5) What do I have to specify when ordering an RTS12 besides the finish?
Four choices decide the part: spring size (BFE, BFI, SZ2, SZ3 or SZ4), cushion stop at 90 or 105 degrees, hold open or no hold open, and the package option (standard, with the 8563 frame cover plate, or with a 5mm extended spindle). Finish covers the 8653 cover frame and comes in 600 prime coat, 689 aluminum, 690 statuary bronze, 691 dull bronze, 693 black, 695 dark duradonic bronze, and 696 gold.
6) What is the closest equivalent to the Dorma RTS12 overhead concealed closer from another manufacturer?
The Norton Rixson 73 Series is the nearest match. Like the RTS12, it is a center hung double acting overhead concealed closer rated for 250 lb doors, and it ships with a cover plate. The RTS12 is non-handed and handles single or double acting openings as well, with the closing force selected by spring size at order time, from BFI and BFE barrier free options up to SZ4 for 3'-6" to 4'-0" interior doors.
7) What overhead concealed closer should be specified when the opening has to swing a full 180 degrees?
The Sargent 269 is a heavy duty Grade 1 overhead concealed closer with 180 degree opening capability. The Dorma RTS12 is built around cushion stops at 90 degrees or 105 degrees, so a wider swing requirement points to the Sargent 269.
8) Do I need the hold open version of the RTS12?
Hold open is optional on the RTS12 and is chosen at order time. Take hold open where you want the leaf to stand open for loading or ventilation. Skip it on any opening that has to self-close and latch every cycle, since a hold open closer defeats that. The cushion stop point is a separate choice, 90 or 105 degrees.
9) Can I use a concealed closer instead of a surface closer on a door that keeps getting vandalized?
That is one of the main reasons people move to the RTS88 family. With the closer body up inside the header there is nothing exposed to be struck, pried, or torn off the way a surface applied closer is, and it keeps the header clean where the architecture will not tolerate a visible closer arm and body.
10) Can the RTS88 RTS12 closer go in wood or hollow metal doors, or only aluminum?
The RTS88 closer can be installed in wood, aluminum, or hollow metal doors and frames. The RTS12 specifically is packaged for aluminum door and frame application, center hung end load, so for a wood or hollow metal opening you want the RTS88 variant prepped for that material.
11) How does the Dorma RTS12 compare to the Norton Rixson 73 or Sargent 268 concealed closers?
All three are overhead concealed closers, but they differ in what we hold on each. The RTS12 is non-handed, single or double acting, center hung end load for aluminum doors, rated to 250 lbs. The Norton Rixson 73 Series is a heavy duty Grade 1 center hung double acting unit with cover plate, also 250 lbs. The Sargent 268 is a heavy duty Grade 1 concealed closer with a cast iron body. If you need 180 degree opening, the Sargent 269 is the one in that group listed for it.
12) I only need the closer body to replace a failed unit in an existing header. Is the RTS12 that, or is there a body-only option?
The RTS12 is ordered as a packaged closer with spring size, cushion, hold open and package option selected, not as a bare body. If you want a body-only replacement for an existing concealed installation, the CRL Jackson overhead concealed closer bodies are sold that way, including regular duty at 90 or 105 degree no hold-open, a heavy duty 105 degree no hold-open, and an adjustable spring power 105 degree no hold-open version.
13) For a lighter aluminum entrance that does not need 250 lb capacity, what is a simpler alternative to the RTS12?
The Norton Rixson 608 Series is a standard duty center hung overhead concealed closer for 200 lb doors, and the Rixson 700 Series is another standard duty center hung unit at 200 lbs capacity. Both cover the same center hung geometry as the Dorma RTS12 at a lower door weight rating; the RTS12 is specified for 250 lb doors.
14) What is the difference between the Dorma RTS12 and the Sargent 278 overhead concealed closer?
The Sargent 278 is a heavy duty Grade 1 overhead concealed closer with an exposed arm, so part of the operator hardware remains visible at the head of the door. The Dorma RTS12 is a fully concealed center hung end load unit for aluminum door and frame applications, chosen where a surface applied or visible arm would interfere with the architectural design or invite vandalism.
15) Is a CRL Jackson adjustable spring power closer an option if the closing force needs to be tuned after install?
The CRL Jackson 20-101M-17 is an adjustable spring power overhead concealed closer body, 105 degree no hold-open, so spring power is set on the unit. On the Dorma RTS12 the closing force is fixed by the spring size ordered - SZ2 light opening force, SZ3 for 3'-0" to 3'-6" interior and 2'-6" to 3'-0" exterior doors, or SZ4 for the widest doors - so the opening size should be confirmed before ordering.
16) What is the 5mm extended spindle option on the RTS12 for?
It is a package option that gives you a longer closer spindle, ordered in place of the standard build. Choose it when the extra spindle projection is needed to reach the top pivot arrangement on your leaf. The other package choices are standard and standard plus the 8563 frame cover plate.
17) What finish choices does the RTS12 come in, and does it cover the exposed frame trim?
Seven finishes, and the finish applies to the 8653 cover frame as well as the unit: 600 prime coat, 689 aluminum, 690 statuary bronze, 691 dull bronze, 693 black, 695 dark duradonic bronze, and 696 gold. 689 aluminum is the usual match for clear anodized storefront; 600 prime coat is the one to take if the header is being painted to a custom color.
18) Is the RTS12 a commercial duty closer or is it meant for residential doors?
Commercial. It is a commercial rated overhead concealed closer for door leaves up to 250 lbs, which is why it shows up on storefront and institutional entrances rather than house doors.
19) Does a concealed closer like this mean more on-site machining for my crew?
Less, not more. With the RTS88 family the bulk of the door and frame preparation is done before the unit is installed, so the field work is fitting the closer rather than cutting the opening. On an end load center hung setup you do need access to the end of the header to slide the body in.
