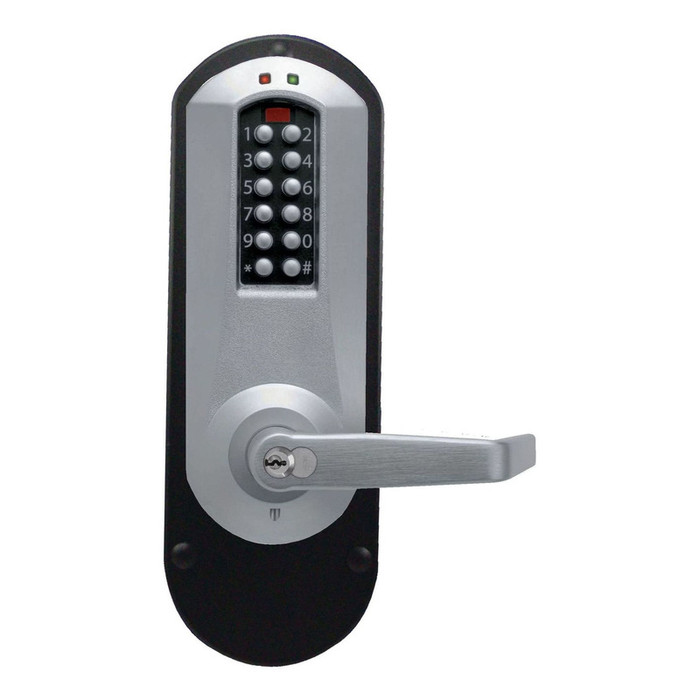

Dormakaba E-Plex E5010 Electronic Push Button Exit Device Lever Trim with Key Override

Dormakaba E-Plex E5010 Electronic Push Button Exit Device Lever Trim with Key Override

(No reviews yet) Write a Review

Model: E5010XS-WL-626-41
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,390.00
$911.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

E-Plex 5000 Series
The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.


Product details Features
Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software
Locking Device Options:
  • Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
  • Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
  • American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without Deadbolt

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility's number of users and accesspoints grow
Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
Key Override:
  • Key-in-lever cylinders
  • Small format interchangeable cores
  • Large format removable cores

Operation Modes:
  • PIN access
  • Lockout
  • Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels:
  • Master Level—Performs all set-up and programming functions
  • Manager Level—Administers common programming functions
  • Access User Level—Entry granted with valid PIN
  • Service Level—Codes for single event or single day access, programmable in advance
  • Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters:
  • Code length—Adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Relock time—Adjustable from 2 to 20 seconds

Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires
Exit Device Compatibility: Find a list of compatible exit devices in the Electronic Lock price book Technical data
Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
Door Handing:
  • Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Exit Trim—Non-handed

Backsets:
  • Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
  • Mortise—2 3⁄4" (70 mm)
  • Exit Trim—Varies by exit device type

Latch:
  • Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
  • Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Additional Configurations:
  • Stand-Alone Access Controller - view product specifications
  • Entry/Exit

Minimum Stile Recommended: 5" (127 mm)
KEY OVERRIDE: Find a list of key overrides in the Electronic Lock pricebook
Door Preparation: Easily installs on wood or metal doors; four bolt installation; no wiring
Door Thickness:
  • Cylindrical—1 3⁄8" (35 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
  • Mortise—1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
  • Exit Trim—1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

Accessibility Standard: Americans with Disabilities Act (ADA)
Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors
Environmental:
  • Indoor/Outdoor Approved
  • Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
  • Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
Standard Finishes:
  • Satin Chrome 26D (626) housings and levers
  • Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes:
  • Bright Brass 03 (605) housings and levers
  • Satin Brass 04 (606) housings and levers
  • Bright Chrome 026 (625) housings and levers
  • Dark Bronze 744 with brass accents

Manufacturer Resources

Product Specs

Product Group:
Exit Devices and Trim
Series:
E-Plex 5000 Series
Grade:
Grade 1
Product Type:
Exit Device Trim
Warranty:
3 Year Limited
Standard Cylinder:
Conventional Cylinder
Product Subgroup:
Exit Devices Trim
Subcategory:
Push Buttons Locks
Commercial/Residential:
Commercial
Cylinder and Keyways:
C Keyway
Features:
Vandal resistant, metal pushbuttons
Latch Throw:
1/2"
Electronic:
Yes
Lock Type:
Exit Device Trim
Handle Type:
Lever
Package Includes:
Lock assembly, installation manual, full scale template, and required hardware
Segment:
Door Hardware
Product Attribute:
Electronic Locks
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 2-1/4"
Product Substrate:
Brass or Bronze
Product Category:
Electronic Locks
Department:
Door Hardware

Dormakaba E5010XS-WL-626-41 – Frequently Asked Questions

1) Do I have to specify handing when I order the E5010 keypad exit trim?
No handing to specify. The exit trim is non-handed, so one part number covers left and right hand doors. That is different from the cylindrical and mortise E-Plex bodies, which are non-handed but arrive pre-assembled for a left hand door and get flipped in the field. With the trim you pick finish and key override cylinder type, and that's it.
2) Will the E-Plex E5010 fit a narrow stile aluminum storefront door?
No. Dormakaba calls for a 5 inch (127 mm) minimum stile for the E-Plex 5000 trim, which rules out typical narrow and medium stile aluminum entrances. You need a wide stile door or a flush wood or hollow metal door. If you're working a narrow stile glass front opening, look at mechanical panic trim instead, such as the Lockey 285P keyless mechanical panic trim.
3) Can I key the E5010 exit trim into my building's existing Best or Schlage master key system?
Yes, on most of the common systems. The key override is an ordering option: B takes a Best or equivalent small format interchangeable core in 6 or 7 pin, C takes a Corbin Russwin large format core, R takes a Sargent large format core, S takes a Schlage large format core, and M takes a Medeco, ASSA, Yale or Abloy large format core in 5 or 6 pin. On all five of those the core is not included, so pull a core from your existing system or order one keyed to it. If you have no house system, the XK option ships a Kaba cylinder in the Kaba 90 keyway and XS ships one in the Schlage C keyway.
4) Do I need to run power or wire to the door for the E-Plex E5010?
No wiring at all. The E-Plex 5000 is a standalone battery lock and uses Dormakaba's LectroBolt, which removes any wiring to or through the door, so there are no pinched wires and no door loop to install. Installation is a four bolt job on a wood or metal door and a full scale template is in the box. If your project actually calls for latch retraction tied into an access control panel, that is a different animal, and the ACSI ED4200-W036 Corbin Russwin ED4000 rim device with 24 volt electric latch retraction is the wired approach.
5) Can I use the E5010 keypad trim on a 3 hour fire rated stair door?
The E-Plex 5000 series carries a three hour UL/ULC fire door rating for A labeled doors and is ANSI/BHMA Grade 1 certified under A156.25, A156.2, A156.13 and A156.3. It also meets ADA. One caution on a fire door: the rating on the opening depends on the exit device itself being fire labeled too, and the device is a separate purchase, so pair the trim with a fire rated rim device and do not order a dogging device for that opening.
6) What is the closest electronic keypad exit device trim to the Dormakaba E-Plex E5010?
The BEST EXZ EZ Series electronic keypad exit device trim with key override function is the nearest counterpart. Both are keypad-operated lever trims for rim exit devices with a mechanical key override, so the opening is entered by PIN and can still be keyed by staff. The E-Plex E5010 is a non-handed lever trim, ANSI/BHMA Grade 1, with vandal resistant metal pushbuttons and a door thickness range of 1-3/8 inch to 2-1/4 inch. Choose between them on the cylinder you intend to run: the E5010 is ordered with SFIC Best-and-equivalent, LFIC Corbin Russwin, LFIC Medeco/ASSA/Yale/Abloy, LFIC Sargent, LFIC Schlage, or a key-in-lever Kaba cylinder in Kaba 90 or Schlage C keyway.
7) Is there a keyless panic trim that does not need batteries or programming software?
Yes. The Lockey 115P heavy duty keyless passage lever panic trim with 1150 lock body and the Lockey 285P keyless mechanical panic trim with lever handle are both mechanical pushbutton trims, so there is no audit trail, no software and no code database to maintain. Both Lockey trims fit doors 1 3/16 inch to 2 inch thick. The Dormakaba E-Plex E5010 is an electronic trim carrying up to 100 access codes with programming by keypad or Excel-based software, and it fits doors 1-3/8 inch to 2-1/4 inch. Pick the mechanical trims where the site wants one shared combination and no electronics; pick the E5010 where individual codes and audit events are required.
8) What lever trim should I use on an exit device opening that only needs a key, with no keypad?
The Corbin Russwin K157ET is a Grade 1 key only trim for ED2200 and ED2400 exit devices, heavy duty, classroom function. The Detex 08BN classroom S-lever exit device trim uses a mortise cylinder on Value Series devices, and the Arrow SRX87 is a classroom function Sierra lever with rose for S1150, S1250, ED910 and PEC910 devices, for doors 1-3/4 inch thick. All three control the opening by cylinder alone. The Dormakaba E-Plex E5010 adds keypad entry with a mechanical key override behind it, so it suits openings where the code list changes and the key is the backup rather than the daily method.
9) What is the difference between the E-Plex E5010 exit trim and a Deltana lever trim for an 80 series exit device?
The Deltana trims are mechanical and are ordered by the function you want fixed in the hardware: the LTED80LS is entry function, the LTED80LP is passage function, and the DDS-36 is storeroom function for exit device 80. The Deltana LTED60LST is storeroom function for exit device 60. Each is a single behavior chosen at purchase. The Dormakaba E-Plex E5010 is an electronic lever trim whose behavior is set in the keypad: PIN access, lockout, and passage that can be toggled or set to relock after 1 to 24 hours. Specify a Deltana trim when the door's function never changes; specify the E5010 when one door has to move between locked and passage on a schedule.
10) If I want the door to unlock electrically from a remote release instead of a keypad, what do I order?
The ACSI ED4200-W036 is a Corbin Russwin ED4000 Series rim exit device with electric latch retraction on 24 volt AC/DC, Grade 1, wide stile. Electric latch retraction pulls the latch from a remote signal, so the door is released by an access control system or a push button at a desk and the device itself is the wired component. The Dormakaba E-Plex E5010 is trim only, credential-at-the-door, and uses LectroBolt so there is no wiring to or through the door. Choose the ACSI device when the release decision is made somewhere other than the door; choose the E5010 when the decision is made at the door and running power is not practical.
11) I already key my building in Schlage. Do I have to switch cylinders to use the E-Plex E5010?
No. The Dormakaba E-Plex E5010 is ordered with an S option for LFIC Schlage cores, core not included, or with an XS key-in-lever Kaba cylinder in the Schlage C keyway included. Its standard keyway is C keyway with a conventional cylinder. Among mechanical alternatives, the Corbin Russwin K157ET is Grade 1 key only trim for ED2200 and ED2400 devices and the Detex 08BN classroom S-lever trim uses a mortise cylinder, so those are cylinder decisions of a different kind. Match the override option to the core format already in the facility.
12) How many people can I give codes to on the E-Plex E5010, and can I see who came through the door?
100 access codes standalone, expandable to 300 with the optional Excel based software. Codes run 4 to 8 digits, set by you. The lock stores its most recent 9,000 events, including every use of the mechanical key override, but you need the software to pull and read that audit trail. Users sit in levels: master for all programming, manager for day to day, access user for entry, service codes for a single event or single day, and maintenance codes that grant no entry but let someone upload and download from the lock.
13) Can I leave the door unlocked during business hours with the E-Plex 5000 keypad trim?
Yes. Passage mode toggles on and off from the keypad, or you can pre-program it to relock automatically after a set number of hours, anywhere from 1 to 24. That covers a store or office that goes free access at open and locks itself at night without anyone remembering. The other two modes are normal PIN access and lockout, which shuts out all access user codes. Relock time after a valid entry is adjustable from 2 to 20 seconds.
14) Will an E-Plex keypad exit trim hold up on an exterior door in a cold climate?
It is approved for indoor and outdoor use. The front housing is rated from -31 F (-35 C) to +151 F (66 C) and the rear housing from -31 F to +130 F (55 C), so a northern exterior door is within range. Pushbuttons are metal and vandal resistant rather than membrane, housings and levers are cast brass or bronze, and the cylindrical drive is wear tested for indoor and outdoor service.
15) What is a comparable electronic keypad exit device trim to the Dormakaba E-Plex E5010 from another brand?
The closest cross-brand equivalent is the BEST EXZ, an EZ Series electronic keypad exit device trim with key override function, which is the same idea: pushbutton entry with a mechanical key backup mounted to a rim device. Beyond that, most exit trim on the market is mechanical function trim, not electronic. Corbin Russwin's K157ET is key only classroom trim for ED2200 and ED2400 devices, and Deltana's LTED80LS entry and DDS-36 storeroom trims are keyed lever trim, all of which mean carrying keys rather than issuing codes.
16) I have a pair of doors with no mullion. Can I still use the E5010 keypad trim on both leaves?
Rim exit trim like the E5010 mounts to a rim device, and a rim device needs something to latch into at the strike, so on a pair you need a mullion between the leaves. The Detex 90 Series keyed removable mullion is built for rim exit devices and comes out when you need the full opening width for moving equipment. If you'd rather not have a mullion in the opening at all, that pushes you to vertical rod devices instead, and this trim is not the trim for those.
17) Does the E-Plex E5010 lever trim keep free egress for life safety?
Yes. The keypad controls the outside lever only. Pushing the exit device from the inside always releases the latch regardless of what mode the lock is in, including lockout, because the trim does nothing to the inside device. Access from outside is by code, or by the mechanical key override cylinder you specify with the order.
18) Can I replace an E-Plex E5010 with a Sargent 802 or Von Duprin 379L-BE trim?
No, those are not substitutes. The Sargent 802 is a blank plate exit device trim with GTB design for PE80 Series and is not wood door compatible; the Von Duprin 379L-BE is a blank escutcheon trim for 55 Series rim exit devices. A blank plate carries no lever and no cylinder, so the door can only be opened from the outside by another means. The Detex 03WS is a trim plate with a cylinder hole for 10, 20, 21 and 27 Series devices, and the Detex A/AN Series straight pull trim has a blank escutcheon. The Dormakaba E-Plex E5010 is a lever trim with keypad entry and key override that provides outside access. Use a blank plate only where the outside face is meant to be a dead face.
19) I need a pull, not a lever, on the outside of my exit device. What are my options?
The Sargent 814 PSB is a nightlatch pull exit device trim, heavy duty, for the 80 Series, and the Sargent 862 is a Grade 1 offset pull handle for exit devices in the P800 Series. Both give a grip on the outside face rather than a latch-retracting handle. The Detex A/AN Series straight pull trim with blank escutcheon is another pull-style option for Value Series devices. The Dormakaba E-Plex E5010 is a lever trim, which is what ADA compliance calls for on an operable door opening.
20) How do I secure a pair of doors when I am putting E-Plex E5010 trim on the active leaf?
A removable mullion is the usual answer for a double door opening with rim devices. The Detex 90 Series keyed removable mullion is made for rim exit devices and drops out to open the full width when needed. The Dormakaba E-Plex E5010 is trim for a rim exit device with a minimum recommended stile of 5 inches, and the exit device and mounting hardware are ordered separately from the trim. Verify the mullion, the rim device and the trim are all specified together for the pair.
21) What trim do I use on a door that only needs a handle to pull it closed, with no latching from outside?
The Corbin Russwin x650ET is a Grade 1 dummy lever trim with rose for ED7000 Series exit devices, heavy duty. A dummy lever is fixed and retracts nothing; it is there to pull the door. The Deltana LTED80LP is passage function for exit device 80, which retracts the latch with no locking. The Dormakaba E-Plex E5010 is an electronic trim with 100 access codes and key override, so it belongs on an opening that has to control who gets in rather than one that is always open.
22) What finishes does the E-Plex E5010 exit trim come in, and will it match the rest of my building's hardware?
Five finishes are orderable: 626 satin chrome, 625 bright chrome, 605 bright brass, 606 satin brass, and 744 dark bronze with brass accents. Satin chrome 626 is the standard and the usual match for commercial lever hardware. Dormakaba also lists a black 676 housing with satin chrome levers and accents as a standard combination in the 5000 series. Every one of the five finishes is available with any of the key override cylinder options, so finish and keying are independent choices on the order.
