RCI 9320/9321 Easy Read Proximity Slimline Reader with 10,000 User Capacity

RCI 9320/9321 Easy Read Proximity Slimline Reader with 10,000 User Capacity

Single Door Standalone Access Control Solution

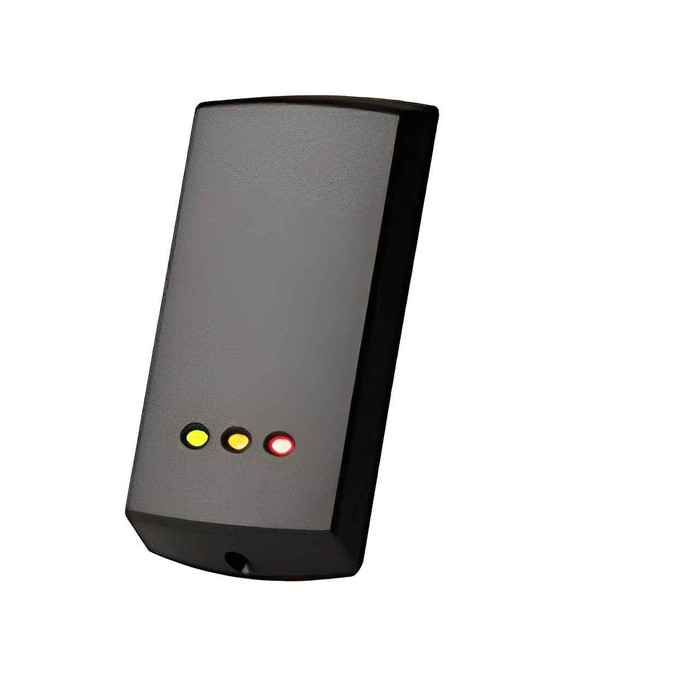

The RCI 9320/9321 Easy Read Proximity Slimline Reader delivers professional access control for single door applications with support for up to 10,000 users. This standalone system operates on 12VDC with 1000mA maximum power consumption and features field-selectable fail-safe and fail-secure modes. The compact design measures 1-1/2"W x 3-1/16"H x 1/2"D with read range up to 2-3/8" for cards and weather-resistant construction for reliable operation.

Professional Features & Benefits

• High-Capacity User Management: Supports up to 10,000 users for large-scale access control applications without requiring separate programming equipment.
• Flexible Installation Options: Available as self-contained unit (9320) or two separate components with reader and controller (9321) for surface or mullion mount applications.
• Extended Read Range: Up to 2-3/8" (60mm) read range using 932-10CP cards and 1-9/16" (40mm) using 932-10KP fobs for convenient access.
• Field-Configurable Operation: Field-selectable fail-safe and fail-secure modes with 12VDC operation at 1000mA maximum power consumption.
• Multiple Validation Options: Silent (9320 only), audible, or visual access validation with deny access capability without retrieving user credentials.
• Weather-Resistant Design: Rugged construction suitable for demanding environments with included black and white snap-on covers.
• Integrated Control Features: Input trigger for request-to-exit or other open circuit contact with no separate programmer required for setup.
• Manufacturer Warranty: 1 Year Limited Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Subgroup: Readers, Keypads and Credentials
• Product Type: Readers & Credentials
• Series: 9320/9321 Series
• Subcategory: Electronic Locks

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12VDC voltage and 1000mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure/fail-safe modes per application requirements.
6. Restore power and test all functions including normal operation, access validation modes, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose RCI Quality?

RCI proximity readers deliver professional-grade reliability with rugged, weather-resistant construction rated for demanding commercial applications. The 1 Year Limited Warranty provides added confidence for critical access control installations. Engineered for high-capacity user management with field-configurable operation modes where dependable security performance is essential.
