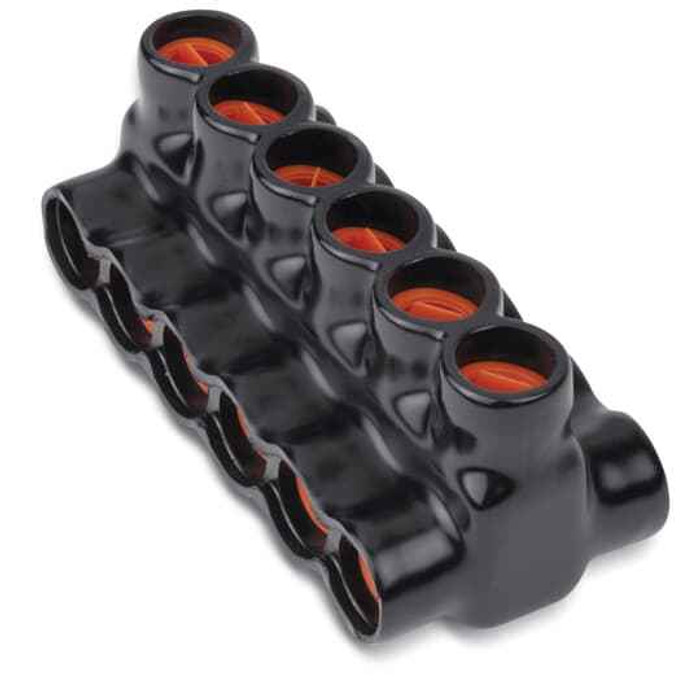

DOUBLE SIDED 6 PORT CONN. 350-6 AWG
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- Multi-Tap/Port Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTD35066 – Frequently Asked Questions
1) What wire sizes will the Blackburn AMTD35066 multi-tap connector accept?
The AMTD35066 is a double sided 6 port tap connector rated for conductors from 350 kcmil down to 6 AWG. Any of the six ports takes a conductor in that range, so you can land a 350 kcmil feeder and tap smaller branch conductors off the same block.
2) Is this Blackburn tap connector rated for 600 volt service?
Yes. The AMTD35066 carries a 600 V rating, which covers standard commercial and industrial power distribution up through 480Y/277 V systems. It is UL listed under file E9809.
3) Can I use this connector with both copper and aluminum conductors?
The body of the AMTD35066 is aluminum, which is what allows a tap connector of this type to be used on aluminum as well as copper conductors. Aluminum bodied taps require the manufacturer's joint compound on aluminum conductors and a wire brushing of the conductor before insertion.
4) What does double sided mean on a 6 port tap connector, and where would I use one?
Double sided means the ports are split across two opposing faces of the block rather than all entering from one side, so conductors come in from both directions. That suits a panel or pull box where a feeder enters one side and taps leave the other, and it keeps conductor bending to a minimum in tight gutters. If all your conductors approach from a single direction, a single sided multi-tap block is the easier install.
5) Will a UL listed multi-tap connector satisfy an inspector on a commercial feeder tap?
The AMTD35066 is UL listed under file E9809 and rated 600 V, which is the listing and voltage class an inspector looks for on a 600 V class feeder or branch tap. The conductor sizes landed must fall in the 350 kcmil to 6 AWG range the connector is rated for, and each port takes one conductor unless the connector is marked otherwise.
6) Is the AMTD35066 an insulated connector or a bare block?
It is a black aluminum multi-tap block. Colour is listed as black, and the tap itself is the conductor connection only, so where the installation requires insulation over the block you cover it separately with a snap on cover or tape and insulating putty per the job spec.
7) Is the Blackburn AMTD35066 sold individually or in a pack?
Sold each. One order quantity gets you one 6 port double sided block, so count one per phase plus one for neutral when you are setting up a tap in a gutter or junction box. It is made in the United States.
