DynaLock 7400 Series Stand Alone Digital Keypads

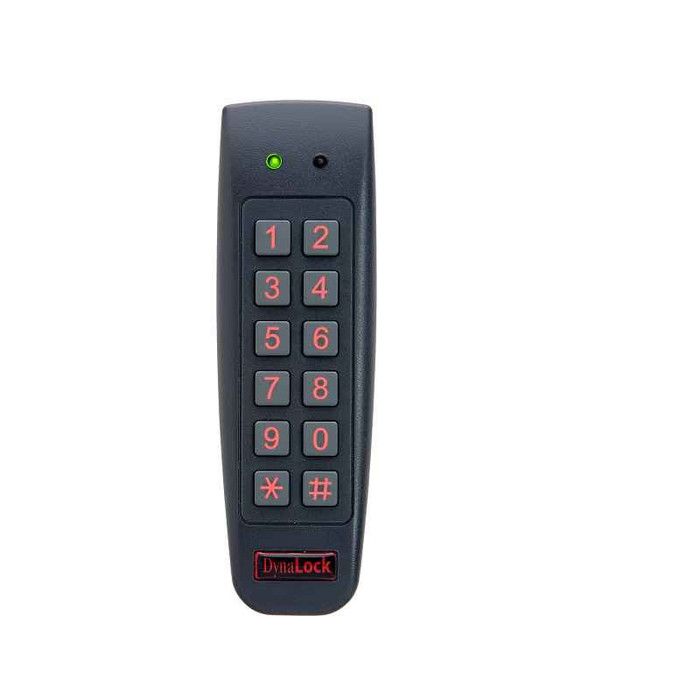

Model 7450 Single Gang Box-Mount, Backlit 3x4 Matrix Rubber Keypad
The DynaLock 7450 narrow, mullion-style keypad is designed to be the most cost effective access control solution for indoor and outdoor residential, commercial and institutional applications. It will store 1 to 500 user PIN codes, with up to three access levels for each. The 7450 features a user-friendly setup menu, which makes configuration and use very simple for end users. A wide array of functions and auxiliary modes provide extra flexibility and security, allowing it to operate as a single or two-door access controller. The 7450 incorporates a UV-resistant, epoxy sealed polycarbonate housing, designed to withstand the elements. Red backlit keys enhance visibility in lowlight conditions and a flexible power input allows the unit to operate on 12-24VDC or 16-24VAC. Two Form-C relay outputs, rated at 2 Amps, as well as REX and Auxiliary inputs are provided.
Standard Features
• 500 User Codes: Up to 500 codes can be programmed using one of two easy enrolling methods.
• Flexible Power Input: 12-24 VDC or 16-24VAC.
• 3 User and Access Levels: Program one to three different levels of access for each individual user or for the entire system.
• Multiple Inputs and Outputs: Unit includes a REX and Auxiliary input as well as two form C output contacts rated at 2 Amps.
• Audio and Visual Recognition: Equipped with an internal sounder and two tri-colored status/programming LED’s.
• Multiple Auxiliary Modes: Ten programmable auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor.
• Weather Resistant: IP65 water and UV resistant.
• Vandal Resistant: Polycarbonate casing with a built in optical tamper sensor.
• Installer Friendly: Includes an installation kit and self-adhesive mounting template.
• Lifetime Warrant
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Subcategory:
- Push Buttons
- Series:
- 7400
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Mullion
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Model:
- 7450
- Warranty:
- Lifetime Warranty
- Voltage:
- 12 to 24VDC
- Substrate:
- Polycarbonate
