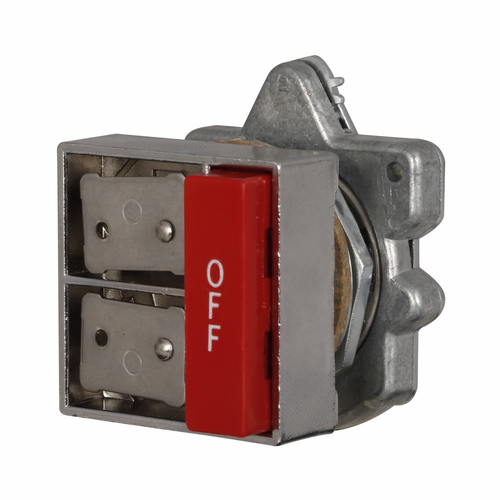

Eaton E30 Square Multifunction Selector Switch, Non-Illuminated

Eaton E30 Square Multifunction Selector Switch, Non-Illuminated

(No reviews yet) Write a Review

Model: E30AH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$211.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Square Multifunction Selector Switch, Non-Illuminated

The Eaton E30 Square Multifunction Selector Switch is a rugged 30.5 mm operator engineered for industrial control panels that demand reliable, code-compliant switching. This non-illuminated selector switch combines a maintained action in the top position with a momentary action in the bottom position, giving panel builders and machine operators dual-mode control from a single compact device. Backed by NEMA 3, 3R, 4, 12, and 13 environmental ratings, this Eaton E30 series operator is suitable for indoor production floors, outdoor equipment enclosures, washdown areas, and oil-exposed industrial environments where dust and moisture ingress protection matters.

Key Features

  • Operator Size: 30.5 mm square multifunction body fits standard industrial panel cutouts for clean integration into existing control stations.
  • Dual-Action Switching: Maintained position on top and momentary position on the bottom deliver combined selector-switch and pushbutton functionality in one operator.
  • Non-Illuminated Design: Simple, durable construction without a pilot light, ideal for applications that do not require visual status indication.
  • Broad Environmental Protection: Rated NEMA 3, 3R, 4, 12, and 13 for indoor, outdoor, washdown, dust-tight, and oil-resistant service conditions.
  • E30 Series Platform: Part of Eaton's heavy-duty E30 line of industrial pushbutton and selector switch operators used across control and automation panels.
  • Square Multifunction Profile: Square bezel styling allows dense mounting alongside other E30 series operators for compact, organized control panel layouts.

Certifications & Compliance

  • NEMA 3 Rated
  • NEMA 3R Rated
  • NEMA 4 Rated
  • NEMA 12 Rated
  • NEMA 13 Rated

Technical Specifications

  • Product Type: Electrical Component
  • Warranty: 1 year
  • Series: E30

Typical Applications

  • Industrial Control Panels
  • Machine Control and Operator Stations
  • Outdoor and Washdown Equipment Enclosures
  • Manufacturing and Process Automation Lines
  • Oil-Resistant and Dust-Tight Industrial Environments

Why Eaton?

Eaton's E30 series selector switches are built for dependable performance in demanding industrial settings, backed by NEMA 3, 3R, 4, 12, and 13 environmental ratings that support both indoor and outdoor installations. The maintained-top, momentary-bottom dual-action design gives control panel builders flexible switching logic from a single non-illuminated operator, while Eaton's durable construction and 1-year warranty support long-term, code-compliant performance for professional electrical and automation work.

Manufacturer Resources

Product Specs

Illumination:
Non-illuminated
Product Type:
Selector Switch
Warranty:
1 year
Series:
E30
Department:
Electrical
Standards:
NEMA 3/3R/4/12/13
Configuration:
Maintained (top), Momentary (bottom)
Product Group:
Motor Control & Automation
Product Subgroup:
Selector Switches

Eaton E30AH – Frequently Asked Questions

1) What is the difference between Eaton E30AH and E30AL selector switch actuators?
Both are two-button operators in the E30 square multifunction body. The E30AH uses a long (OFF) release bar spanning the operator, while the E30AL uses an (OFF) release bar for the top button only. Pick the E30AH when the operator should be able to release the switch by striking anywhere along the bar, and the E30AL when only the top button should be released.
2) Does the Eaton E30 square multifunction switch latch in position or spring back?
It does both, which is the point of the multifunction body. The top position is maintained, so it stays where the operator puts it, and the bottom position is momentary, returning as soon as it is released. That gives you selector-switch and pushbutton behavior from one 30.5 mm operator instead of two devices in the panel.
3) Can this Eaton E30 selector switch be mounted in an outdoor or washdown enclosure?
Yes. The E30 square multifunction operator carries NEMA 3, 3R, 4, 12 and 13 ratings, which covers outdoor rain and sleet exposure, hosedown and washdown areas, dust-tight indoor use, and oil-exposed machine environments. The enclosure it goes into has to carry the matching rating for the installation to hold up.
4) Does this E30 switch have a pilot light or status indicator?
No. This is the non-illuminated version of the E30 square multifunction operator, so there is no lamp or lens in the body. If the operator station needs visual status feedback, you want an illuminated E30 operator or a separate E30 pilot light mounted alongside it.
5) Do the Eaton E30 two-button operators include contact blocks?
The E30AH and E30AL are operators, the front-of-panel actuator assembly. Contact blocks are the separate rear-mounted piece that does the switching, so specify the E30 contact blocks you need (normally open or normally closed, and how many poles) to suit your control circuit before the panel goes together.
6) Is this the right switch for a two-hand start or start/stop machine station?
The two-button format with an (OFF) release bar is built for exactly that kind of machine control station: a maintained run selection on top and a momentary function on the bottom, with the release bar giving the operator a fast OFF. It is used in industrial control panels, operator stations, and process automation lines.
7) Will the Eaton E30 hold up in an oily, dusty machine shop?
That is what the NEMA 12 and 13 ratings on this operator cover: 12 for dust-tight indoor service and 13 for oil and coolant exposure around machine tools. The same device also carries NEMA 3, 3R and 4 if the panel later moves outdoors or into a washdown bay.
