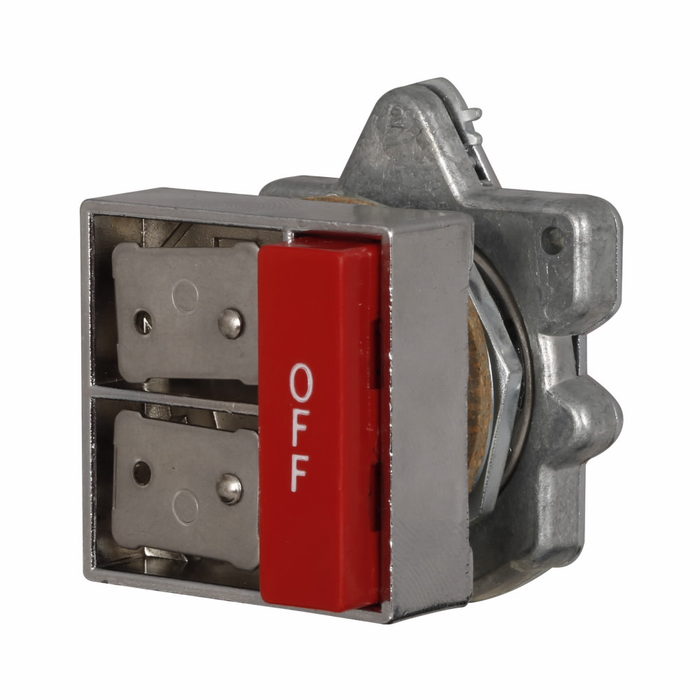

Eaton E30 Series 30.5mm Square Multifunction Two-Button Operator, Non-Illuminated

Eaton E30 Series 30.5mm Square Multifunction Two-Button Operator, Non-Illuminated

(No reviews yet) Write a Review

Model: E30AG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$211.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Series 30.5mm Square Multifunction Two-Button Operator, Non-Illuminated

The Eaton E30 Series 30.5mm Square Multifunction Two-Button Operator is a non-illuminated, maintained-action control designed for demanding industrial panel and enclosure applications. Featuring a two-button configuration with a long (OFF) release bar and maintained action on both the top and bottom positions, this E30A Series operator is rated NEMA 3, 3R, 4, 12, and 13 for reliable performance in indoor, outdoor, dust-tight, and washdown environments. Built to the 30.5mm square multifunction footprint, it integrates into standard Eaton E30 operator stations for machine control, HVAC, and process equipment.

Key Features

  • Trade Size: 30.5 mm square multifunction mounting profile for standard Eaton E30 panel cutouts.
  • Actuator Configuration: Two-button design with a long (OFF) release bar for clear, deliberate stop actuation.
  • Maintained Action: Maintained operation on both the top and bottom buttons for consistent, repeatable switching.
  • Environmental Rating: NEMA 3, 3R, 4, 12, and 13 rated for use in outdoor, washdown, and dust/oil-exposed environments.
  • Illumination: Non-illuminated construction for straightforward control applications that do not require status lighting.
  • Product Width: 2 in. profile fits standard E30 operator station layouts.
  • Series: Part of the Eaton E30 (E30A Series) square multifunction operator family.

Certifications & Compliance

  • NEMA 3
  • NEMA 3R
  • NEMA 4
  • NEMA 12
  • NEMA 13

Technical Specifications

  • Product Type: Electrical Component
  • Warranty: 1 year
  • Series: E30
  • Department: Electrical

Typical Applications

  • Industrial Machine Control Panels
  • HVAC and Process Equipment Operator Stations
  • Outdoor and Wet-Location Control Enclosures
  • Washdown and Dusty/Oily Environment Installations
  • Commercial and Industrial Electrical Control Systems

Why Eaton?

Eaton's E30 Series multifunction operators are engineered for durability and consistent performance across demanding NEMA 3, 3R, 4, 12, and 13 rated environments. With a maintained two-button actuator and robust 30.5 mm square multifunction construction, the E30A Series delivers dependable, code-compliant control for professional industrial and commercial electrical installations.

Manufacturer Resources

Product Specs

Illumination:
Non-illuminated
Product Width:
2 in
Product Type:
Pushbutton
Warranty:
1 year
Series:
E30
Actuator:
Two button, long (OFF) release bar
Department:
Electrical
Configuration:
Two-Button Maintained
Standards:
NEMA 3/3R/4/12/13
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E30AG – Frequently Asked Questions

1) Is the Eaton E30A two-button operator maintained or momentary?
Maintained on both buttons, top and bottom. Press it and it stays put until the other button is pressed, so it holds a state rather than pulsing a contact. If your control scheme needs a momentary start pulse into a seal-in circuit, this is not the actuator for it.
2) Can I use this Eaton E30 operator in an outdoor or washdown enclosure?
It carries NEMA 3, 3R, 4, 12 and 13 ratings, which covers outdoor rain exposure, hose-down washdown, and dust or oil laden indoor areas. The enclosure it goes into has to carry the same rating and the gasket has to be seated properly on the cutout, otherwise the operator's rating does nothing for you.
3) Do I need to order contact blocks separately for this E30 operator?
This is the operator head only, the actuator that mounts through the panel. The contact blocks that make and break your control circuit are separate E30 series components and are selected by the number of normally open and normally closed contacts your circuit needs. Order them along with the operator so the station is complete at install.
4) What is the long OFF release bar on the E30A for?
The bottom actuator is a long bar rather than a round button, so an operator can hit OFF with a palm, an elbow, or a gloved hand without hunting for it. It gives you a deliberate stop actuation on machine control panels where the stop needs to be the easiest thing on the station to find.
5) Does the Eaton E30A operator light up?
No. It is a non-illuminated operator, so there is no lamp block and no pilot light function. If your panel needs run or fault status at the button, you will want an illuminated E30 operator or a separate 30.5 mm pilot light next to it.
6) What is the difference between the E30AG and the E30AK?
Both are E30A Series 30.5 mm square multifunction two-button operators with the long OFF release bar and maintained action on both positions. They are the two model options in the family, ordered as E30AG or E30AK. Specify by the exact model number on your drawing so you get the button configuration your panel schedule calls out.
7) Is the Eaton E30A two-button operator suitable for HVAC equipment control panels?
Yes, that is one of its intended uses along with industrial machine control and process equipment operator stations. The maintained two-button action suits a simple on/off command to a unit, and the NEMA 3R and 4 ratings mean it holds up on rooftop or wet-location control enclosures rather than just conditioned mechanical rooms.
