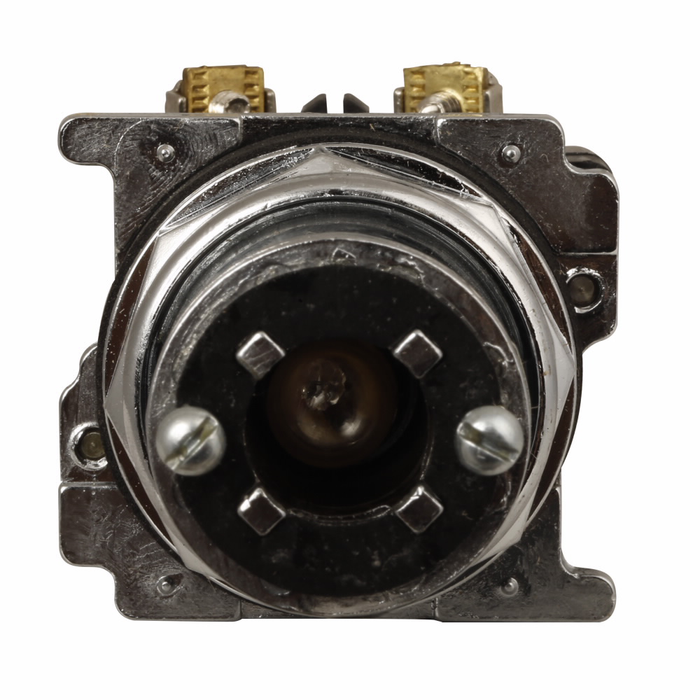

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, Cam 3

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, Cam 3

(No reviews yet) Write a Review

Model: 10250T6383

In Stock (leaves warehouse same day if ordered before 3pm ET)

$288.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, Cam 3

The Eaton 10250T Series Heavy-Duty Pushbutton is a 30.5 mm illuminated operator built for industrial control panels that demand rugged, code-compliant switching. Configured with a Cam 3, 60° throw and 3 positions, this pushbutton is rated 120 Vac/dc and carries NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 ratings, making it suitable for both indoor panels and harsher outdoor or washdown environments.

Key Features

  • 30.5 mm Heavy-Duty Type: 30.5 mm Heavy-Duty construction sized for standard industrial panel cutouts and demanding duty cycles.
  • Cam 3, 60° Throw: Cam code 3 with a 60° throw delivers precise, repeatable 3-position actuation.
  • Illuminated Operator: Illuminated with an incandescent, full-voltage light unit for clear visual status indication at the panel.
  • Voltage Rating: Rated 120 Vac/dc, matched to common control-circuit voltages.
  • NEMA Ratings: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 rated for indoor, outdoor, dust-tight, and washdown-capable enclosures.
  • Number of Positions: 3-position operation supports multi-state machine control.
  • Compact Dimensions: 2.4 in width, 3.4 in length/depth, and 2.1 in height for efficient panel layout.
  • Warranty: Backed by a 1-year Eaton warranty.

Certifications & Compliance

  • CE Marked
  • CSA Certified
  • NEMA 3, 3R, 4, 4X, 12, 13 Rated

Technical Specifications

  • Number of positions: 3
  • Product Type: Pushbutton
  • Warranty: 1 year
  • Series: 10250T
  • Voltage rating: 120 Vac/dc
  • Throw type: 60°
  • Cam code: Cam 3
  • Light unit type: Incandescent, full voltage

Typical Applications

  • Industrial Control Panels
  • Machine Control Stations
  • Outdoor and Washdown Equipment Enclosures
  • Heavy-Duty Manufacturing Equipment
  • Panel-Mount Operator Interfaces

Why Eaton?

Eaton's 10250T Series Heavy-Duty pushbuttons combine rugged 30.5 mm construction with broad NEMA 3, 3R, 4, 4X, 12, and 13 enclosure ratings, CE marking, and CSA certification, giving panel builders a dependable, code-compliant operator for demanding industrial environments. The illuminated, full-voltage incandescent light unit and precise Cam 3, 60° throw mechanism support reliable, professional-grade control panel performance backed by Eaton's 1-year warranty.
