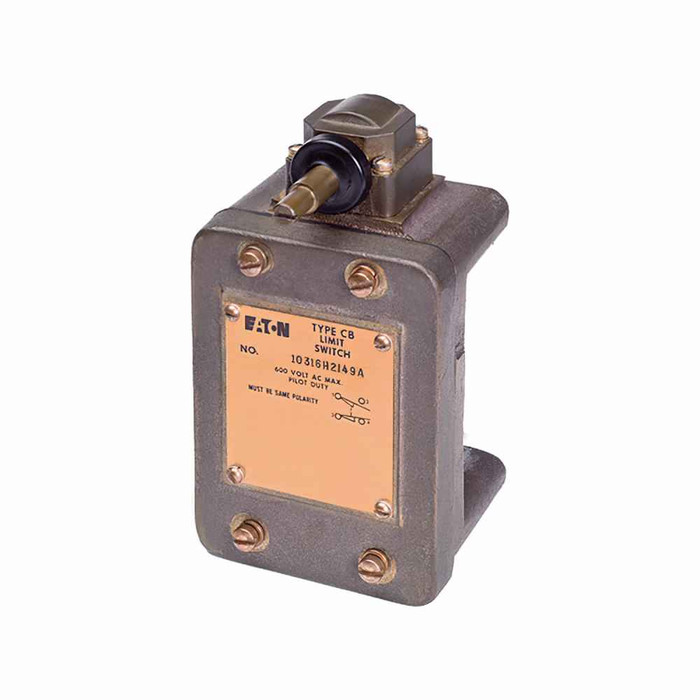

Eaton 10316 hazardous location limit switch, Wobble Stick, Steel Wire, Die Cast Aluminum enclosure, 5A max AC, 0.1A max DC, 1NC, 5A at 600Vac, 0.1A at 120Vdc, Screw Terminals
Manufacturer Resources
Product Specs
- Catalog Notes:
- 1N.O.-1N.C. contacts must be same polarity when both circuits are used. Travel with force applied at 1inch (25.4 mm) radius. Applied at end of operator; travel is approximately 14. Call factory for availability of CSA & CE approval status.
- Certifications:
- UL Listed
- Compliances:
- CE Marked
- Connection:
- Screw terminal
- Contact Configuration:
- 1 NC
- Contact Rating:
- 5A at 600Vac, 0.1A at 120Vdc
- Enclosure Material:
- Die cast aluminum
- Environmental Rating:
- NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG
- Maximum Ac Current:
- 5:00 AM
- Maximum Dc Current:
- 0.1 A
- Operating Temperature Max:
- 200 °F
- Operating Temperature Min:
- -20 °F
- Product Height:
- 5.22 in
- Product Length Depth:
- 2.81 in
- Product Weight:
- 1.6813 lb
- Product Width:
- 2.25 in
- Switch Type:
- Wobble stick
- Product Group:
- Electrical
