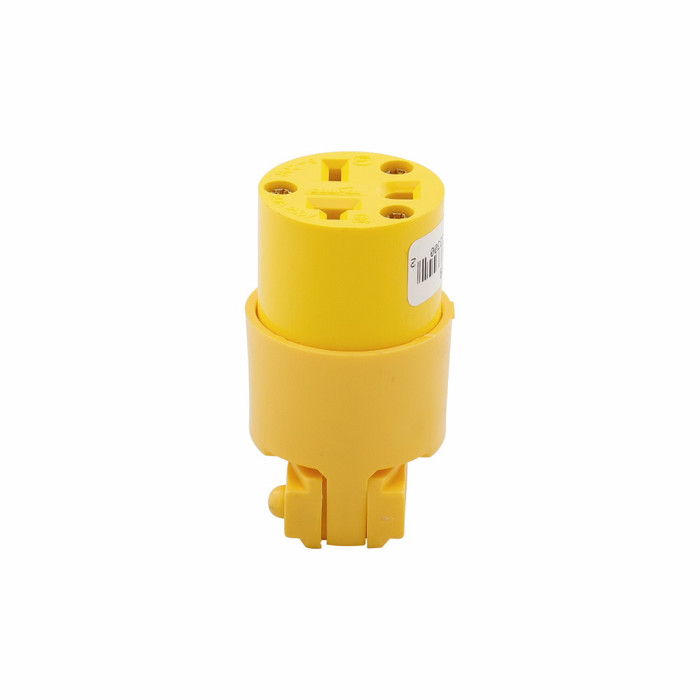

Eaton 4229-BOX Arrow Hart Straight Blade Connector, 6-20R, 20A 250V

Eaton 4229-BOX Arrow Hart Straight Blade Connector, 6-20R, 20A 250V

(No reviews yet) Write a Review

Model: 4229-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 4229-BOX Arrow Hart Straight Blade Connector, 6-20R, 20A 250V

The Eaton 4229-BOX Arrow Hart straight blade connector is a commercial-grade 6-20R device built for two-pole, three-wire grounding applications rated 20A at 250V. Designed to accept #18-12 AWG conductors, this connector features a durable thermoplastic housing with brass contacts for reliable, long-lasting electrical connections. Its yellow thermoplastic construction provides visual identification on the jobsite while the back wire, screw-terminal design speeds up field installation. Built for commercial power cord and equipment connection applications, the 4229-BOX delivers the performance and durability electrical professionals expect from Eaton's Arrow Hart line.

Key Features

  • Wire Range: Accepts #18-12 AWG conductors for flexible use with a range of cordset and equipment wiring.
  • Durable Construction: Thermoplastic housing with brass contacts deliver corrosion resistance and dependable conductivity.
  • Back Wire, Screw Termination: Back wire connection with screw terminals allows for quick, secure field wiring.
  • Electrical Rating: Rated 20A at 250V for commercial-duty power connections.
  • Configuration: 6-20R, two-pole, three-wire, grounding configuration ensures proper polarization and grounding continuity.
  • Finish: Yellow thermoplastic housing for easy visual identification of connector type and rating.
  • Commercial Grade: Built to commercial specification for use in demanding professional electrical environments.

Technical Specifications

  • Wire Size: #18-12 AWG
  • Amperage: 20A
  • Voltage: 250V
  • Configuration: 6-20R, Two-Pole, Three-Wire, Grounding
  • Termination: Back Wire, Screw
  • Housing Material: Thermoplastic
  • Contact Material: Brass
  • Color: Yellow
  • Grade: Commercial

Typical Applications

  • Commercial Power Cord and Equipment Connections
  • Field Wiring of Portable Equipment
  • Replacement of Worn or Damaged Plug and Connector Sets
  • Commercial and Light Industrial Electrical Systems

Why Eaton?

Eaton's Arrow Hart straight blade devices are built with durable thermoplastic housings and brass contacts to deliver dependable performance for commercial electrical connections. The 4229-BOX combines a proven 6-20R grounding configuration with a convenient back wire termination method, giving electrical professionals a connector that installs quickly and performs reliably at its rated 20A, 250V capacity. Choose Eaton for code-compliant, commercial-grade electrical connection solutions.

Manufacturer Resources

Product Specs

list_batch:
EAT-20260924
Product Type:
Straight Blade Connector
Voltage Rating:
250V
Amperage Rating:
20A
Configuration:
6-20R
Connection Type:
Back Wire
Department:
Electrical
Product Subgroup:
Plugs & Connectors
Product Material:
Thermoplastic
Product Color:
Yellow
Product Group:
Wiring Devices
Product Height:
2.61 in
Product Width:
1.54 in
Product Length:
1.54 in
Product Weight:
0.16 lb

Eaton 4229-BOX – Frequently Asked Questions

1) Will the Eaton 4229-BOX connector mate with a NEMA 6-20P plug on my equipment cord?
Yes. The Eaton 4229-BOX is a 6-20R female connector body, so it accepts a NEMA 6-20P straight blade plug. The 6-20R pattern is two-pole, three-wire grounding, rated 20A at 250V. A 6-15P plug will also enter a 6-20R, since the 15A plug blades are both vertical, but a 5-15P or 5-20P 125V plug will not fit.
2) What wire size can I land in the Eaton 4229-BOX connector?
The 4229-BOX takes #18 through #12 AWG conductors on back wire screw terminals. That covers 12 AWG for a full 20A circuit as well as smaller cord sizes on lighter equipment. Three conductors land: two hot and one equipment ground.
3) Can I use a 250V 6-20R connector on a 120V circuit?
No. The 4229-BOX is wired two-pole, three-wire with both poles hot, which is a 250V arrangement rated 20A. A 120V cord needs a 5-20R or 5-15R device with a hot, a neutral and a ground. Using the 6-20R pattern on 120V also leaves the cord able to accept 250V equipment, which is the reason the configurations are keyed differently.
4) Is the 4229-BOX a plug or a connector body?
It is a connector body, the female end of a cord assembly. A 6-20R connector goes on the load end of an extension or equipment cord so a 6-20P plug can be inserted into it. If you need the male end that goes into a 6-20R receptacle, you want a 6-20P plug instead.
5) What part number do I order for the Eaton Arrow Hart 6-20R connector?
Order Eaton Arrow Hart 4229-BOX. That single model number covers the yellow 6-20R, 20A 250V connector body with back wire screw terminals.
6) Why is this Eaton connector yellow, and does the color mean anything electrically?
The yellow thermoplastic housing is for visual identification on the jobsite, not an electrical rating. Crews use it to spot a 250V 20A cord end quickly in a pile of cords. The rating comes from the 6-20R configuration stamped on the device, so always read the pattern rather than relying on color.
7) Is the Eaton 4229-BOX tough enough for shop and jobsite cord repair?
It is built to commercial grade, with a thermoplastic housing and brass contacts for conductivity and corrosion resistance. Typical use is rebuilding worn or damaged cord ends on portable 250V equipment and commercial or light industrial power cords. For heavy abuse applications where the cord gets dragged and dropped constantly, an extra-hard-use or industrial-grade device is the step up.
