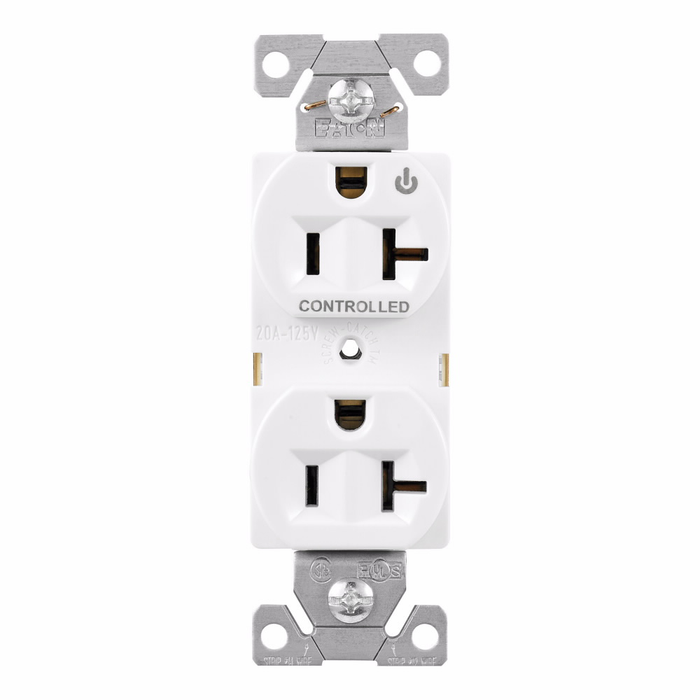

Eaton Arrow Hart Heavy-Duty Industrial Duplex Receptacle, 20A 125V, 5-20R

Eaton Arrow Hart Heavy-Duty Industrial Duplex Receptacle, 20A 125V, 5-20R

(No reviews yet) Write a Review

Model: 5362CH-W
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Heavy-Duty Industrial Duplex Receptacle, 20A 125V, 5-20R

The Eaton Arrow Hart Heavy-Duty Industrial Duplex Receptacle is a specification-grade device built for demanding commercial and industrial power distribution. Rated 20A at 125V with a 5-20R NEMA configuration, this 2-pole, 3-wire receptacle features auto-grounding, screw-catch mounting, and a #14-10 AWG wire range, making it a dependable choice for professional electrical installations that require consistent, code-compliant performance.

Key Features

  • Wire Range: Accepts #14-10 AWG conductors for flexible field wiring on a variety of branch circuits.
  • Durable Construction: Brass contacts paired with a high-impact nylon face and a PVC base deliver long-term durability and resistance to everyday wear.
  • Auto-Grounding, Screw-Catch Design: Simplifies installation while maintaining a secure, reliable ground path for safety-critical applications.
  • Electrical Rating: Rated 20A at 125V for standard industrial and commercial branch-circuit loads.
  • NEMA Configuration: 5-20R, 2-pole, 3-wire configuration for compatibility with common 20A, 125V plugs.
  • Flush Mounting: Designed for flush installation in standard wall boxes and device plates.
  • Screw Terminals: Screw-type termination for a secure, code-compliant wire connection.
  • Half Control: Half-control duplex configuration for applications requiring split-circuit switching.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Warranty: Refer to warranty document.
  • Product Type: Receptacle
  • Department: Electrical

Typical Applications

  • Commercial and Industrial Electrical Installations
  • 20A, 125V Power Distribution for Equipment and Tools
  • Panelboard-Fed Wall Outlet Wiring
  • Duplex Outlet Replacement in Industrial Facilities
  • Renovation and New Construction Projects

Why Eaton?

Eaton's Arrow Hart line is engineered to specification grade, combining brass contacts, a high-impact nylon face, and a PVC base for reliable, long-lasting performance in demanding industrial environments. With auto-grounding, screw-catch construction and RoHS-compliant materials, this duplex receptacle is built to support safe, code-compliant electrical work on commercial and industrial projects. Choose Eaton Arrow Hart for dependable 20A, 125V power distribution backed by specification-grade construction.

Manufacturer Resources

Product Specs

Warranty:
Refer to warranty document.
Compliances:
RoHS Compliant
Product Type:
Duplex Receptacle
Department:
Electrical
Product Material:
Brass
Voltage Rating:
125V
Amperage Rating:
20A
Configuration:
5-20R
Connection Type:
Screw
Standards:
RoHS Compliant
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Eaton 5362CH-W – Frequently Asked Questions

1) Will a NEMA 5-20R receptacle also accept a standard 15A straight-blade plug?
Yes. The Eaton Arrow Hart heavy-duty duplex receptacle is a 5-20R, 2-pole 3-wire device rated 20A at 125V, and a 5-20R face takes both the T-slot 20A plug and the common 5-15P two-blade-plus-ground plug. That is why it is the usual choice for shop and equipment outlets where tools may come with either cord cap.
2) What wire size can I land on the Eaton Arrow Hart 5361B industrial receptacle?
It takes #14 through #10 AWG on screw-type terminals, so it wires to a 15A or 20A branch circuit in copper, and #10 gives you room on long homeruns or where the designer upsized for voltage drop. Termination is screw, not push-in.
3) Does this Arrow Hart receptacle self-ground, or do I still need a bonding jumper to the box?
The device is auto-grounding with a screw-catch design, so the mounting strap maintains the ground path through the yoke screw into a properly grounded metal box. There is still a green grounding screw on the device for a bonding conductor where your spec or inspector wants one pulled.
4) Is this receptacle tough enough for a shop floor, or should I be looking at something heavier?
It is a specification-grade industrial device: brass contacts, high-impact nylon face, PVC base. That is the right class for shop, plant, and commercial branch-circuit outlets. What it is not is a wet or hazardous-location device. For classified areas you want an explosionproof unit like the Appleton FSQC Series interlocked receptacle, and for a factory-sealed plug-and-receptacle set the Appleton U-Line ECS is the alternative.
5) Can I put this 5-20R receptacle on a 277V circuit?
No. It is rated 125V only, and a 5-20R configuration is a 125V blade pattern. For 277V you need a device built for it, such as the Pass & Seymour 5762 duplex self-grounding receptacle at 15A 277V or the Bryant 430R9W 2-pole 3-wire 277V motor-duty receptacle.
6) Which 20A 125V receptacle should I use if the circuit needs an isolated ground?
Use the Pass & Seymour IG5362-I, a heavy-duty spec-grade isolated ground duplex receptacle rated 20A 125V. The Eaton Arrow Hart 5361B is an auto-grounding device at the same 20A, 125V rating, so its ground path bonds to the box rather than running isolated back to the panel. For sensitive electronics branch circuits specified with isolated ground, the IG5362-I is the correct choice.
7) What is a direct equivalent to the Eaton Arrow Hart 5361B heavy-duty 20A 125V duplex receptacle from another brand?
The Bryant 5362B is the closest match: it is a heavy-duty 20A/125V duplex receptacle, the same 20A at 125V rating and duplex format as the Eaton Arrow Hart 5361B with its 5-20R configuration. Bryant also offers the 5362BI, another 20A/125V heavy-duty duplex receptacle, if you need the alternate color designation in that series.
8) What receptacle do I use instead of the Eaton 5361B in a hazardous or wet industrial location?
For classified areas, the Appleton FSQC Series interlocked explosionproof receptacle is the appropriate device, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole option where a factory-sealed plug and receptacle pair is specified. The Eaton Arrow Hart 5361B is a flush-mounted device for standard wall boxes and device plates, intended for general commercial and industrial branch circuits rather than classified locations.
9) Can I use this duplex receptacle for split-circuit or half-switched outlets?
Yes. It is a half-control duplex, which means one half can be switched or controlled separately from the other once you break the brass tab between the hot terminals. That is the configuration used for plug load control and for half-hot outlets fed from a wall switch.
10) What colors does the Eaton Arrow Hart 20A 125V industrial duplex come in?
Two: brown (part 5361B) and white (part 5362CH-W). Pick to match the existing devices and plates on the rest of the floor, since both are the same 20A 125V 5-20R device electrically.
11) Will this fit a standard single-gang box and a regular duplex wall plate?
Yes. It is a flush-mount duplex built for standard wall boxes and standard device plates, so a common duplex cover plate fits. Plates are not included, so order them separately if you are replacing a whole run of outlets.
12) What are the equivalent 20A 125V heavy-duty duplex receptacles from other brands?
The closest cross-brand matches we carry are the Bryant 5362B heavy-duty 20A/125V duplex and the Bryant 5362BI, both listed as heavy-duty grade at the same 20A 125V rating. If you need four outlets in one box instead of two, the Bryant 21254IGO is a quad 5-20R 20A device.
13) Is there a 20A 125V receptacle with built-in load timing instead of the Eaton 5361B's half-control switching?
Yes. The Pass & Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle rated 20A 125V, which cuts the controlled outlet on a timer at the device. The Eaton Arrow Hart 5361B uses a half-control duplex configuration, where the split outlet is switched from a separate circuit conductor. Pick the timer version when you do not want to run a switch leg to the box.
14) I need more than two outlets at one location in 20A 125V - what is the alternative to the Eaton 5361B duplex?
The Bryant 21254IGO is a quad straight-blade receptacle in NEMA 5-20R at 20A, giving four outlets at a single device location instead of the two on the Eaton Arrow Hart 5361B, which is a 5-20R duplex. The quad requires a box and plate sized for a two-gang device, so confirm the opening before ordering.
15) Will a Pass & Seymour Turnlok 3330 work in place of the Eaton Arrow Hart 5361B?
No. The Pass & Seymour Turnlok 3330 is a 30A non-NEMA single receptacle using a locking blade pattern, so standard straight-blade cords will not mate with it. The Eaton Arrow Hart 5361B is a 5-20R duplex rated 20A at 125V for common 20A 125V plugs. Choose the Turnlok only when the equipment cord has a matching twist-lock plug.
16) Does this Eaton receptacle meet RoHS for a government or institutional spec?
RoHS compliant, which is the material restriction most public and institutional submittals ask for on wiring devices. That is the compliance statement carried on the device.
