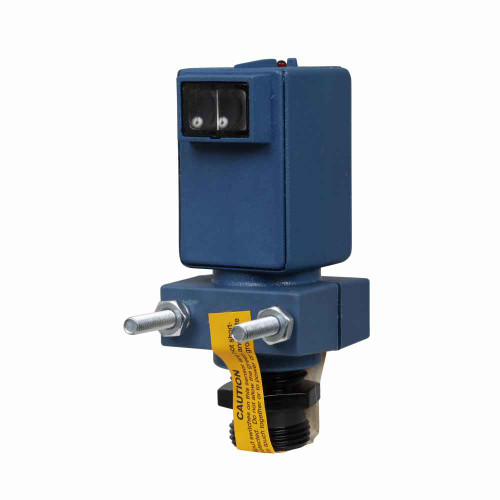

Eaton 80 Series Photoelectric Switch Body, Photoelectric, Noryl enclosure, 50 mA at 132 VAC max AC, 50 mA at 188 VDC max DC, Isolated Solid State Relay, 50 mA at 132Vac/188Vdc, Screw Terminals, 97-130 Vac input
Manufacturer Resources
Product Specs
- Certifications:
- CSA Certified
- Connection:
- Screw terminal
- Contact Configuration:
- Isolated solid state relay
- Contact Rating:
- 50 mA at 132Vac/188Vdc
- Enclosure Material:
- Noryl
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
- Input Voltage:
- 97-130 Vac
- Led Indicator:
- Beam status: red
- Maximum Ac Current:
- 50 mA at 132 Vac
- Maximum Dc Current:
- 50 mA at 188 Vdc
- Operating Temperature Max:
- 131 °F
- Operating Temperature Min:
- -4 °F
- Product Height:
- 4 in
- Product Length Depth:
- 2 in
- Product Weight:
- .5 lb
- Product Width:
- 2 in
- Switch Type:
- Photoelectric
- Product Group:
- Electrical
