Eaton A200/B100 Overload Heater Element, NEMA Design, 78-84A Non-Comp, Thermal and Fast Trip

Eaton A200/B100 Overload Heater Element, NEMA Design, 78-84A Non-Comp, Thermal and Fast Trip

(No reviews yet) Write a Review

Model: FH88

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton A200/B100 Overload Heater Element, NEMA Design, 78-84A Non-Comp, Thermal and Fast Trip

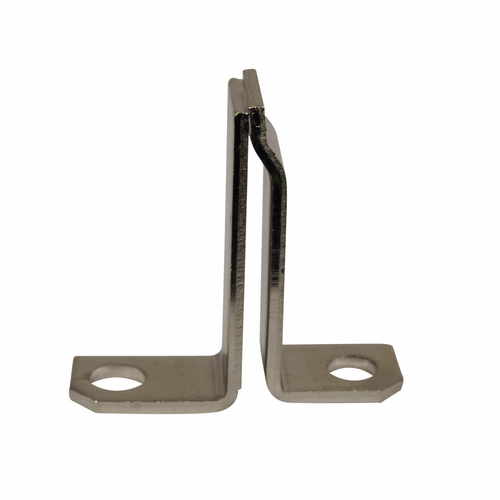

The Eaton A200/B100 heater is a NEMA design overload heater element used with A200 Starter Sizes 3 and 4 on 3-Phase Only motor control applications. Rated for a Non-Comp full load current range of 78-84A, this heater coil features a thermal and fast trip design, compatible with Type A and B overload relays for reliable, code-compliant motor protection.

Key Features

  • Used With: A200 Starter Sizes 3 & 4, 3-Phase Only applications.
  • Type: A200 Heater designed to NEMA standards for consistent fit and performance.
  • Overload Relay Compatibility: Works with Type A and B overload relays.
  • Trip Type: Thermal and fast trip response for dependable overload protection.
  • Current Rating: Non-Comp 78-84A, selected based on motor nameplate full load current (FLA).
  • Application Note: Heater coils are rated to protect a 40 degree C rise motor with a service factor of 1.15; Three-Phase applications require 3 heaters.

Technical Specifications

  • Product Type: Motor Starter
  • Department: Electrical
  • Design: NEMA
  • Trip Type: Thermal and Fast Trip
  • Overload Relay: Type A and B
  • Used With: A200 Starter Sizes 3 & 4, 3-Phase Only

Typical Applications

  • Commercial and Industrial Motor Control Installations
  • A200 Series Starter Overload Protection
  • Three-Phase Motor Circuits
  • Panelboard and Motor Control Center Maintenance
  • Replacement Heater Coil Upgrades for Existing Starters

Why Eaton?

Eaton heater elements are engineered to NEMA design standards, delivering precise thermal and fast trip overload protection for A200 Series motor starters. Backed by Eaton's selling policy warranty, these heater coils provide dependable, code-compliant performance for demanding three-phase motor control applications.

Manufacturer Resources

Product Specs

Used with:
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
Special features:
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
Product Type:
Motor Starter
Overload relay:
Type A and B
Trip type:
Thermal and fast trip
Product Design:
NEMA
Department:
Electrical
Amperage Rating:
78-84A
Configuration:
NEMA
Product Group:
Starters & Contactors

Eaton FH88 – Frequently Asked Questions

1) How do I pick the right Eaton FH heater element for my motor?
Selection is by the motor's nameplate full load amps, not by horsepower. The Eaton A200/B100 heater elements are ordered by motor FLA, and the range runs from the FH73 at 9A up through the FH88 at 85-92A, with steps in between such as FH71 at 18.9A, FH72 at 19.0-20.8A, FH74 at 23.0-25.2A, FH80 at 41.6-56.3A, FH82 at 51-55A, FH83 at 56-61A, FH86 at 74-78A and FH87 at 79-84A. Read the FLA off the motor nameplate and match it to the band.
2) How many heater elements do I need to order for a three-phase starter?
Three. The A200 heater elements are for 3-phase only applications, and a three-phase motor circuit takes one heater per phase, so order three of the same catalog number for a single starter. Buying one will leave two poles unprotected.
3) Will these heaters fit my Eaton A200 size 1 or size 2 starter?
No. These heater elements are specified for A200 starter sizes 3 and 4. A size 1 or size 2 A200 starter uses a different heater table, so ordering from this range will get you the wrong element.
4) My motor nameplate reads 60 FLA. Which Eaton FH heater do I order?
The FH83 covers 56-61A, so a 60A nameplate lands in that band. Just above it, FH86 picks up at 74-78A and FH87 covers 79-84A. Always size from the nameplate FLA of the specific motor, not from a breaker or wire size.
5) Do these work with Type A and Type B overload relays?
Yes. The A200/B100 heater coils are built to work with both Type A and Type B overload relays, which is what you will find in A200 and B100 starter lines. The design is NEMA, so the element seats in the relay the same way the original did.
6) Are these heaters sized for a 1.15 service factor motor?
Yes. Eaton rates these heater coils to protect a motor with a 40 degree C rise and a 1.15 service factor. If your motor has a 1.0 service factor or a different temperature rise, the heater has to be sized down from the standard table rather than picked straight off the FLA band.
7) What does the 78-84A Non-Comp rating on this Eaton heater mean?
It is the non-compensated full load current range the element covers, 78-84A. Non-compensated means the trip point is not adjusted for ambient temperature differences between the starter enclosure and the motor location. If your starter sits in a hot room and the motor does not (or the reverse), that difference will shift the trip point.
8) Can I use these as replacement heater coils in an existing motor control center?
That is the usual use. These are direct replacement heater elements for A200 series size 3 and 4 starters in panelboards and motor control centers. Pull the old element, read its catalog number or re-check the motor nameplate FLA, and order three of the matching FH number.
9) What kind of trip response do these Eaton heater coils give?
Thermal and fast trip. The element heats in proportion to motor current and opens the overload relay contact on sustained overload, with a fast trip response for harder faults. That is the standard NEMA-style melting/thermal protection used in A200 starters.
How fast can I get the Eaton FH88 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton FH88 come with a warranty?
Absolutely. The Eaton FH88 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton FH88?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
