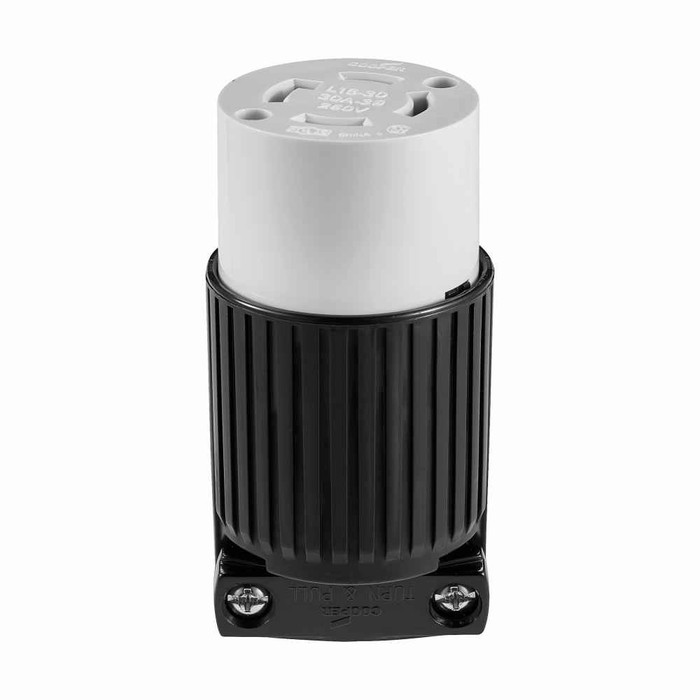

Eaton Arrow Hart Ultra Grip Locking Connector 30A 250V L15-30 Three-Pole Four-Wire Industrial Grade

Eaton Arrow Hart Ultra Grip L15-30 Locking Connector 30A 250V Three-Pole Four-Wire Industrial Grade

(No reviews yet) Write a Review

Model: EAT-L1530C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$115.17
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Ultra Grip L15-30 Locking Connector 30A 250V Three-Pole Four-Wire Industrial Grade

Professional Industrial Power Connection Solution

The Eaton Arrow Hart Ultra Grip L15-30 locking connector delivers reliable 30A, 250V three-phase power connection for demanding industrial applications. This commercial-grade connector features watertight locking design with thermoplastic construction and brass contacts, ensuring secure power delivery in challenging environments with operating temperatures from -20 to 60°C.

Professional Features & Benefits

  • 30A Current Rating: Handles substantial power loads for industrial equipment and machinery applications.
  • L15-30 NEMA Configuration: Standard three-pole, four-wire design ensures compatibility with industrial power systems.
  • Watertight Locking Design: Provides secure connection protection against moisture and environmental contaminants.
  • Brass Contact Material: Delivers excellent conductivity and corrosion resistance for long-term reliability.
  • Thermoplastic Construction: Offers durability and chemical resistance in industrial environments.
  • Wide Operating Range: Functions reliably from -20 to 60°C for versatile installation conditions.
  • Commercial Device Grade: Built to professional standards for demanding commercial and industrial use.

Technical Specifications

  • Amperage Rating: 30A
  • Application: Industrial
  • Contact Material: Brass
  • Cord Diameter: 0.25-0.69 in (6.4 mm-17.5 mm)
  • Design Type: Standard locking connector
  • Device Grade: Commercial
  • Face Body Material: Thermoplastic
  • Nema Configuration: L15-30
  • Number Of Poles: Three-pole
  • Number Of Wires: 4
  • Operating Temperature: -20 to 60 °C (-4 to 140 °F)
  • Product Color: Black
  • Product Details: Locking connector
  • Product Material: Thermoplastic
  • Special Features: Watertight locking receptacle
  • Voltage Rating: 3Ø 250 V
  • Wiring Method: Back

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Manufacturing Equipment
  • Commercial Kitchen Appliances
  • Heavy-Duty Power Tools
  • Welding Equipment Connections
  • Portable Generator Interfaces
  • Construction Site Power Distribution
  • Marine and Outdoor Applications

Why Choose Eaton Quality?

Eaton Arrow Hart connectors provide proven reliability with commercial-grade construction and watertight protection. The thermoplastic housing and brass contacts ensure long-term performance in demanding industrial environments, backed by Eaton's commitment to electrical safety and durability standards.

Manufacturer Resources

Product Specs

Amperage Rating:
30A
Application:
Industrial
Contact Material:
Brass
Cord Diameter:
0.25-0.69 in (6.4 mm-17.5 mm)
Design Type:
Standard locking connector
Device Grade:
Commercial
Face Body Material:
Thermoplastic
Nema Configuration:
L15-30
Number Of Poles:
Three-pole
Number Of Wires:
4
Operating Temperature:
-20 to 60 °C (-4 to 140 °F)
Product Color:
Black
Product Details:
Locking connector
Product Material:
Thermoplastic
Special Features:
Watertight locking receptacle
Voltage Rating:
3Ø 250 V
Wiring Method:
Back
Product Type:
Connector
Product Group:
Accessories
