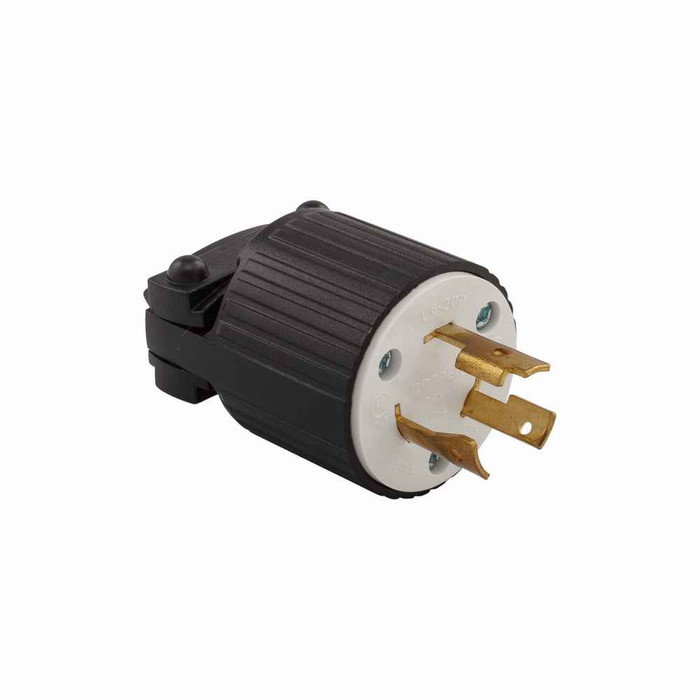

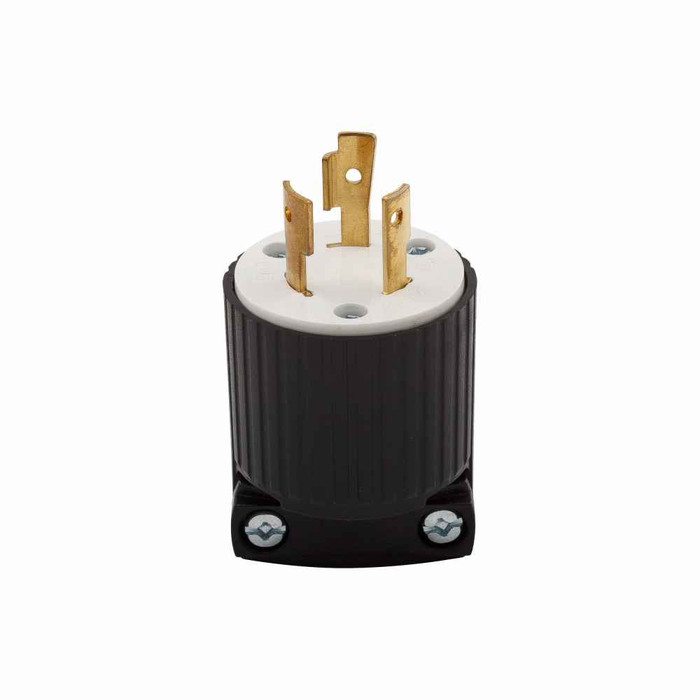

Eaton L6-20 Industrial Locking Plug 20A 250V Two-Pole Three-Wire with Ultra Grip

Eaton L6-20 Industrial Locking Plug 20A 250V Two-Pole Three-Wire with Ultra Grip

Professional Industrial Power Connection Solution

The Eaton L6-20 Industrial Locking Plug delivers reliable 20A, 250V power connection for demanding industrial applications. This two-pole, three-wire locking plug features thermoplastic construction with brass contacts and ultra grip design for secure connections. The back wiring method and commercial device grade ensure professional installation and long-term performance in industrial environments.

Professional Features & Benefits

• 20A Current Rating: Handles substantial power loads for industrial equipment and machinery applications.
• 250V Voltage Rating: Supports higher voltage requirements for commercial and industrial power distribution.
• L6-20 NEMA Configuration: Standard locking configuration ensures compatibility with matching receptacles and reliable connection.
• Brass Contact Material: Provides excellent conductivity and corrosion resistance for long-term electrical performance.
• Thermoplastic Construction: Durable face body and product material withstand industrial environments and temperature variations.
• Ultra Grip Design: Enhanced grip features facilitate secure handling and connection in demanding work conditions.
• Back Wiring Method: Professional wiring configuration allows for clean, secure electrical connections.

Technical Specifications

• Amperage Rating: 20 A
• Application: Industrial
• Contact Material: Brass
• Cord Diameter: 0.25-0.69 in (6.4 mm-17.5 mm)
• Design Type: Standard locking plug
• Device Grade: Commercial
• Face Body Material: Thermoplastic
• Nema Configuration: L6-20
• Number Of Poles: Two-pole
• Number Of Wires: 3
• Operating Temperature: -20 to 60 °C (-4 to 140 °F)
• Product Color: Black
• Product Details: Locking plug
• Product Material: Thermoplastic
• Special Features: Severe duty locking connector
• Voltage Rating: 250 V
• Wiring Method: Back

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Manufacturing Equipment
• Commercial Power Distribution
• Heavy Duty Machinery Connections
• Professional Workshop Applications
• Temporary Power Distribution
• Portable Equipment Connections
• Maintenance and Service Applications

Why Choose Eaton Quality?

Eaton industrial locking plugs provide dependable performance with commercial device grade construction and severe duty design. The thermoplastic materials and brass contacts ensure reliable operation across the -20 to 60°C operating temperature range, delivering the professional-grade connectivity solutions that electrical contractors and industrial facilities trust.
