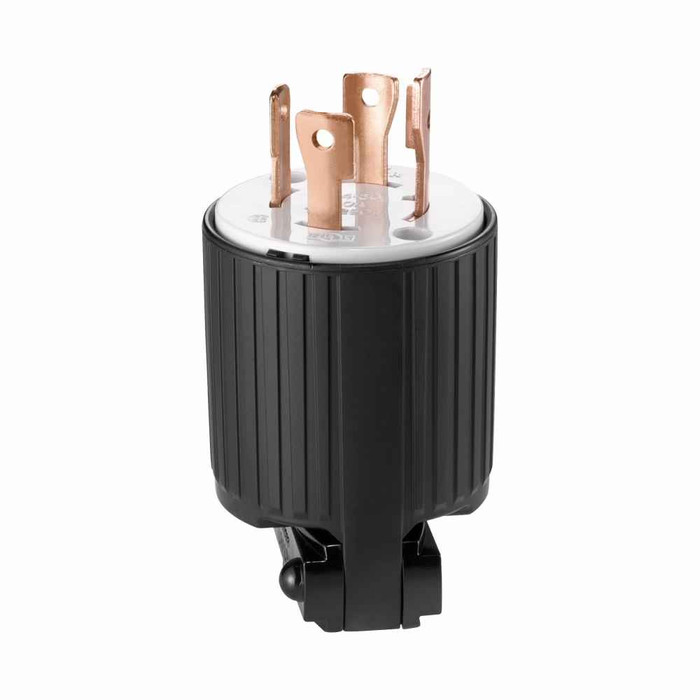

Eaton L14-30 Industrial Locking Plug 30A 125/250V Three-Pole Four-Wire with Ultra Grip
Professional Grade Industrial Power Connection Solution
The Eaton L14-30 Industrial Locking Plug delivers reliable 30A power connection for demanding industrial applications. This three-pole, four-wire locking plug features 125/250V rating with thermoplastic construction and brass contacts for dependable performance. The Ultra Grip design ensures secure connections while the NEMA L14-30 configuration provides standardized compatibility across industrial power systems.
Professional Features & Benefits
- 30A Amperage Rating: Handles substantial power loads for industrial equipment and machinery applications
- 125/250V Dual Voltage: Versatile voltage compatibility for diverse industrial power requirements
- NEMA L14-30 Configuration: Industry-standard locking design ensures secure, twist-lock connections that resist accidental disconnection
- Brass Contact Material: Superior conductivity and corrosion resistance for long-term reliability in industrial environments
- Thermoplastic Construction: Durable face body and housing material withstands industrial use and environmental conditions
- Ultra Grip Design: Enhanced grip surface facilitates secure handling and connection in demanding work environments
- Commercial Device Grade: Built to commercial standards for professional applications requiring dependable power connections
Technical Specifications
- Amperage Rating: 30A
- Application: Industrial
- Contact Material: Brass
- Cord Diameter: 0.25-0.69 in (6.4 mm-17.5 mm)
- Design Type: Standard locking plug
- Device Grade: Commercial
- Face Body Material: Thermoplastic
- Nema Configuration: L14-30
- Number Of Poles: Three-pole
- Number Of Wires: 4
- Operating Temperature: -20 to 60 °C (-4 to 140 °F)
- Product Color: Black
- Product Details: Locking plug
- Product Material: Thermoplastic
- Special Features: Severe duty locking connector
- Voltage Rating: 125/250 V
- Wiring Method: Back
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Industrial Equipment Power Connections
- Generator Transfer Applications
- Portable Power Distribution
- Manufacturing Facility Power Systems
- Construction Site Temporary Power
- Commercial Kitchen Equipment
- Heavy Duty Appliance Connections
Why Choose Eaton Quality?
Eaton industrial locking plugs provide proven reliability with commercial-grade construction and brass contact materials. The severe duty locking connector design and wide operating temperature range from -20 to 60°C ensure dependable performance across demanding industrial applications.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 30A
- Application:
- Industrial
- Contact Material:
- Brass
- Cord Diameter:
- 0.25-0.69 in (6.4 mm-17.5 mm)
- Design Type:
- Standard locking plug
- Device Grade:
- Commercial
- Face Body Material:
- Thermoplastic
- Nema Configuration:
- L14-30
- Number Of Poles:
- Three-pole
- Number Of Wires:
- 4
- Operating Temperature:
- -20 to 60 °C (-4 to 140 °F)
- Product Color:
- Black
- Product Details:
- Locking plug
- Product Material:
- Thermoplastic
- Special Features:
- Severe duty locking connector
- Voltage Rating:
- 125/250 V
- Wiring Method:
- Back
- Product Type:
- Plugs
- Product Group:
- Wiring Devices
