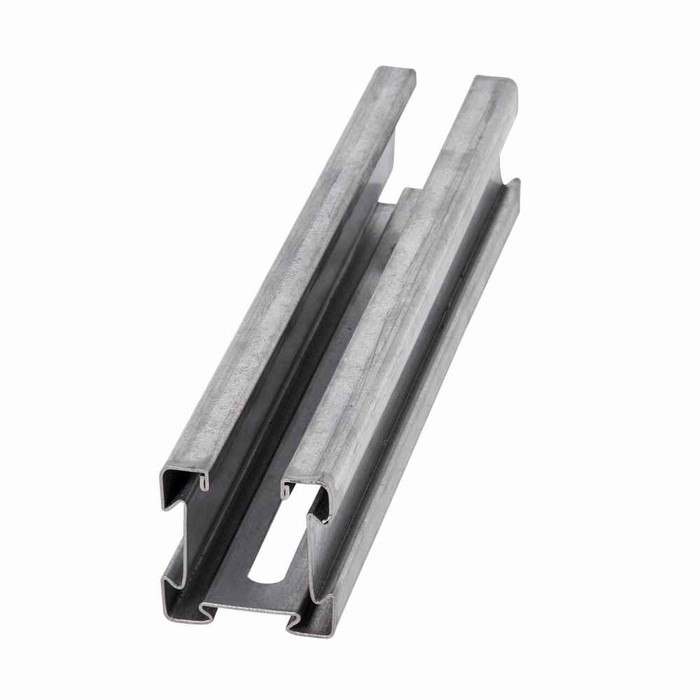

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- S
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 120 IN
- Product Weight:
- 16.03 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Pre-galvanized
- Product Material:
- Steel
B-LINE 4D22S-120GLV – Frequently Asked Questions
1) Is pre-galvanized strut channel OK for outdoor or wet locations?
The 4D22S-120GLV is steel with a pre-galvanized finish, which is a mill-applied zinc coating on the sheet before forming. That suits dry interior work, mechanical rooms, parking structures and other sheltered areas. Cut ends and punched edges are bare steel, so for direct weather exposure, coastal air or corrosive process areas, a hot-dip galvanized or stainless channel is the better call.
2) What does the S in B-Line 4D22S mean for the hole pattern?
S is the slotted back pattern. The 4D22S channel comes punched along the base rather than solid, so you can bolt it straight to structure or to another piece of strut without drilling in the field. If your job calls for an unpunched solid back, 4D22S is not the one to order.
3) Can I stack two pieces of this channel back to back for a heavier run?
Back to back assembly works with the 4D22S because the base is slotted, so you can bolt two 2.12 inch sections together through the existing punching instead of drilling. Doubling the channel is the usual way to add capacity on a longer trapeze span without moving to a heavier gauge stick.
4) What is the exact part number and UPC for this 10 foot B-Line strut?
Order it as Eaton B-Line 4D22S-120GLV. The code reads plainly once you break it up: 4D22 profile, S slotted pattern, 120 inch length, GLV for the pre-galvanized finish. UPC 799038582847.
5) Can I field cut this strut channel to length?
Yes, 18 gauge pre-galvanized steel channel cuts readily with a bandsaw, chop saw with a metal blade or a portaband. Cutting exposes bare steel at the end, so on anything that sees moisture, brush the cut with a cold galvanizing compound before you hang it.
