B-Line Eaton series fiberglass...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$158.13
$128.83

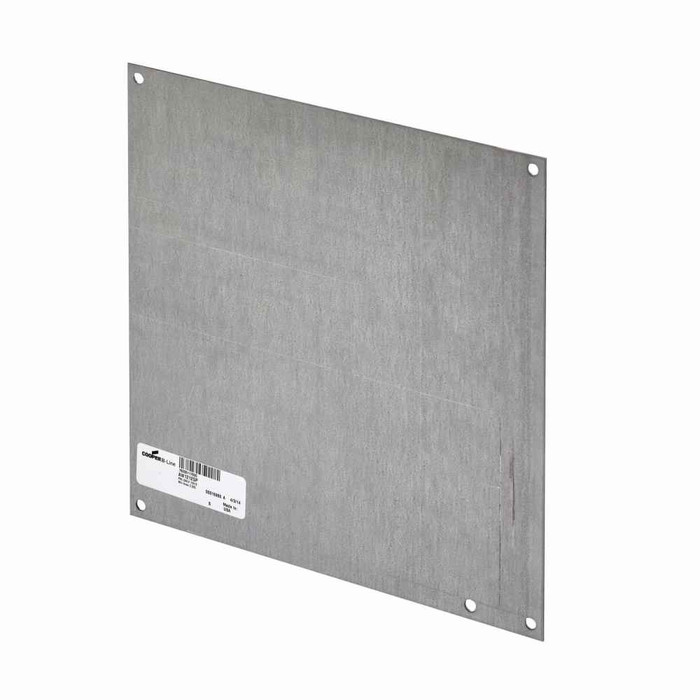

B-Line Eaton series fiberglass accessories, Smooth brushed, Stainless steel, Fiberglass accessories, Fits 8" X 6" enclosures, Back panel, 14 gauge

B-Line Eaton series fiberglass accessories, Smooth brushed, Stainless steel, Fiberglass accessories, Fits 8" X 6" enclosures, Back panel, 14 gauge

(No reviews yet) Write a Review

Model: AW86SP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$158.13
$128.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series fiberglass accessories, Smooth brushed, Stainless steel, Fiberglass accessories, Fits 8" X 6" enclosures, Back panel, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Finish Color:
Brushed
Product Category:
Fiberglass accessories
Product Height:
6.87 in
Product Length Depth:
6.87 in
Product Weight:
.712 lb
Product Width:
6.87 in
Special Features:
Fits 8" X 6" enclosures
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Flat panel for fiberglass enclosures
Product Details:
Flat panel for fiberglass enclosures
Product Material:
Stainless steel

B-LINE AW86SP – Frequently Asked Questions

1) What size enclosure does the B-Line AW86SP back panel fit?
The Eaton B-Line AW86SP back panel is sized for 8 inch by 6 inch fiberglass enclosures. The panel itself measures 6.87 inches, so it sits inside the box rather than matching the nominal enclosure dimensions. If your enclosure is a different nominal size, you need the panel built for that size instead.
2) Is the AW86SP panel steel or stainless, and will it hold up in a washdown or corrosive area?
Stainless steel, with a smooth brushed finish. That is the reason to pick it over a painted carbon steel panel when the enclosure is mounted outdoors, in a food or washdown area, or anywhere with chemical exposure. The fiberglass enclosure already resists corrosion; a stainless back panel keeps the mounting surface from becoming the weak point.
3) What gauge is the B-Line AW86SP back panel and will it support a small contactor or terminal blocks?
It is a 14 gauge flat panel, which is the standard subpanel thickness for mounting DIN rail, terminal strips, small contactors, relays and control components. Drill and tap it as needed for your layout. Total panel weight is .712 lb.
4) Does a fiberglass enclosure come with a back panel, or do I order the AW86SP separately?
Back panels for fiberglass enclosures are ordered as a separate accessory, which is what the AW86SP is. If you bought an 8 x 6 fiberglass box and there is nothing to mount components to, this is the missing piece. Mounting hardware provisions are built into the enclosure, not the panel.
5) What is the actual usable panel area of the AW86SP for laying out components?
The panel measures 6.87 x 6.87 x 6.87 inches as published across its height, width and depth fields, so plan your DIN rail and wireway layout around a roughly 6.87 inch working face inside an 8 x 6 fiberglass enclosure. Lay out your largest component first and confirm your rail length against that dimension.
6) What is the exact part number to order this B-Line back panel?
Order Eaton B-Line part number AW86SP. That is the stainless steel, 14 gauge, smooth brushed back panel for 8 x 6 fiberglass enclosures in the B-Line fiberglass accessories line.
