B-Line AF9024HSWP Eaton series...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,306.91

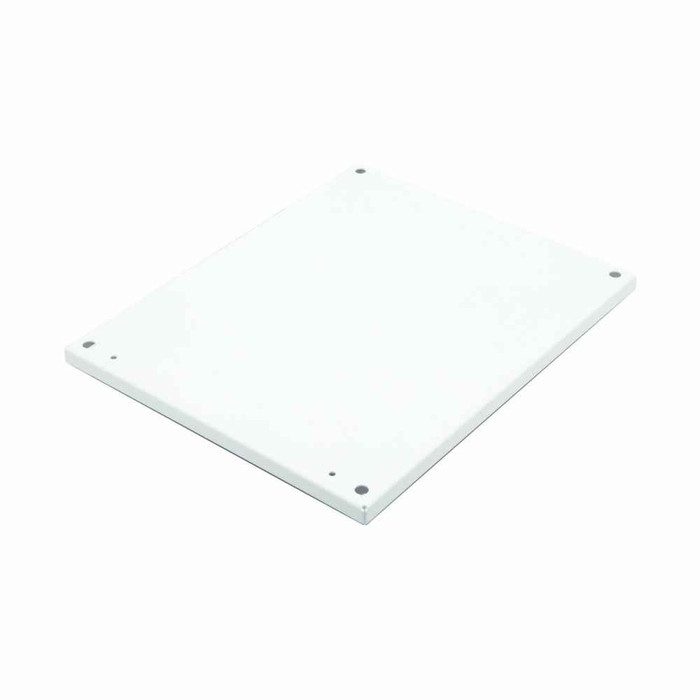

B-Line AF9024HSWP Eaton series free standing enclosure accessories, NEMA 4, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount

B-Line AF9024HSWP Eaton series free standing enclosure accessories, NEMA 4, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount

(No reviews yet) Write a Review

Model: AF9024HSWP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,306.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series free standing enclosure accessories, NEMA 4, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount

Manufacturer Resources

Product Specs

Application:
Used to hinge panels on left or right side
Certifications:
UL Listed
Degree Of Protection:
NEMA 4
Product Category:
Free-standing enclosure accessories
Product Height:
39.75 in
Product Length Depth:
39.75 in
Product Weight:
36.579 lb
Product Width:
18.75 in
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Full and half swing panel
Product Details:
Full and half swing panel
Product Style:
7mm square latch insert
Product Material:
Steel

B-LINE AF9024HSWP – Frequently Asked Questions

1) What size swing panel is the B-Line AF9024HSWP, and will it fit my enclosure?
The AF9024HSWP swing panel measures 39.75 inches high by 18.75 inches wide, with a stated length/depth of 39.75 inches. Match those figures against the usable mounting space inside your free standing enclosure before ordering; a swing panel has to clear the door and any door mounted devices through its full arc.
2) Can the AF9024HSWP swing panel be hinged on the right side, or is it left hand only?
It hinges either way. The AF9024HSWP is made to hinge panels on the left or right side, so you pick the swing direction on site based on where your enclosure door opens and where you need access to the back of the panel.
3) Does this swing panel keep my NEMA 4 enclosure rating intact?
The AF9024HSWP is rated to NEMA 4 and is UL Listed, so it is intended for use in watertight, dust-tight free standing enclosures. It is an interior mounting panel, so the enclosure's own gasketing and latching still do the sealing, the panel just does not compromise that rating when installed as intended.
4) Is the AF9024HSWP a full swing or a half swing panel?
Both configurations are covered, it is catalogued as a full and half swing panel. Full swing gives you the whole panel face on one hinged leaf; half swing splits the arc so you can get behind part of the panel in a tighter enclosure. Decide based on the clearance in front of the enclosure once the door is open.
5) What is the latch on this Eaton B-Line swing panel, and what tool opens it?
It uses a 7mm square latch insert, so a 7mm square socket key or driver operates it. That matches the common Eaton B-Line enclosure latch pattern, so crews standardizing on one key across a room of enclosures can keep using the same tool.
6) How is the AF9024HSWP mounted inside the enclosure?
Channel mount. The swing panel hardware attaches to the enclosure's mounting channels rather than requiring drilled holes in the enclosure walls, which keeps the NEMA 4 envelope unbroken. Confirm your free standing enclosure has the B-Line mounting channel already fitted.
7) Is this swing panel steel or aluminum, and how much does it weigh for handling?
Steel, at 36.579 lb. That is a two-person lift into a tall free standing enclosure, and the weight matters for the hinge side of the panel, so make sure the channel hardware is fully seated and tightened before loading devices onto the panel face.
8) I need to order this part for a panel shop, what is the exact manufacturer number?
Order it as Eaton B-Line AF9024HSWP. It is the single model on the line, a NEMA 4 rated steel full and half swing panel for free standing enclosures, so there are no finish or size suffixes to specify.
