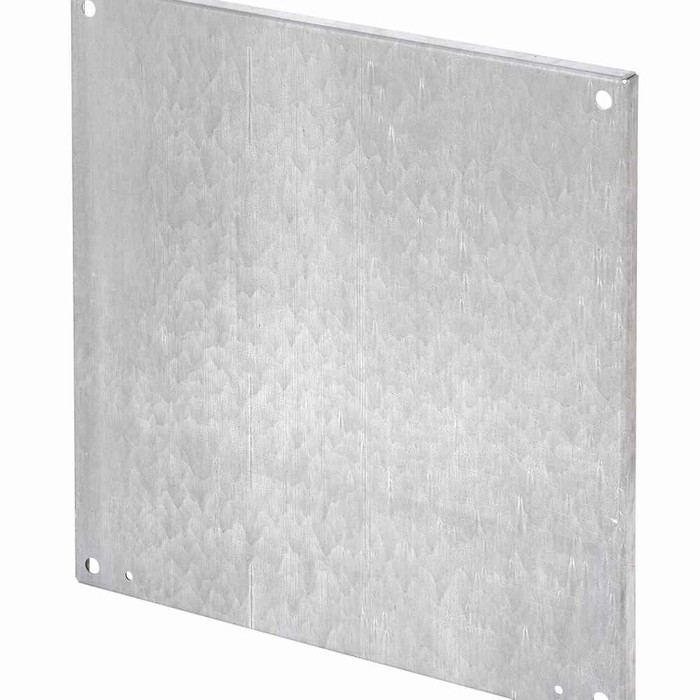

Eaton B-Line series mounting panels, Brushed finish, Aluminum, Used with 72" X 60" enclosures, Large NEMA flanged panels
Manufacturer Resources
Product Specs
- Certifications:
- CSA C22.2.
- Finish Color:
- Brushed
- Product Height:
- 68.87 in
- Product Length Depth:
- 32.87 in
- Product Weight:
- 45.974 lb
- Product Width:
- 32.87 in
- Special Features:
- Used with 72" X 60" enclosures
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- Medium perforated panels
- Product Details:
- Medium perforated panels
- Product Material:
- Aluminum
B-LINE AW7260AP – Frequently Asked Questions
1) What size enclosure does the B-Line AW7260AP mounting panel fit?
The AW7260AP aluminum panel is made for 72 inch by 60 inch enclosures. It is a large flanged NEMA panel, so it mounts to the flange points inside that enclosure size rather than free-floating. If your box is a different footprint, this panel is the wrong part number.
2) What are the actual panel dimensions on the B-Line AW7260AP?
Stated dimensions are 68.87 in height, 32.87 in width, and 32.87 in length/depth. Those are the panel's own measurements, not the enclosure opening, so check your interior clearance and any devices already rail-mounted before you slide it in.
3) Is the AW7260AP a solid back panel or perforated?
It is a perforated panel, listed as a medium perforated panel. The perforation pattern lets you mount components without drilling and tapping every hole, and it helps air move around heat-producing gear inside the enclosure. If you need an uninterrupted solid surface for a custom device layout, specify a solid back panel instead.
4) Is the AW7260AP panel aluminum or steel?
Aluminum, with a brushed finish. Aluminum keeps the weight down on a panel this size and does not need paint for corrosion resistance the way bare steel does. If your spec calls for a painted steel back panel with a white epoxy finish, this is not that part.
5) Does the B-Line AW7260AP carry any certification for a Canadian job?
The panel is listed to CSA C22.2. That is the Canadian Standards Association series for electrical enclosure and equipment construction, which is what an inspector on a Canadian install will be looking for.
6) What is the part number I should order for a brushed aluminum flanged panel for a 72 x 60 B-Line enclosure?
Order Eaton B-Line AW7260AP. It is a single configuration, so there is no finish or size option to specify on the order, just the model number.
