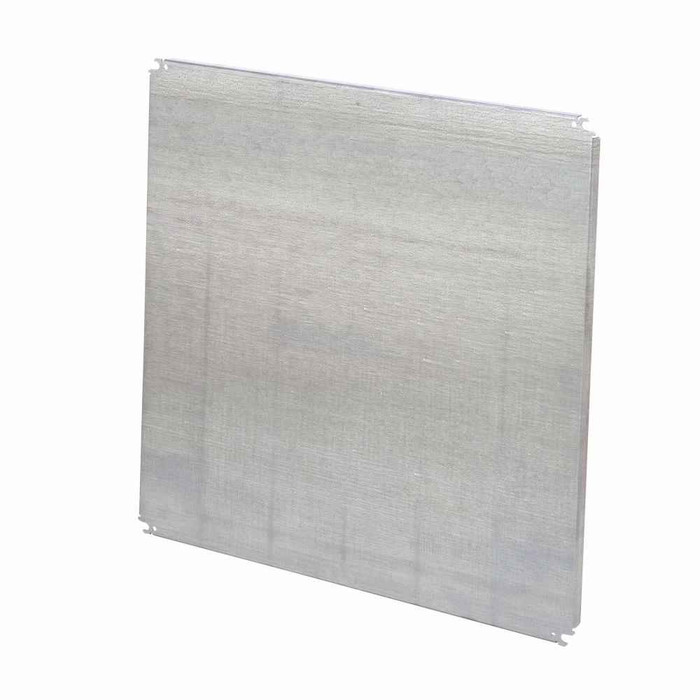

Eaton B-Line series mounting panels, Used with type 3R enclosures, 30" X 20" panels
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 28 in
- Product Length Depth:
- 18 in
- Product Weight:
- 14.282 lb
- Product Width:
- 18 in
- Special Features:
- Used with type 3R enclosures
- Department:
- Electrical
B-LINE 3020P – Frequently Asked Questions
1) What size enclosure does the B-Line 3020P mounting panel fit?
The Eaton B-Line 3020P panel is sized for a 30 inch by 20 inch type 3R enclosure. Mounting panels are cut smaller than the box so they clear the internal weld studs or mounting brackets, so match the panel to the enclosure's nominal 30 x 20 size rather than to the panel's own measurements.
2) Can I use the 3020P panel in an outdoor rainproof enclosure?
Yes. The 3020P is specified for use with type 3R enclosures, which are the rainproof/sleet-resistant outdoor ratings used for pole-mounted and exterior wall-mounted control and power gear. The panel is the interior mounting surface only, the 3R rating comes from the enclosure and its gasketing, not from the panel.
3) Do 3R enclosures come with a back panel, or do I order it separately?
Panels like the 3020P are ordered separately. Most NEMA 3R enclosures ship as an empty box with weld studs or mounting channel inside, and you add the steel back panel sized to the box, in this case a 30 x 20, to give yourself a surface for DIN rail, breakers, relays, terminal blocks, or a small drive. Plan the panel into the same order as the enclosure so the crew is not waiting on it.
4) What are the actual panel dimensions on the B-Line 3020P?
Stated dimensions are 28 in height, 18 in width, and 18 in length/depth, with a weight of 14.282 lb. That weight is worth knowing before you go up a ladder with it, a 30 x 20 steel back panel is a two-hand lift into a pole- or wall-mounted 3R box.
