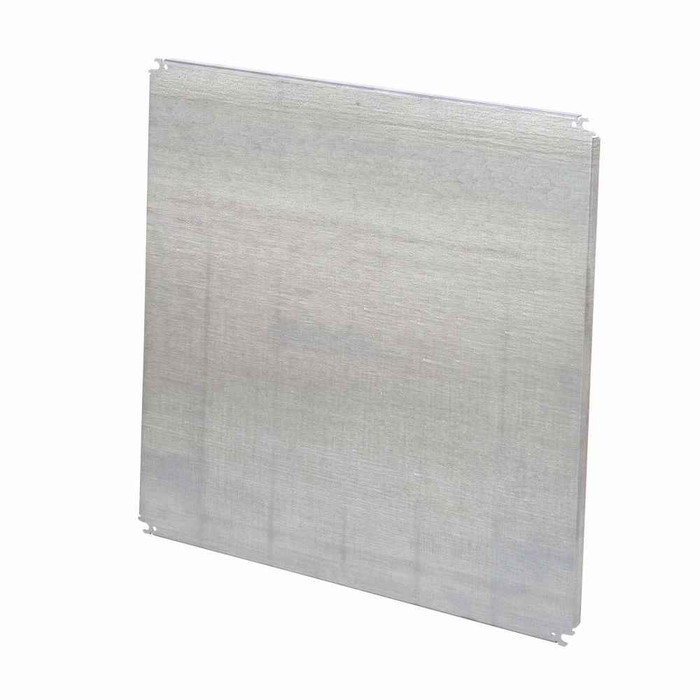

Eaton B-Line series mounting panels, Used with type 3R enclosures, 30" X 48" panels
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 46 in
- Product Length Depth:
- 28 in
- Product Weight:
- 36.674 lb
- Product Width:
- .75 in
- Special Features:
- Used with type 3R enclosures
- Department:
- Electrical
- Product Type:
- Type 4
- Product Details:
- Type 4
- Product Length:
- 28 in
B-LINE 3048P – Frequently Asked Questions
1) Will the B-Line 3048P mounting panel fit a 30 x 48 inch enclosure?
Yes. The Eaton B-Line 3048P is the back panel sized for a 30 x 48 inch enclosure. The panel itself measures 46 in by 28 in, which is the usual undersize so it clears the enclosure's internal mounting studs and drops flat against the back wall. Match it to the enclosure's nominal 30 x 48 size, not to the panel's own numbers.
2) Is this panel meant for outdoor enclosures?
The 3048P is specified for use with Type 3R enclosures, which are the rainproof outdoor boxes. The panel sits inside and is protected by the enclosure, so the enclosure's rating governs the environment, not the panel.
3) How thick is the B-Line 3048P panel, and will standoffs and screws clear it?
The panel is .75 in on its third dimension, so plan your mounting hardware and any device standoffs around that. It is a solid steel-type flat panel you drill and tap for your own DIN rail, breakers, or terminal blocks, not a pre-punched subpanel.
4) What does the 3048P mounting panel weigh for a one-person install?
36.674 lb. At that weight and a 30 x 48 inch footprint, it is a two-person lift into a wall-mounted enclosure in practice, particularly if you are loading it with gear on the bench first.
5) What part number do I order for a 30 x 48 B-Line back panel?
Order Eaton B-Line model 3048P. The number follows the enclosure size it serves: 30 by 48, P for panel.
