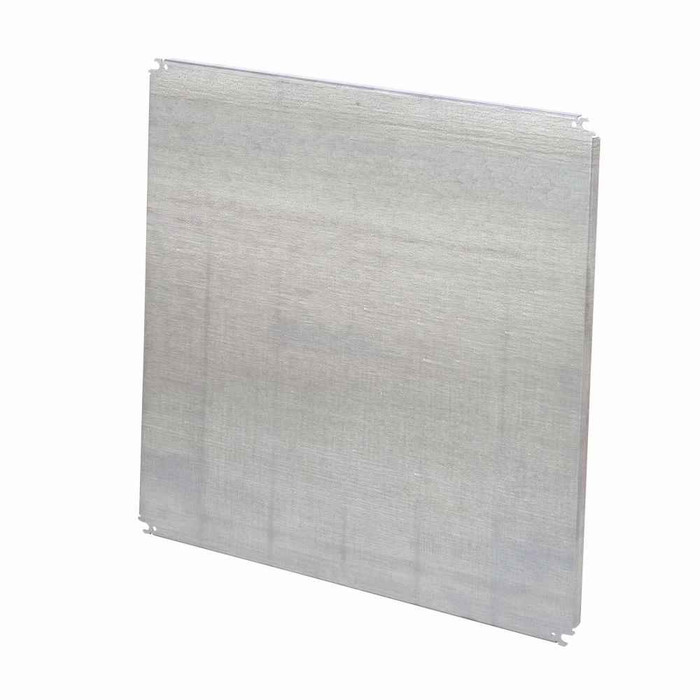

Eaton B-Line series mounting panels, Used with type 3R enclosures, 30" X 60" panels
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 58 in
- Product Length Depth:
- 28 in
- Product Weight:
- 46.055 lb
- Product Width:
- .75 in
- Special Features:
- Used with type 3R enclosures
- Department:
- Electrical
- Product Style:
- Slotted cover screw
B-LINE 3060P – Frequently Asked Questions
1) Can a 3R enclosure back panel like the 3060P be used outdoors?
Type 3R is the rainproof outdoor rating, so the enclosure this panel goes into is the one built for outdoor, rain-exposed service. The 3060P is the interior mounting panel for that enclosure, so it is protected by the box itself. If your enclosure is an indoor type 1, use the panel matched to that enclosure instead.
2) How heavy is the 30 x 60 B-Line mounting panel, and is it a one-man install?
It weighs 46.055 lb. At that weight and 58 inches long, plan on two people to lift it into a wall-mounted enclosure, especially if the box is already hung. Most installers load the panel before mounting the enclosure where the sequence allows it.
3) What is the manufacturer part number for the Eaton B-Line 30 x 60 inch 3R panel?
Order it as B-Line 3060P. That is the Eaton B-Line series designation for the 30 inch by 60 inch mounting panel used with type 3R enclosures.
4) Do I need a back panel at all, or can I mount breakers and terminals straight to the enclosure wall?
You want the panel. A 3R enclosure back wall is not drilled for equipment and punching it compromises the rainproof rating. The 3060P gives you a .75 in thick flat mounting surface inside the box that you can drill and tap freely for din rail, terminal blocks, contactors, or a disconnect, and it pulls out of the enclosure for bench assembly.
5) What kind of screws does the B-Line 3060P panel use?
Slotted cover screws are the fastener style called out for the 3060P. Worth knowing before you get to the enclosure with only a driver bit set, since a slotted blade is what will seat them.
