B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 42" X 30" enclosures, flan

The AW4230GP is sized for 42 inch by 30 inch Eaton B-Line enclosures. The panel itself measures 38 inches by 26.875 inches, so it sits inside the box on the mounting studs rather than matching the enclosure's outside dimensions. If your box is a different size, this panel will not line up on the studs.

The AW4230GP carries a NEMA 1 degree of protection, which is indoor, general purpose only, with no rating against water or dust ingress. For a washdown, wet location or outdoor box you need a panel matched to a NEMA 4, 4X or 12 enclosure instead. That said, the panel mounts inside the box, so the enclosure's own rating is what protects the equipment.

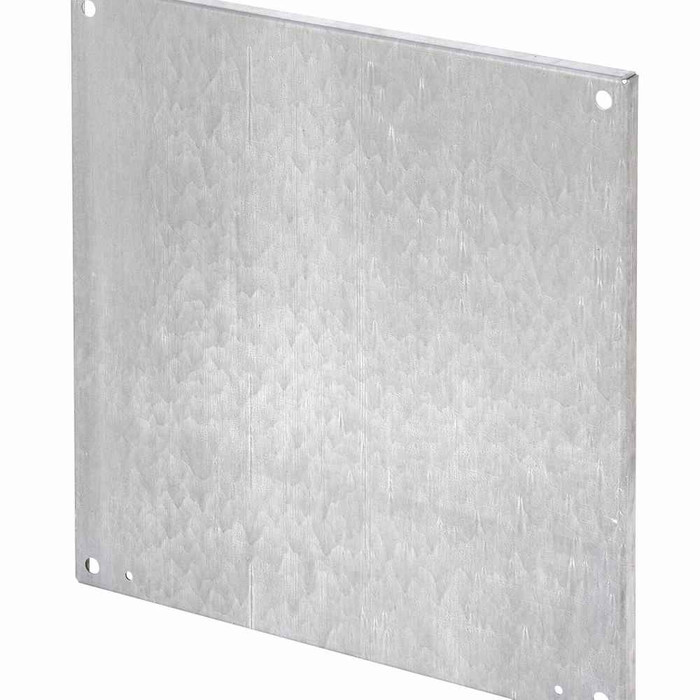

It is a NEMA flanged panel, not a flat plate. The flange adds rigidity and sets the mounting depth off the back of the enclosure, which matters when you are stacking DIN rail, wireway and breakers and need the components to sit at a consistent plane.

The AW4230GP is CSA C22.2 certified, which is the Canadian standard referenced for electrical enclosure components, so it can be specified on work north of the border as well as in the US.

Order Eaton B-Line model AW4230GP. That single MPN covers the white powder coated galvanized steel flanged panel for 42 inch by 30 inch NEMA 1 enclosures; there are no finish or size options to select against it.

Galvanized steel, with a smooth brushed surface and a white powder coated finish. White is the standard interior panel color for electrical enclosures because it reflects light and makes wire labeling and component markings easier to read inside the box.

It weighs 31.497 lb. At 38 by 26.875 inches and that weight, it is awkward rather than heavy, and most electricians set a panel this size with a second person or with the enclosure laid on its back so the panel drops onto the studs instead of being held up against them.
