B-Line Eaton series panels and...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,259.41

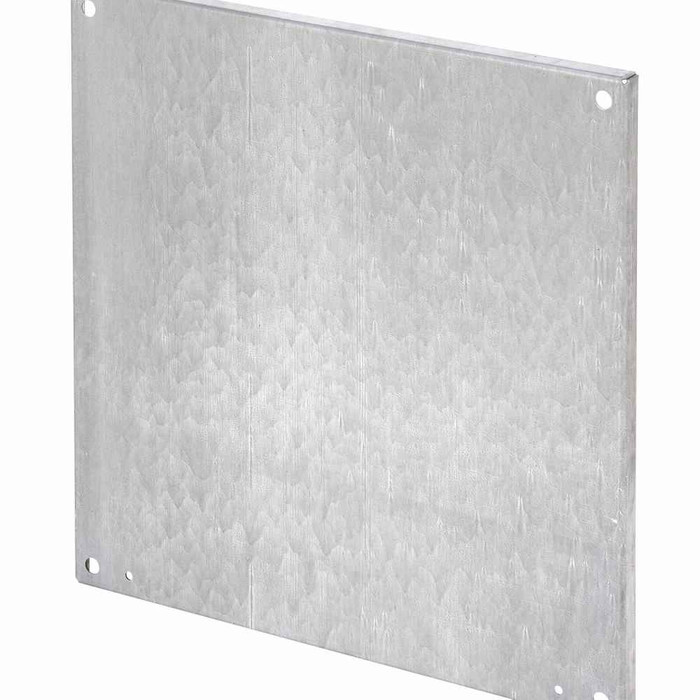

B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 48" X 30" enclosures, flan

B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 48" X 30" enclosures, flan

(No reviews yet) Write a Review

Model: AW4830GP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,259.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 48" X 30" enclosures, NEMA flanged panels

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Degree Of Protection:
NEMA 1
Finish Color:
Brushed
Product Category:
Panels & panel accessories
Product Height:
44.87 in
Product Length Depth:
44.87 in
Product Weight:
36.208 lb
Product Width:
26.875 in
Special Features:
Fits 48" X 30" enclosures
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Flat panel for fiberglass enclosures
Product Details:
Flat panel for fiberglass enclosures
Product Material:
Galvanized steel

B-LINE AW4830GP – Frequently Asked Questions

1) What size enclosure does the B-Line AW4830GP panel fit?
The Eaton B-Line AW4830GP flanged panel is made for 48 x 30 inch enclosures. The panel itself measures 44.87 inches by 26.875 inches, so it sits inside that box footprint with room for the flange and mounting. If your enclosure is a different size, this panel won't line up.
2) Is this B-Line panel UL Listed, and what NEMA rating does it carry?
The AW4830GP is UL Listed and rated NEMA 1, which is indoor, general-purpose protection against incidental contact and falling dirt. NEMA 1 is not a washdown or outdoor rating, so if the enclosure it's going into is rated 4, 4X, or 12, specify a panel matched to that enclosure's rating instead.
3) Is the AW4830GP panel meant for fiberglass enclosures or metal ones?
It's a flat panel for fiberglass enclosures. That's how Eaton B-Line lists the AW4830GP, so if you're outfitting a steel or stainless box, check that the panel mounting arrangement in your enclosure matches a flanged fiberglass-style panel before you order.
4) Will a galvanized steel back panel hold heavy gear like contactors and breakers?
Yes. The AW4830GP is galvanized steel, not aluminum or composite, and the panel alone weighs 36.208 lb, which tells you the gauge is substantial. Galvanized steel is the standard choice when you're through-drilling and tapping for DIN rail, contactors, terminal blocks, or breaker bases inside a control enclosure.
5) Does the AW4830GP come with mounting hardware or standoffs?
What's supplied is the flanged galvanized steel panel itself. Panel mounting hardware, standoffs, and any DIN rail or wire duct you intend to lay out on it are separate items, so budget those into the same order if the enclosure isn't already fitted for the panel.
6) How much usable mounting area do I get on this panel for laying out a control circuit?
Usable field is 44.87 by 26.875 inches, roughly 8.4 square feet, which is enough for multiple DIN rails with wire duct between them plus a disconnect and control transformer. Lay out your largest components against the 26.875 inch dimension first, since that's the tighter of the two.
7) Is the AW4830GP painted white like most subpanels?
No paint on this one. The finish is a smooth brushed galvanized steel surface, so you get the bare zinc look rather than a white or gray powder coat. If your spec or drawing calls for a painted white subpanel for visibility inside the box, this isn't the right finish.
