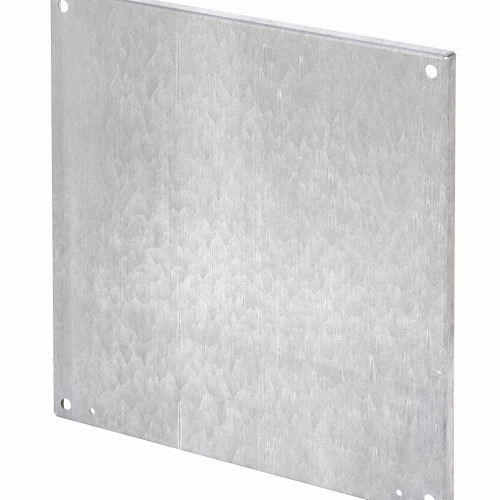

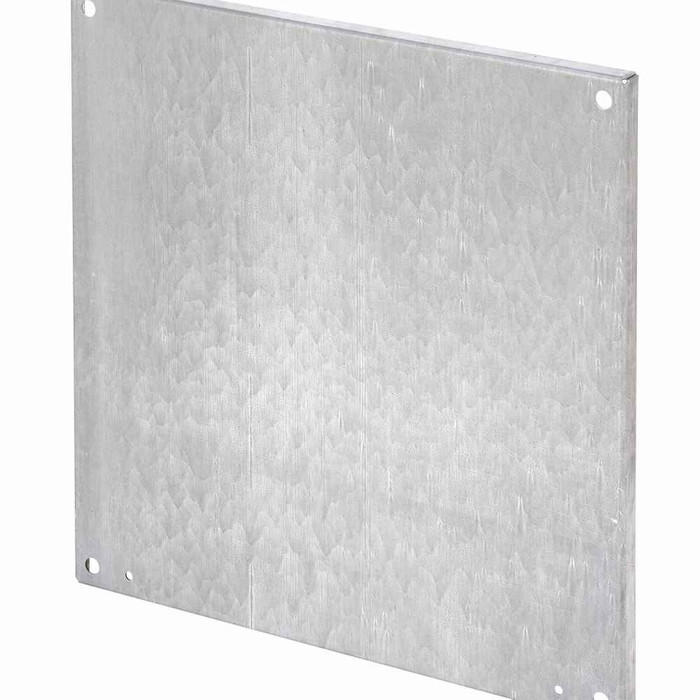

B-Line Eaton series panels and...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$866.16
B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 30" enclosures, flan

B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 30" enclosures, flan

(No reviews yet) Write a Review

Model: AW3030GP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$866.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 30" enclosures, NEMA flanged panels

Manufacturer Resources

Product Specs

Certifications:
NEMA
Degree Of Protection:
NEMA 1
Finish Color:
Brushed
Product Category:
Panels & panel accessories
Product Height:
27 in
Product Length Depth:
27 in
Product Weight:
32.484 lb
Product Width:
21 in
Special Features:
Fits 30" X 30" enclosures
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Flat panel for fiberglass enclosures
Product Details:
Flat panel for fiberglass enclosures
Product Material:
Galvanized steel

B-LINE AW3030GP – Frequently Asked Questions

1) What size enclosure does the Eaton B-Line AW3030GP panel fit?
The AW3030GP back panel is made for 30 x 30 inch enclosures. It is a flat panel for fiberglass enclosures, so match it to a 30 x 30 fiberglass box rather than trying to force it into a different cabinet size.
2) What are the actual panel dimensions on the B-Line AW3030GP?
Stated dimensions are 27 in height, 27 in length/depth and 21 in width. The panel is smaller than the 30 x 30 enclosure it mounts in, which is normal for a back panel since it sits inboard of the enclosure walls on the mounting studs.
3) Is the AW3030GP panel steel or aluminum, and will it corrode in a damp room?
It is galvanized steel with a smooth brushed finish. The zinc coating gives it reasonable resistance to humidity and condensation inside an enclosure, but it is not stainless, so for washdown, coastal or chemical exposure look at a stainless or composite back panel instead.
4) Can I use this B-Line panel in a NEMA 4X outdoor enclosure?
The AW3030GP is rated NEMA 1, an indoor general purpose designation. The enclosure itself sets the environmental rating, so a back panel in a 4X box does not downgrade the box, but this galvanized steel panel is intended for dry indoor service and will not hold up the way a 4X-appropriate panel would in a wet or corrosive location.
5) Does the AW3030GP come drilled for my components?
It is a flat, undrilled back panel. You lay out and drill or tap it for whatever DIN rail, wireway, contactors or terminal blocks the job calls for. Galvanized steel drills and taps easily on the bench, which is the usual way it gets prepped before it goes in the enclosure.
6) What is the part number to order the 30 x 30 B-Line galvanized back panel?
Order Eaton B-Line model AW3030GP. That is the single orderable configuration: galvanized steel, brushed finish, flat panel sized for 30 x 30 inch fiberglass enclosures.
