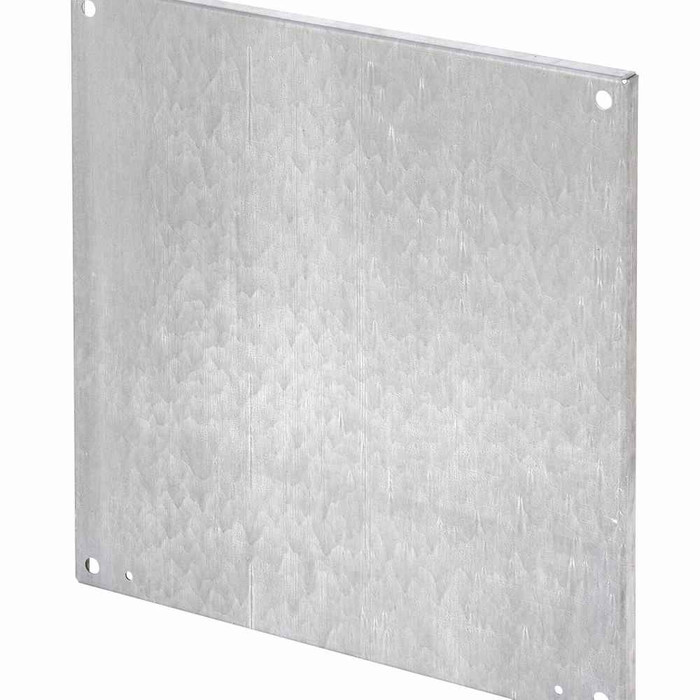

B-Line Eaton series panels and...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$439.01
B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 16" enclosures, flan

B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 16" enclosures, flan

(No reviews yet) Write a Review

Model: AW3016GP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$439.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 16" enclosures, NEMA flanged panels

Manufacturer Resources

Product Specs

Certifications:
NEMA
Degree Of Protection:
NEMA 1
Finish Color:
White powder coated
Product Category:
Panels & panel accessories
Product Height:
27 in
Product Length Depth:
27 in
Product Weight:
11.098 lb
Product Width:
12.875 in
Special Features:
Fits 30" X 16" enclosures
Department:
Electrical
Product Style:
Aluminum panel
Product Material:
Galvanized steel

B-LINE AW3016GP – Frequently Asked Questions

1) What size enclosure does the Eaton B-Line AW3016GP panel fit?
The AW3016GP flanged panel is sized for 30 inch by 16 inch enclosures. It is a back panel for the enclosure interior, not a standalone box, so the enclosure has to match that footprint or the panel mounting studs will not line up.
2) Is the AW3016GP panel rated for outdoor or washdown use?
No. This B-Line panel is a NEMA 1 item, which is indoor general purpose only, no protection against water or windblown dust. For an outdoor or washdown location you need an enclosure and panel rated NEMA 3R, 4 or 4X instead.
3) Does the AW3016GP come with the enclosure, or is it just the back panel?
Just the panel. The AW3016GP is a panel and panel accessory item that mounts inside a 30 x 16 inch NEMA 1 enclosure you supply separately, so order the box, and any mounting hardware it does not already carry, alongside it.
4) What are the stated dimensions of the B-Line AW3016GP flanged panel?
The published figures are 27 in height, 27 in length/depth and 12.875 in width. Use the 30 x 16 inch enclosure fit as the controlling number when you are matching it to a box.
5) What part number do I order for a 30 x 16 B-Line flanged panel?
Order Eaton B-Line AW3016GP. That is the manufacturer part number for the NEMA flanged, white powder coated galvanized steel panel sized to 30 by 16 inch enclosures.
6) How heavy is the AW3016GP panel for a one-man install?
About 11.098 lb. That is a one-person lift into the enclosure, though on a deep box it is easier with a second set of hands to start the mounting hardware.
