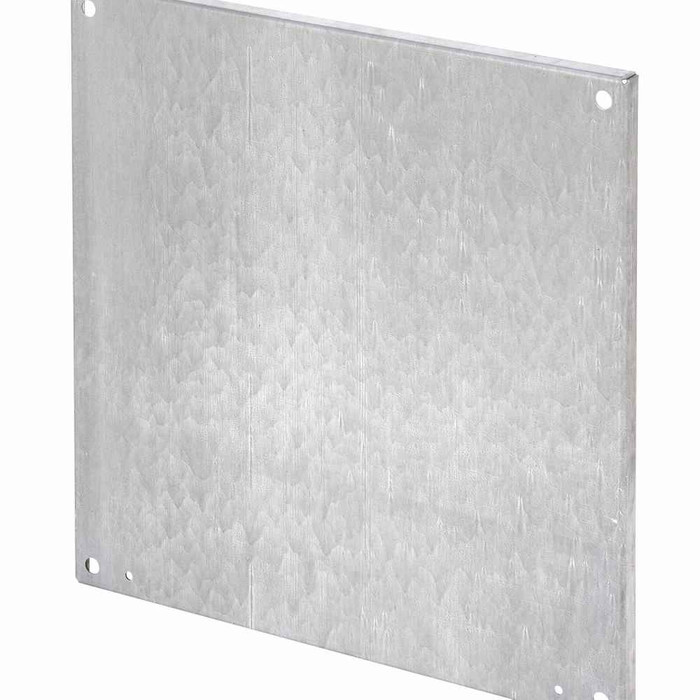

B-Line Eaton series panels and...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$617.00
B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 24" enclosures, flan

B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 24" enclosures, flan

(No reviews yet) Write a Review

Model: AW3024GP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$617.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 30" X 24" enclosures, NEMA flanged panels

Manufacturer Resources

Product Specs

Certifications:
NEMA
Degree Of Protection:
NEMA 1
Finish Color:
White powder coated
Product Category:
Panels & panel accessories
Product Height:
27 in
Product Length Depth:
27 in
Product Weight:
17.379 lb
Product Width:
21 in
Special Features:
Fits 30" X 24" enclosures
Department:
Electrical
Product Style:
Aluminum panel
Product Material:
Galvanized steel
Product Length:
27 in
Product Length:
27 in

B-LINE AW3024GP – Frequently Asked Questions

1) What size enclosure does the B-Line AW3024GP panel fit?
The AW3024GP flanged panel is made for 30 x 24 inch enclosures. The panel itself measures 27 x 21 inches, which is the usable mounting area once it sits inside the box. If your enclosure is a different nominal size, this panel will not line up with the mounting studs.
2) Is the AW3024GP back panel rated for outdoor or washdown enclosures?
No. The AW3024GP is a NEMA 1 panel, which is indoor, general purpose protection against incidental contact and falling dirt. It is not a wet location or washdown part. For an outdoor or hosedown enclosure you want a panel matched to a NEMA 3R, 4 or 4X box instead.
3) What is the B-Line AW3024GP made of and how is it finished?
Galvanized steel with a white powder coated finish. The white face is what electricians want inside a control enclosure, it makes wire runs and component labels easy to read under a work light.
4) What is a flanged back panel used for in a control enclosure?
It is the mounting substrate, not part of the enclosure shell. Components such as DIN rail, terminal blocks, contactors and drives bolt to the panel, and the panel then mounts inside the box on the enclosure's collar studs. The flange on the AW3024GP stands the mounting surface off the enclosure back wall, giving wire clearance behind the panel. It provides no environmental protection on its own, the NEMA 1 enclosure does that.
5) Do I order the panel separately from the enclosure?
Yes, back panels are sold on their own. The AW3024GP covers the panel only, so the 30 x 24 enclosure, any mounting hardware kit, and DIN rail or wireway you plan to lay out on the panel are separate line items.
