B-Line Eaton series panels and panel accessories, 1, Smooth brushed, Galvanized steel, Panels and panel accessories, Fits 20" X 24" enclosures, flan

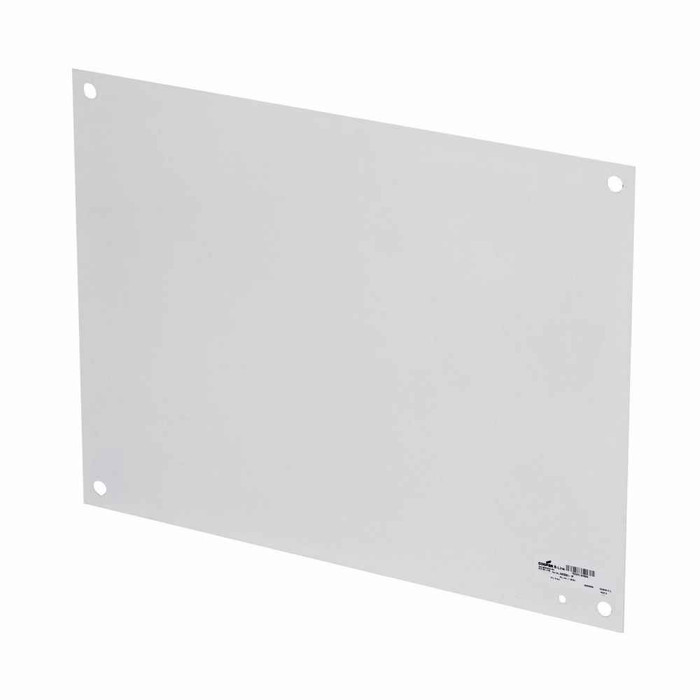

The Eaton B-Line AW2424GP panel is sized for 20 inch by 24 inch enclosures. The panel itself measures 21 inches in height, 20.875 inches in width, and the length/depth dimension is also listed at 21 inches. If your box is a different cabinet size, this panel is not the one for it, since panels are cut to a specific enclosure footprint and do not float in an oversized box.

No. The AW2424GP carries a NEMA 1 degree of protection, which is indoor general purpose only, giving protection against incidental contact and falling dirt. For wet, outdoor, or hosedown locations you need a panel and enclosure rated for those conditions, not a NEMA 1 assembly.

It is a NEMA flanged panel. The flange gives the panel a formed edge rather than a flat sheet, which sets the mounting standoff inside the enclosure. If your drawing calls for a plain flat sub-panel, this is not the same part.

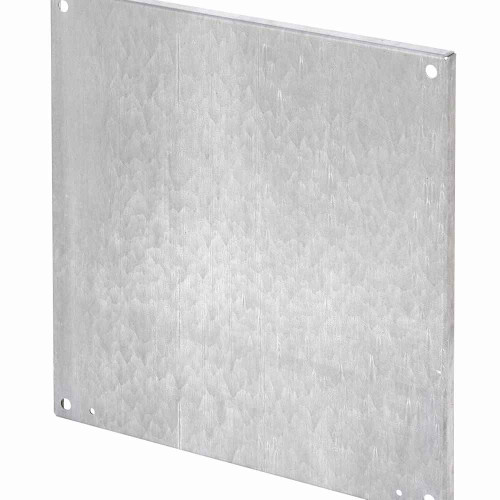

The panel is galvanized steel with a smooth brushed galvanized surface, listed under a white powder coated finish color attribute. Galvanized steel is conductive, so devices bolted directly to the bare panel face make metal to metal contact. Where you need a defined ground path, run a bonding conductor rather than relying on mounting screws alone.

Order Eaton B-Line model AW2424GP. That is the manufacturer part number for the galvanized steel flanged panel sized to 20 inch by 24 inch enclosures, and it is the only model in this configuration.

This is the panel only, catalogued as a panel and panel accessory item. The enclosure is a separate purchase, and you mount the panel to the studs or clips already in that box. Confirm your enclosure has the 20 x 24 panel mounting provisions before ordering.
