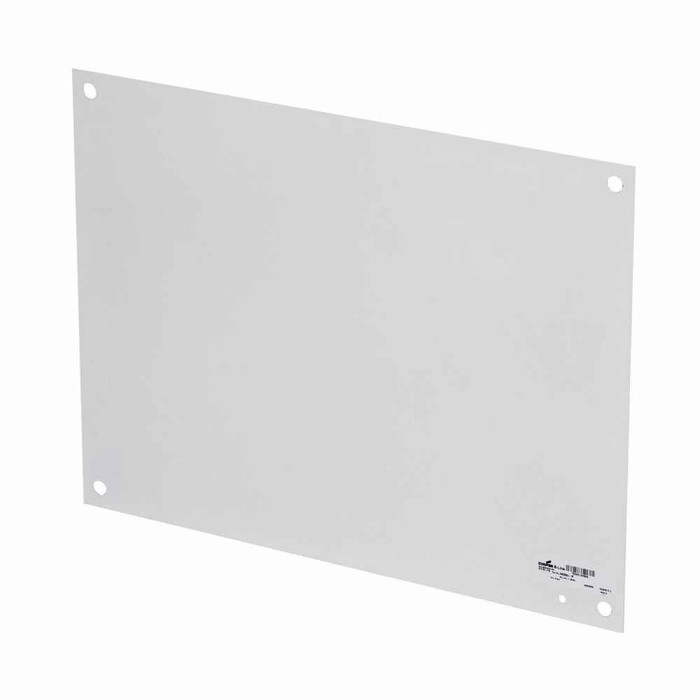

B-Line Eaton series panels and panel accessories, 12, White polyester powder coated, Aluminum, JIC and small panels

The AW1612AP is a swing-out style aluminum panel sized for a 16 x 12 enclosure, and its own stated dimensions are 14.87 in height, 12 in width and 9 in length/depth. Measure your enclosure's interior mounting studs against those numbers before ordering, since panel fit is driven by the box, not the door.

Yes. The AW1612AP aluminum panel is specified for NEMA 12 duty, the dust-tight and drip-tight rating used for indoor industrial control enclosures, and it carries a UL Listing. That makes it the correct accessory for a NEMA 12 JIC or small enclosure rather than a washdown or outdoor box.

It is aluminum with a white polyester powder coat. Aluminum keeps the weight down (1.156 lb) and resists corrosion, but the powder coating is an insulator, so if you are relying on the panel for a bonding path you need to scrape or use paint-piercing hardware, or run a dedicated ground wire to your ground bar.

This is the panel itself, an aluminum subpanel for a JIC or small enclosure. Mounting hardware is a function of the enclosure you are fitting it into, so confirm your box already has its panel studs, clip kit or brackets in place. Plan on supplying your own DIN rail, wire duct and component fasteners as well, since none of that is part of the panel.

The white polyester powder coat reflects light inside the enclosure, which makes wire colors and component labels much easier to read during troubleshooting in a dim mechanical room. It also gives the aluminum a finished, corrosion-resistant surface. Bare or galvanized panels are picked when you want an uncoated metal surface for bonding instead.

1.156 lb, so yes, this is a one-hand panel. That is the practical advantage of aluminum over a steel subpanel of the same footprint when you are working overhead or inside a wall-mounted box that is already hung.
